| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JF-XRO-1000L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 3-5weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: | JF-XRO-1000L | Desalination Rate: | 99.5% |
|---|---|---|---|
| Designed Water Input: | 2000L/h | Productivity: | 1000L/h |
| Number Of Membranes: | 4 | Membrane Size: | 4040 |
| Leadtime: | 2-5 Weeks | Membrane Housing: | SS/FRP |
| Highlight: | Containerized Reverse Osmosis System,Drinking Water Purification Plant,1000LPH Reverse Osmosis System |
||

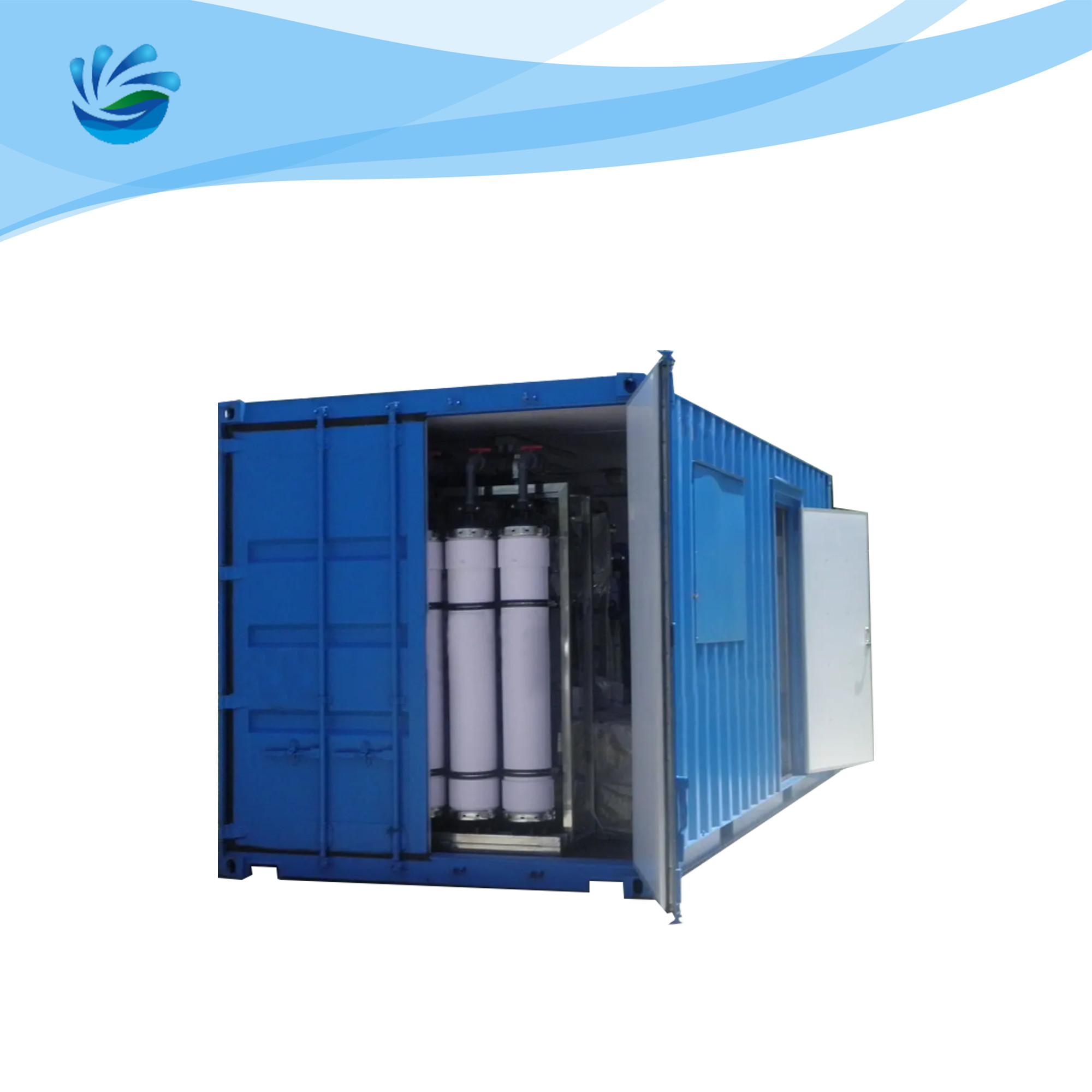

Containerized Reverse Osmosis System Water Purification Plant
Product Description of Containerized Water Treatment Plant
The water treatment equipment fit in container, this will reduce the operational and management cost.
The container-shaped water treatment equipment has been built before delivery and can be applied to field operations and disaster relief emergency case. Containerized water Treatment Plant is widely applied to drinking water supply. Mobile water treatment plant is reliable and cost effective, it service to meet the problem of water crisis.
The reverse osmosis water purification system uses membrane separation technology to remove charged ions, inorganic substances, colloidal particles, bacteria and organic substances in water. One-time removal of more than 98% of ions, organic matter and 100% of microorganisms in raw water, as well as a variety of dissolved and suspended chemical substances and biological substances (mainly bacteria) in water, and to asbestos, a variety of chemical substances that produce taste, color and odor, Particulate, total dissolved solids, turbidity and radium are also effective for industrial processes and drinking water production.
Technical Specification of Containerized Water Treatment Plant
| Model | JF-XRO-1000L |
| Host Size | 1000x600x1600mm (can be customized) |
| Function | Producing drinking water |
| Power | 2.2KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 50% |
| Designed Water Inlet | 2000L/h |
| Outlet Flow | 1000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 4040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 4 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | SS/FRP |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
| Leadtime | 2-5 weeks |
Workflow Chart of Containerized Water Treatment Plant
What's inside of the Container?
Activated carbon filter
Pressure filter plant
Softening plant with brine tanks
Dosing stations
Bag filters
Double-pass reverse osmosis plant
Dealkalization plant
Booster pumps
Control cabinet
Application of Containerized Water Treatment Plant
The Containerized water treatment equipment widely used in Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms,Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Chemical factory,Office building.
The ideal applications for a include industrial mining applications, military base camps, disaster relief, groundwater remediation, and construction facilities, all of which can either be permanent or mobile solutions.
Features of Containerized Water Treatment Plant
The reaction rate is fast and the processing time is short.
Simple process, long service time, low operating cost, the operation and maintenance are convenient, and the treatment effect is stable.
The removal rate of chromaticity and COD is high, and the biodegradability of RO concentrated water is improved.
Stable water producing quality;
Free of Acid-base regeneration;
Save more water from backwashing and cleaning;
No extra space needed;
Reduction on operating and maintenance costs;
Easy installtion and mainteance.
Good Performance Mature technology in Water Treatment industrial for many decades;
High effiency Multiple filtering process can guarantee high quality of the water;
Longer lifespan Key parts are made by durable materials, it has longer lifespan to combat with harsh environment;
Easy Installation and commissioning The containerized Water Treatment Plant can be installed before delivery;
Quick Restoring The standard parts can be replaced if malfunction occurs, the system can be restarted and restored very quickly;
Tailor-made Solutions Customized features can be added per customer's request.
FAQ
Q: How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
A: We can design and deliver our systems in insulated 20 ft or 40 ft containers. Containerization includes all piping and fittings connected, all cables and wires connected to instrument and control cabinet. This is a “plug and play” unit supply.
Q: Benefits of our containerized equipment?
A: Engineered to reduce overall project costs, including labor related fees;Safe and easy installation.
Q: What’s your warranty?
A: Jufu offers 1 year warranty for the products.
The product itself can work for 5 years with proper use and maintenance.
