| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JF-XRO-6000L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 2-4weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Model: | JF-XRO-6000L | Productivity: | 6000L/h |
|---|---|---|---|
| Tank MateriaStainless Steell: | SS/FRP | Brand Name: | Jufu |
| Warranty: | 1 Year | Power: | 220/380/415V |
| Membrane: | Optional | Desalination Rate: | ≥99.5% |
| Membrane Housing: | FRP | Nbr Of Membranes: | 6 |
| High Light: | 6000LPH containerised water treatment plant,ro system water treatment equipment,RO containerised water treatment plant |
||

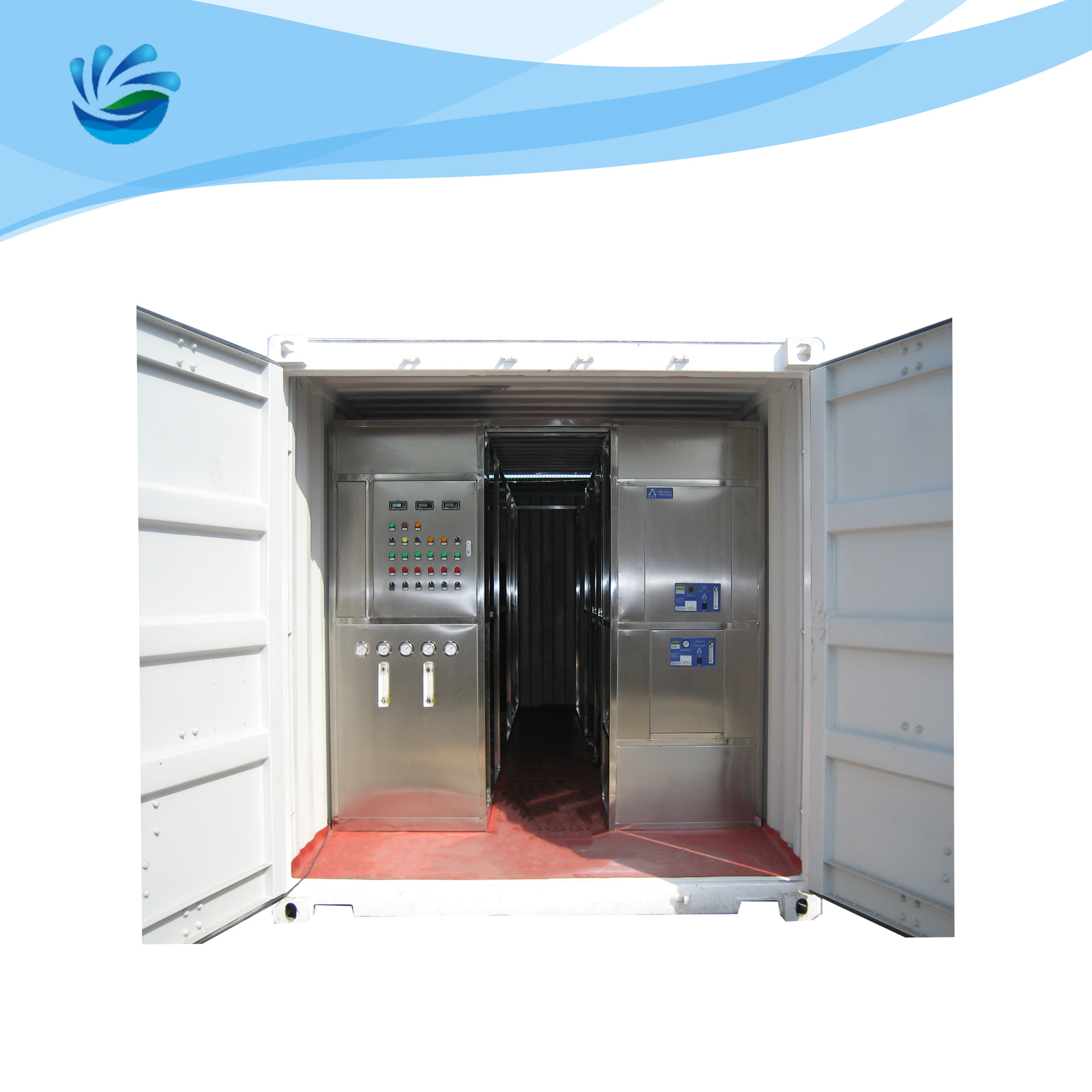

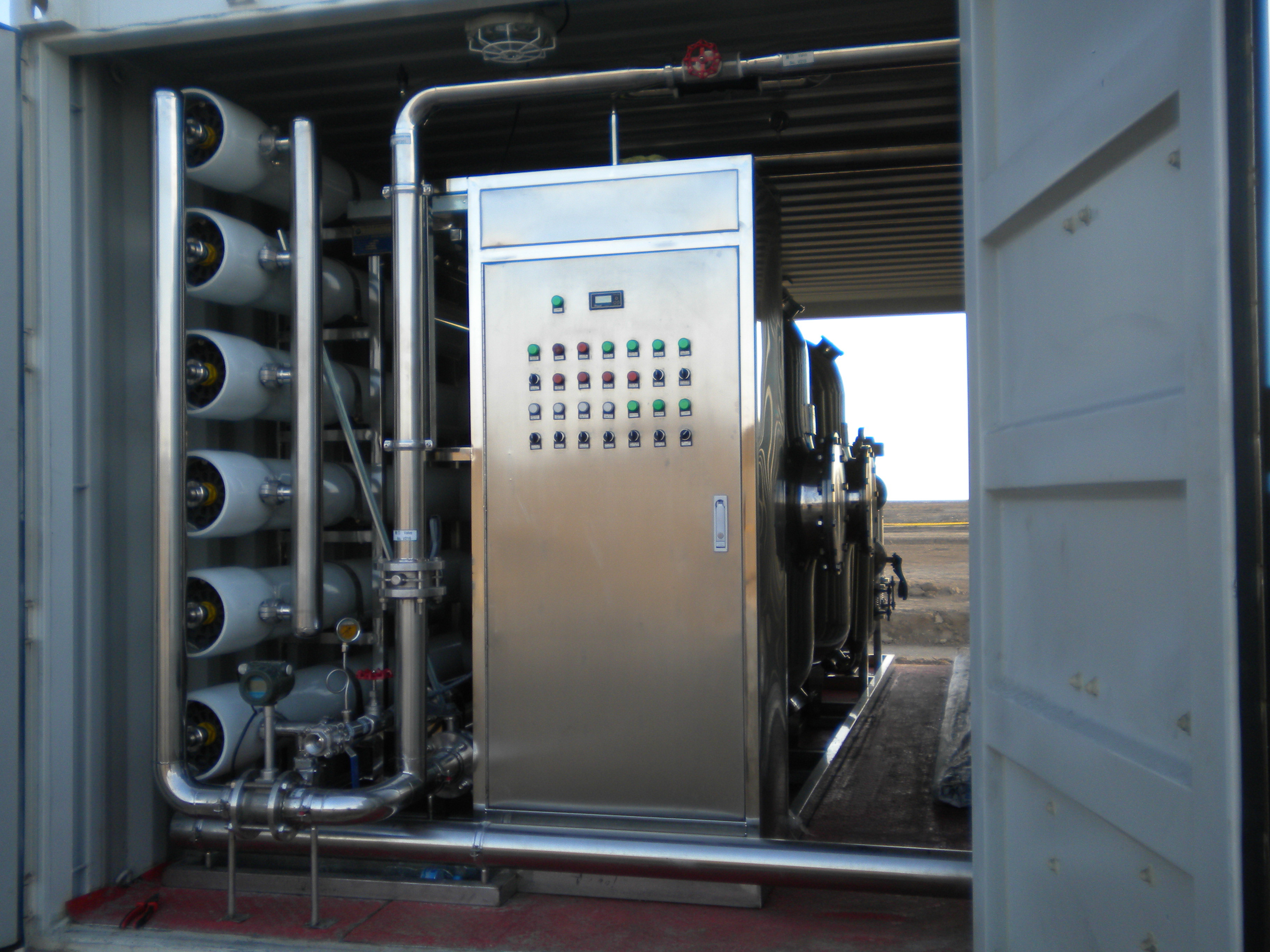

Containerized Reverse Osmosis Desalination Water Treatment Plant
Product Description of Containerized Water Treatment System
The most important benefits of any containerized water treatment plant is the reduced site installation requirements.
Container-based water treatment systems arrive completely shop fabricated with all interconnecting piping, wiring, and testing complete before the system arrives to the jobsite.
The mobile treatment units perform primary water treatment steps. This means that the water still needs a follow-up treatment after it has left the units. The follow-up treatment is determined by the function that the water will have. When water is purified in a mobile treatment unit it does not need preliminary treatment.
Technical Parameter of Containerized Water Treatment System
| Model | JF-XRO-6000L |
| Host Size | 3000x800x1600mm (can be customized) |
| Power | 5.5KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 60% |
| Designed Water Inlet | 10000L/h |
| Outlet Flow | 6000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 8040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 6 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | FRP |
| Number of Membrane housing | 3 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
Workflow Chart of Containerized Water Treatment System
Advantages of Containerized Water Treatment System
The Containerized water treatment plant has high desalination and recovery rates. It has compact inner structure can easily operate and install within a small space. Containerized water treatment plants have several advantages over built-in plant room installations, very useful for construction sites, remote area water supplies.
1. High desalination and recovery rates;
2. Simple operation;
3. Compact structure, saving installation space;
4. High efficiency and low energy consumption;
5. No secondary pollution, low operating cost.
Application of Containerized Water Treatment System
The containerized water treatment plant can be used to slove the water crisis especially for emergency cases.
You can use it as a water supply source for:
1.Mobile Water Plants
2.Hospital Unit Drinking Water Use
3.Restaurant Drinking Water Use
4.Construction Site Drinking Water Use
5.Agricultural Water Use
FAQ:
Q: What kind of information need to be provided for product selection?
A: What ‘s the raw source of your water? If possible, please provide Water Analysis Report.
B: What’s your request on the output capacity of the equipment?
C: What’s the application for the project?
D: What’s the piping standard applied in your local market?
E: Do you need on-site installation guidance?
Q: What is containerization of water treatment equipment?
A: We can design and deliver our systems in insulated 20 ft or 40 ft containers. Containerization includes all piping and fittings connected, all cables and wires connected to instrument and control cabinet. This is a “plug and play” unit supply.
Q: What's the advantages of containerized water treatment plants?
A: Containerized water treatment plants will have water treatment equipment preinstalled in the container. Less operational time and cost.
