| Place of Origin: | China |
|---|---|
| Brand Name: | JuFu |
| Certification: | ISO9001 |
| Model Number: | JFRO-1000L |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Item: | Brackish Water Desalination System | Raw Water: | Well Water, Underground Water, Brackish Water... |
|---|---|---|---|
| Production Capacity: | 1000L Per Hour | Desalination Rate: | ≥99.5% |
| Function: | Remove TDS/TSS All Kinds Of Impurities | Material: | FRP, Stainless Steel |
| Ro Membrane: | Dow/Toray/Hydraunics/ Vontron... | Valve: | Automatic / Manual |
| Warranty: | 1 Year | Certification: | ISO9001 |
| High Light: | 1000LPH Brackish Water Treatment Plant,High Salty Water Purifier System,4040 Brackish Water Treatment Plant |
||

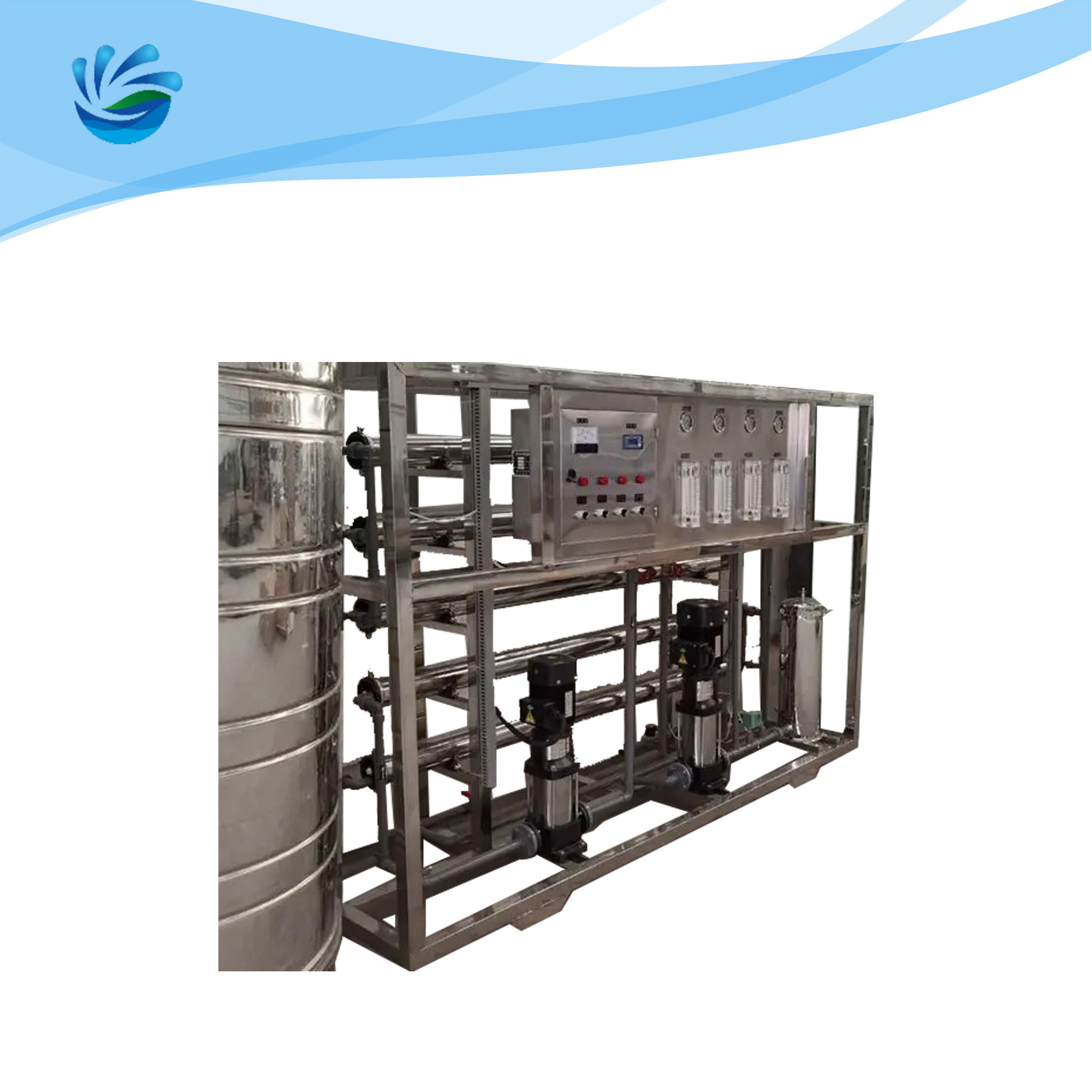

1000LPH RO Brackish Water Treatment Plant High Salty Water Purifier
What is Reverse Osmosis(RO)?
Reverse osmosis (RO) is a water purification technology that uses semi-permeable membranes to remove ions, molecules and larger particles from drinking water, resulting in purified water. In Reverse osmosis, an applied pressure is used to overcome the osmotic pressure and push the water from high concentration of contaminants to low concentration of contaminants. Our brackish reverse osmosis water system can treat high salt underground well water with TDS(total dissolved solid) from 2000ppm up to 20000PPM. And make the brackish water become domestic consumption line water for resident, irrigating water for algricultrure, industry water supplier, commercial bottle water company ect., which can solve the problem for country shortage in potable water.
Product Technical Specifications of Brackish Water Desalination System
| Model | JFRO-1000L |
| Host Size | 1000x600x1600mm (can be customized) |
| Power | 2.2KW |
| Power Supply | 380V50Hz |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 50% |
| Designed Water Inlet | 2000L/h |
| Outlet Flow | 1000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 4040 |
| Membrane Elements | DOW /Hydranautics/Toray/ Vontron (Optional) |
| Number of Membranes | 4 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | SS/FRP(Optional) |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
Working Process of Brackish Water Desalination System
raw water tank(buyer provided)→ raw water pump→quartz sand filter →activated carbon filter→anti-scale dosing system→security filter→high pressure pump→ro system→pure water tank(buyer provided)+UV sterilizer(ozone generator) +water supply point
How Does Reverse Osmosis Remove Contaminants?
Reverse Osmosis water filtration process is simple and straightforward. It is purify water by forcing pressurized water through a very fine, plastic membrane. This is a process in which dissolved inorganic solids are removed from a solution. This process differs from standard filtration where impurities are collected within the filter media. The reverse osmosis process pushes water through a series of filters and ultimately the clean water goes to the holding tank, and the contaminants are flushed down the drain.
How Do I know What Size Unit to Buy?
An important factor related to size is how much water a reverse osmosis system can filter.
The product specs for different systems will provide information on how many liters a day a system can handle. For example, one type of unit produces 5000 liters of treated water per day under its design conditions. You should examine water conditions and buy a large rated unit than needed.
Material of Reverse Osmosis System?
We have different materials. 1. Fiber glass(FRP) filter + U-PVC pipe; 2. Stainless steel filter + U-PVC pipe. 3. Total stainless steel.
You can choose the right material according to your needs
Jufu's Strength:
1. Focus on water treatment equipment for 14 years, the quality is trustworthy;
2. The products have passed the ISO9001 quality system standard production;
3. Provide free water treatment solutions;
4. On-site installation service can be provided;
5. Provide lifelong after-sales service.
Some Details Show to You Referance
Applications
