| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-3T |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Item: | Brackish Water Desalination System | Desalination Rate: | ≥99.5% |
|---|---|---|---|
| Function: | Remove TDS/TSS All Kinds Of Impurities | Membranes Brand: | Dow/Toray/Hydraunics/ Vontron... |
| RO Frame: | SUS304 | Raw Water: | Well Water, Underground Water, Brackish Water... |
| Production Capacity: | 3T Per Hour | Valve: | Automatic / Manual |
| Certification: | ISO9001 | Warranty: | 1 Year |
| High Light: | 3TPH Brackish Water Desalination System,RO Brackish Water Desalination Plant,Brackish Water Desalination System Sand Filter |
||

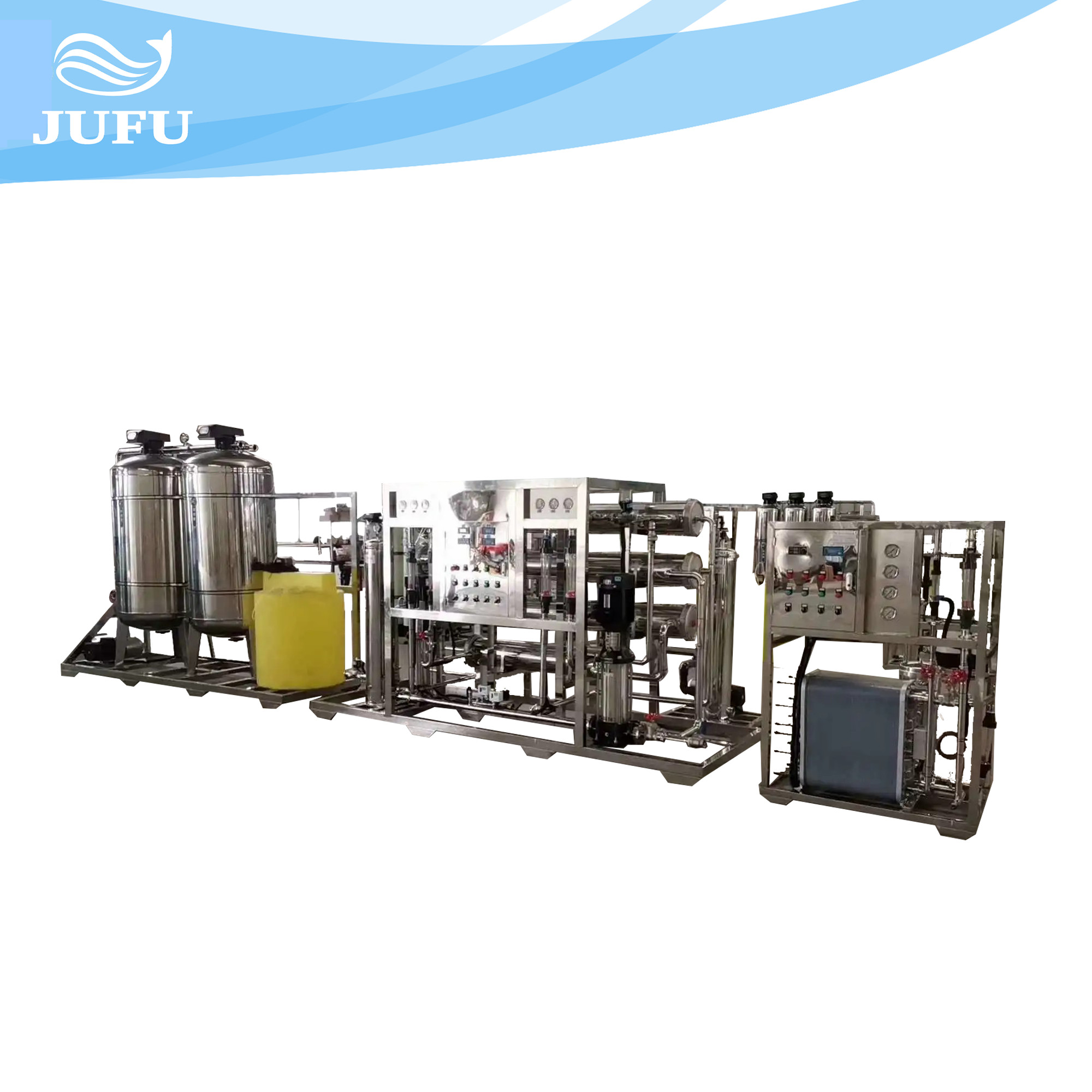

Industrial RO System 3TPH Brackish Water Desalination Plant Sand Filter
What is Reverse Osmosis(RO)?
Reverse osmosis (RO) is a water purification technology that uses semi-permeable membranes to remove ions, molecules and larger particles from drinking water, resulting in purified water. In Reverse osmosis, an applied pressure is used to overcome the osmotic pressure and push the water from high concentration of contaminants to low concentration of contaminants. Our brackish reverse osmosis water system can treat high salt underground well water with TDS(total dissolved solid) from 2000ppm up to 20000PPM. And make the brackish water become domestic consumption line water for resident, irrigating water for algricultrure, industry water supplier, commercial bottle water company ect., which can solve the problem for country shortage in potable water.
Similar Models of Brackish Water Desalination System
| Model | Outlet Flow (m³/h) |
Operating Pressure (MPa) |
Inlet Size (mm) |
Membrane Size | Nbr of Membrane | Recovery Rate | Power (KW) |
| JFRO-500L | 0.5 | 0.8-1.2 | DN20 | 4040 | 2 | 0.5 | 1.5 |
| JFRO-1000L | 1 | 0.8-1.2 | DN25 | 4040 | 4 | 0.5 | 2.2 |
| JFRO-2000L | 2 | 0.8-1.2 | DN32 | 4040 | 8 | 0.67 | 3 |
| JFRO-6000L | 6 | 1.2-1.5 | DN40 | 8040 | 6 | 0.6 | 5.5 |
| JFRO-10T | 10 | 1.2-1.5 | DN50 | 8040 | 10 | 0.7 | 11 |
| JFRO-20T | 20 | 1.2-1.5 | DN80 | 8040 | 20 | 0.7 | 18.5 |
| JFRO-50T | 50 | 1.2-1.5 | DN125 | 8040 | 54 | 0.7 | 75 |
| JFRO-100T | 100 | 1.2-1.5 | DN150 | 8040 | 108 | 0.75 | 110 |
Working Process of Brackish Water Desalination System
Raw water tank(buyer provided)→ raw water pump→quartz sand filter →activated carbon filter→anti-scale dosing system→security filter→high pressure pump→ro system→pure water tank(buyer provided)+UV sterilizer(ozone generator) +water supply point
Function of Each Part of Brackish Water Desalination System
1. High Pressure Pump - Provide the high pressure to RO membrane;
2. Feed Water Pump - provide the pressure to quartz sand filter/active carbon filter;
3. Multi-medium Filter - get rid of turbidity, suspended matter, organic matter, colloid, ect;
4. Active Carbon Filter - Remove the color, free chloride, organic matter, harmful matter, ect;
5. Security Filter - prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um;
6. Softener - exchange "ions" of calcium and magnesium with the most common and easiest method;
7. Brackish Water Treatment System - main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
Application Fields and Characteristics of Brackish Water Desalination System
1. In the case of no phase change at normal temperature, the solute and water can be separated, which is suitable for the separation and concentration of heat-sensitive substances, and the energy consumption is lower than that of the phase change separation method.
2. RO membrane separation technology has a wide range of impurity removal.
3. Higher desalination rate and water reuse rate, which can intercept solutes with a particle size of a few nanometers or more.
4. Using low pressure as the membrane separation power, the separation device is simple, the operation, maintenance and self-control are simple, and the site is safe and hygienic.
To Choose the Reverse Osmosis System That Meets Your Needs, Please Let Us Know the Following Questions
1. Where does the raw water come from? (Tap water, groundwater well water, river water, lake water...), it is recommended that you provide a water quality report;
2. What industries would you like to use water for? For example, for drinking water purification, we may provide you with a single-stage reverse osmosis system; according to your different needs, we will recommend more suitable products for you;
3. What is the budget for the product? We provide domestic pumps and imported pumps, and the import price may be higher; we have automatic and manual pretreatment equipment, and the automatic price will be higher;
4. What is the local power supply and voltage?
5. What are the specific local plumbing standards?
6. Is the electrical control part an ordinary relay control? Or is the whole system PLC program control?
7. Additional requirements for equipment.
FAQ
Q: What is the brackish water desalination system?
A:The brackish water desalination device is a water treatment device that combines the principles of reverse osmosis technology and micro-computer technology and mechatronics technology.
Q:How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
Q: What’s your payment terms?
A: Deposit in advance and balance before delivery.
