| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-20T |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Item: | Brackish Water Desalination System | Raw Water: | Well Water, Underground Water, Brackish Water... |
|---|---|---|---|
| Production Capacity: | 20T Per Hour | Desalination Rate: | ≥99.5% |
| Function: | Remove TDS/TSS All Kinds Of Impurities | Material: | FRP, Stainless Steel |
| Ro Membrane: | Dow/Toray/Hydraunics/ Vontron... | Valve: | Automatic Or Manual |
| Warranty: | 1 Year | Certification: | ISO9001 |
| High Light: | RO Brackish Water Desalination System,reverse osmosis desalination plant,20TPH Water Purification Treatment Plant |
||

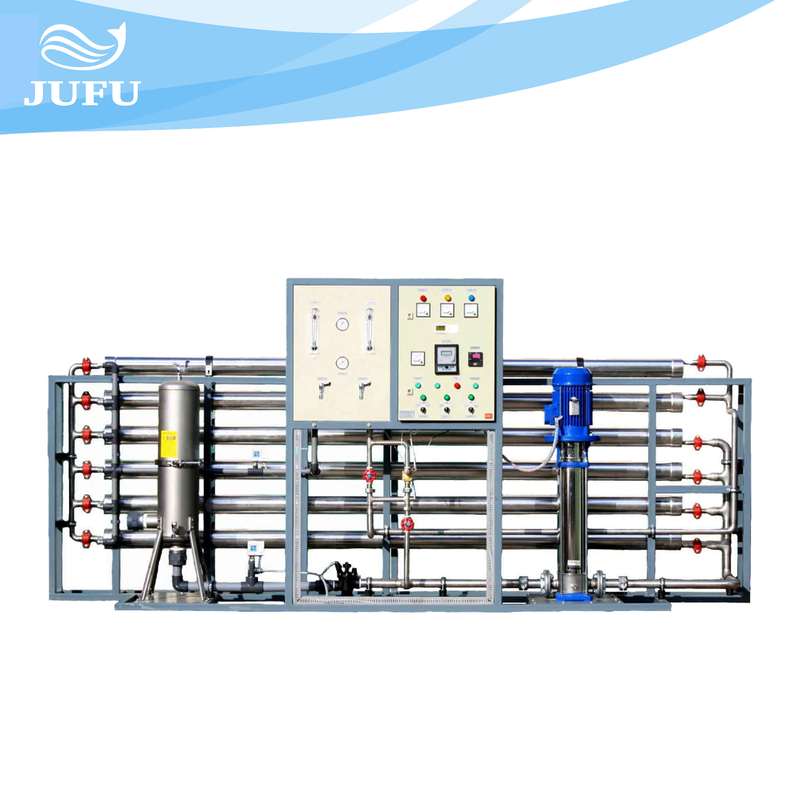

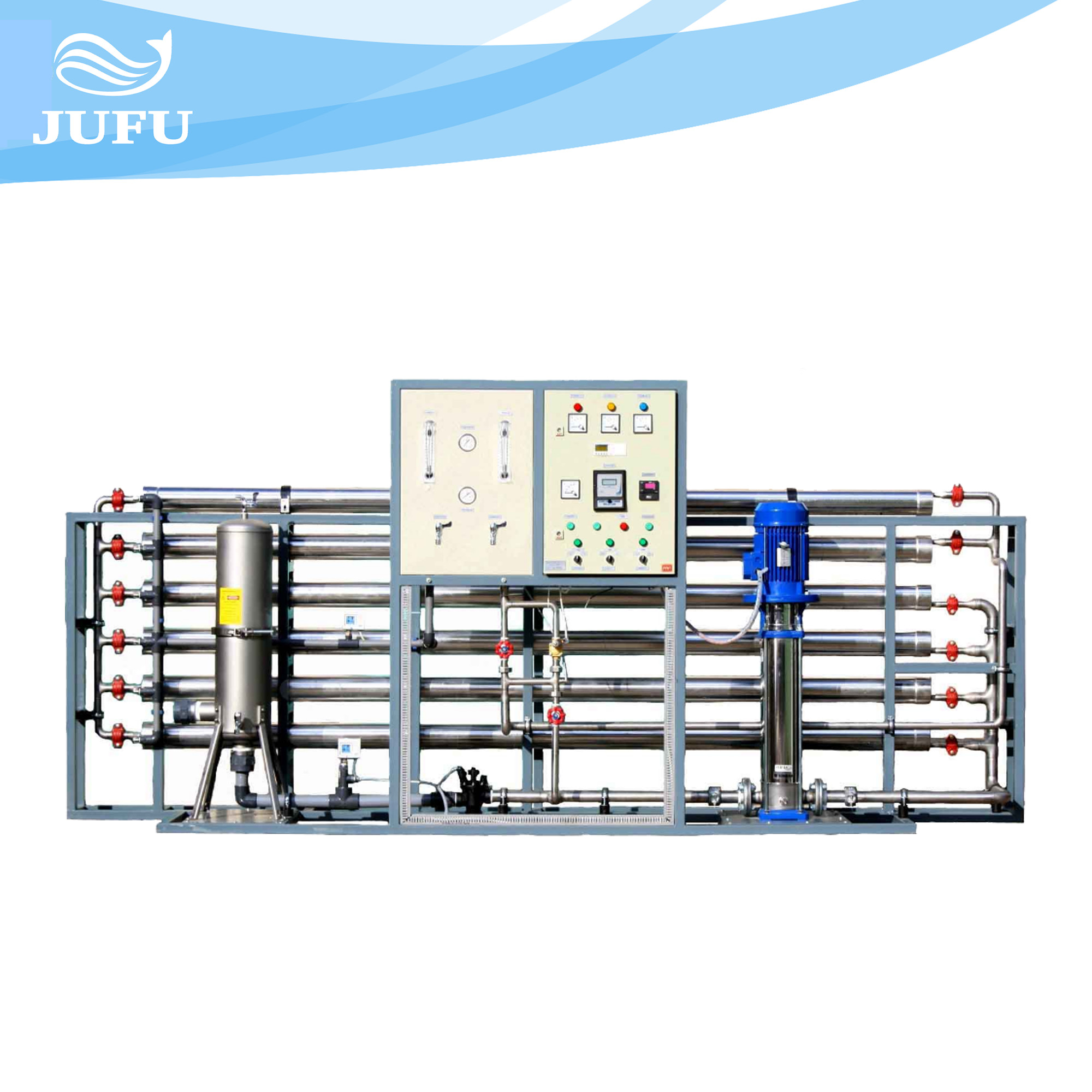

Brackish Water RO Desalination System Water Purification Treatment Plant
What is Reverse Osmosis(RO)?
Reverse osmosis (RO) is a water purification technology that uses semi-permeable membranes to remove ions, molecules and larger particles from drinking water, resulting in purified water. In Reverse osmosis, an applied pressure is used to overcome the osmotic pressure and push the water from high concentration of contaminants to low concentration of contaminants. Our brackish reverse osmosis water system can treat high salt underground well water with TDS(total dissolved solid) from 2000ppm up to 20000PPM. And make the brackish water become domestic consumption line water for resident, irrigating water for algricultrure, industry water supplier, commercial bottle water company ect., which can solve the problem for country shortage in potable water.
Product Technical Specifications Of Brackish Water Desalination System
| Model | JFRO-20T |
| Host Size |
4500x1000x1700mm (can be customized) |
| Power |
18.5KW |
| Power Supply |
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure |
1.2~1.5MPa |
| Recovery Rate |
67% |
| Designed Water Inlet |
30t/h |
| Outlet Flow |
20t/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 8040 |
| Membrane Elements | DOW /Hydranautics/Toray/ Vontron (Optional) |
| Number of Membranes | 20 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | FRP |
| Number of Membrane housing | 5 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
Working Process of Brackish Water Desalination System
Raw water tank(buyer provided)→ raw water pump→quartz sand filter →activated carbon filter→anti-scale dosing system→security filter→high pressure pump→ro system→pure water tank(buyer provided)+UV sterilizer(ozone generator) +water supply point
RO Main Features
1. Desalination rate: 97% - 99%;
2. Good water quality, low power consumption, simple operation;
3. Get rid of organics and bacteria: 98%;
4. On-line conductivity monitoring, ensure good quality of water ouutput;
5. PLC mini PC monitor, wash RO membrane in fixed time;
6. Running in a high automatization, no pollution;
7. Drinkable without boiling, refuse incrustation scale in water pot.
How to Get the Suitable Ro System?
Please send the following details to this supplier.
1. Where does the raw water come from? (Tap water, groundwater well water, river water, lake water...), it is recommended that you provide a water quality report;
2. What's the capacity for the RO system you need? (we have successful experience offered systems to our clients from 500lph to 180000lph)
3. What industries would you like to use water for? For example, for drinking water purification, we may provide you with a single-stage reverse osmosis system; according to your different needs, we will recommend more suitable products for you;
4. 20m³/h reverse osmosis Ro water treatment system specification and photos.
5. Additional requirements for equipment.
How Do I know What Size Unit to Buy?
An important factor related to size is how much water a reverse osmosis system can filter.
The product specs for different systems will provide information on how many liters a day a system can handle. For example, one type of unit produces 5000 liters of treated water per day under its design conditions. You should examine water conditions and buy a large rated unit than needed.
Material of Reverse Osmosis System?
We have different materials. 1. Fiber glass(FRP) filter + U-PVC pipe; 2. Stainless steel filter + U-PVC pipe. 3. Total stainless steel.
You can choose the right material according to your needs"
FAQ
Q: What is the brackish water desalination system?
A:The brackish water desalination device is a water treatment device that combines the principles of reverse osmosis technology and micro-computer technology and mechatronics technology.
Q: What kind of information need to be provided for product selection?
A: What ‘s the raw source of your water? If possible, please provide Water Analysis Report.
B: What’s your request on the output capacity of the equipment?
C: What’s the application for the project?
D: What’s the piping standard applied in your local market?
E: Do you need on-site installation guidance?
Q: What’s your warranty?
A: Jufu offers 1 year warranty for the products.
The product itself can work for 5 years with proper use and maintenance.
