| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-1000L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| RO Frame: | SUS304 | Warranty: | 1 Year |
|---|---|---|---|
| Capacity: | 1000L/H | Power Supply: | 220V/380V/460V-50Hz Can Be Customized |
| Host Size: | 1000x600x1600mm (can Be Customized) | Operating Pressure: | 0.8-1.2MPa |
| Membrane Size: | 4040 | Nbr Of Membranes: | 4 |
| Membrane Elements: | DOW/Hydranautics/Troy/Vontron (optional) | Membrane Housing: | SS/FRP |
| High Light: | 1000LPH Drinking Water RO System,4040 water purifier plant,Drinking Water RO System Reverse Osmosis |
||
1000LPH Drinking Water RO System Reverse Osmosis For Bottled Pure Water
Separation capacity of Drinking Water RO System membrane technology:
Reverse osmosis is currently a relatively accurate liquid filtration technology. RO reverse osmosis membrane can retain inorganic molecules such as dissolved salts and organic compounds with molecular weight greater than 100. On the other hand, water molecules can freely pass through the RO membrane, and the removal rate of typical soluble salts is high.
Technical specifications of Drinking Water RO System
|
|||||||||||||||||||||||||||||||||||||||||
Drinking water ro system workflow:
raw water - raw water tank - raw water booster pump - quartz sand filter - activated carbon filter - scale inhibitor dosing equipment - precision filter - first-stage high pressure pump - first-stage reverse osmosis Host - intermediate water tank - secondary high pressure pump - secondary reverse osmosis host - disinfection system - production water.
How does temperature affect water production?
The higher the temperature, the higher the water production, and vice versa, when operating at a higher temperature, the operating pressure should be lowered to keep the water production unchanged, and vice versa.

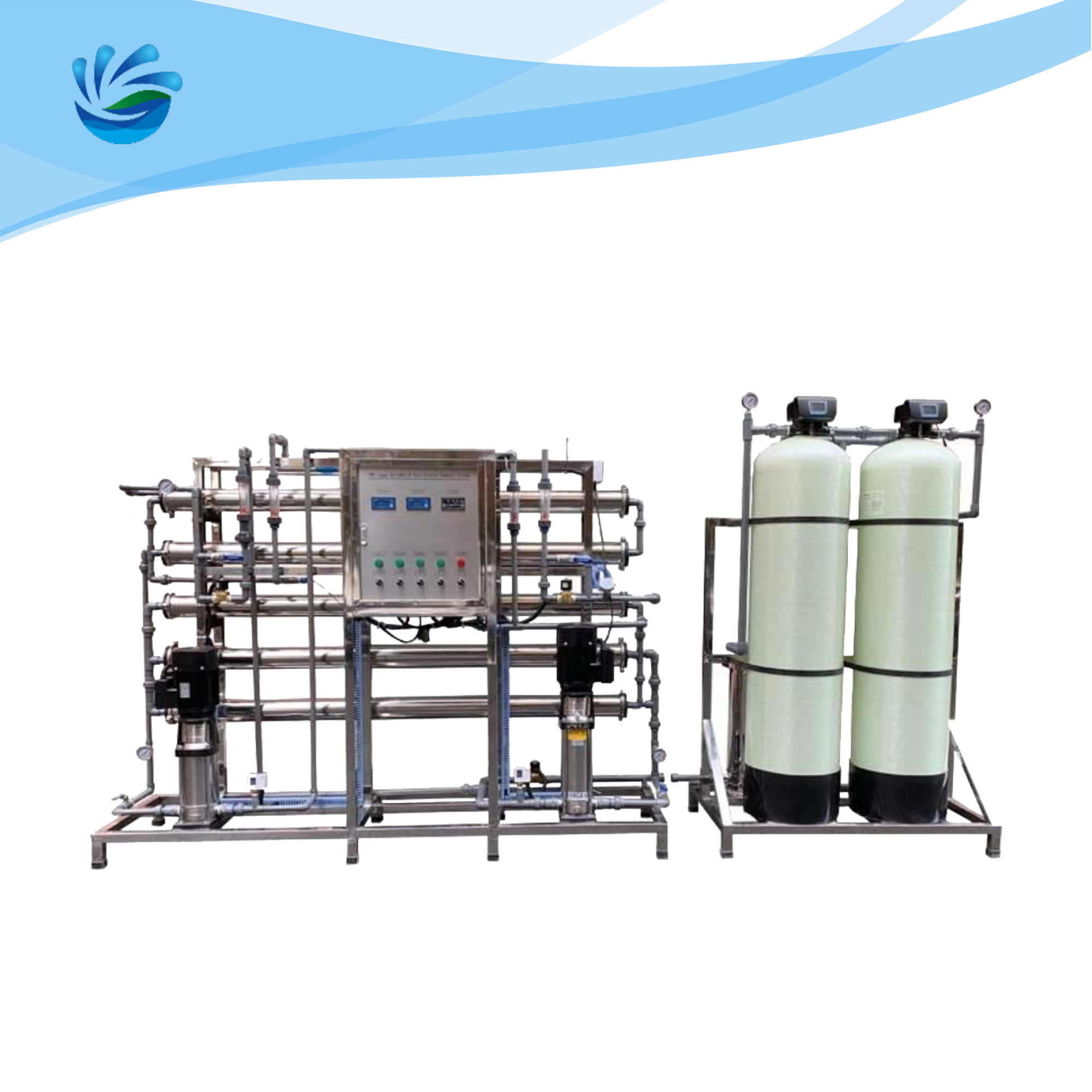

Photos of Drinking Water RO System
FAQ:
1. RO water treatment system configuration:
First-stage multi-stage process: if the recovery rate is not achieved in the first stage (50-65% in the first stage and 65-75% in the second stage), the multi-stage tandem filtration can be used. The effective cross-sectional area of each segment decreases. 2:2 and 2:3 and 4:2:1
Multi-stage process: when the first stage process cannot meet the effluent quality requirements (the first stage is generally ≤20μs/cm), the product water of the first stage process is sent to another reverse osmosis unit.
The arrangement of membrane components can be divided into series and parallel.
2. What is the shell film material and specification of ro water treatment system?
Material of membrane case: stainless steel and fiberglass (FRP)
Specification of membrane shell: four inch membrane shell 4040 (one core to four core)
8 inch membrane case 8040 (one to seven cores)
Water inlet: end water inlet, side water inlet
3. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)
Model 4040 is designed by 0.25m3/h
Model 8040 is designed by 1-1.2m3/h
