| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-5T |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/P, D/A, T/T, Western Union, MoneyGram |
| Item: | Seawater Desalination RO System | Raw Water: | Seawater Or Salt Water |
|---|---|---|---|
| Production Capacity: | 5000liters Per Hour | Desalination Rate: | ≥99.5% |
| Ro Membrane: | Dow/Toray/Hydraunics/ Vontron... | Control Valve Brand: | FLECK/RUNXIN |
| Valve: | Automatic / Manual | Recovery Rate: | 30% |
| Leadtime: | 2-4 Weeks | Warranty: | 1 Year |
| High Light: | 5TPH Seawater Reverse Osmosis System,Salt Water Desalination Machine,SS304 Seawater Reverse Osmosis System |
||

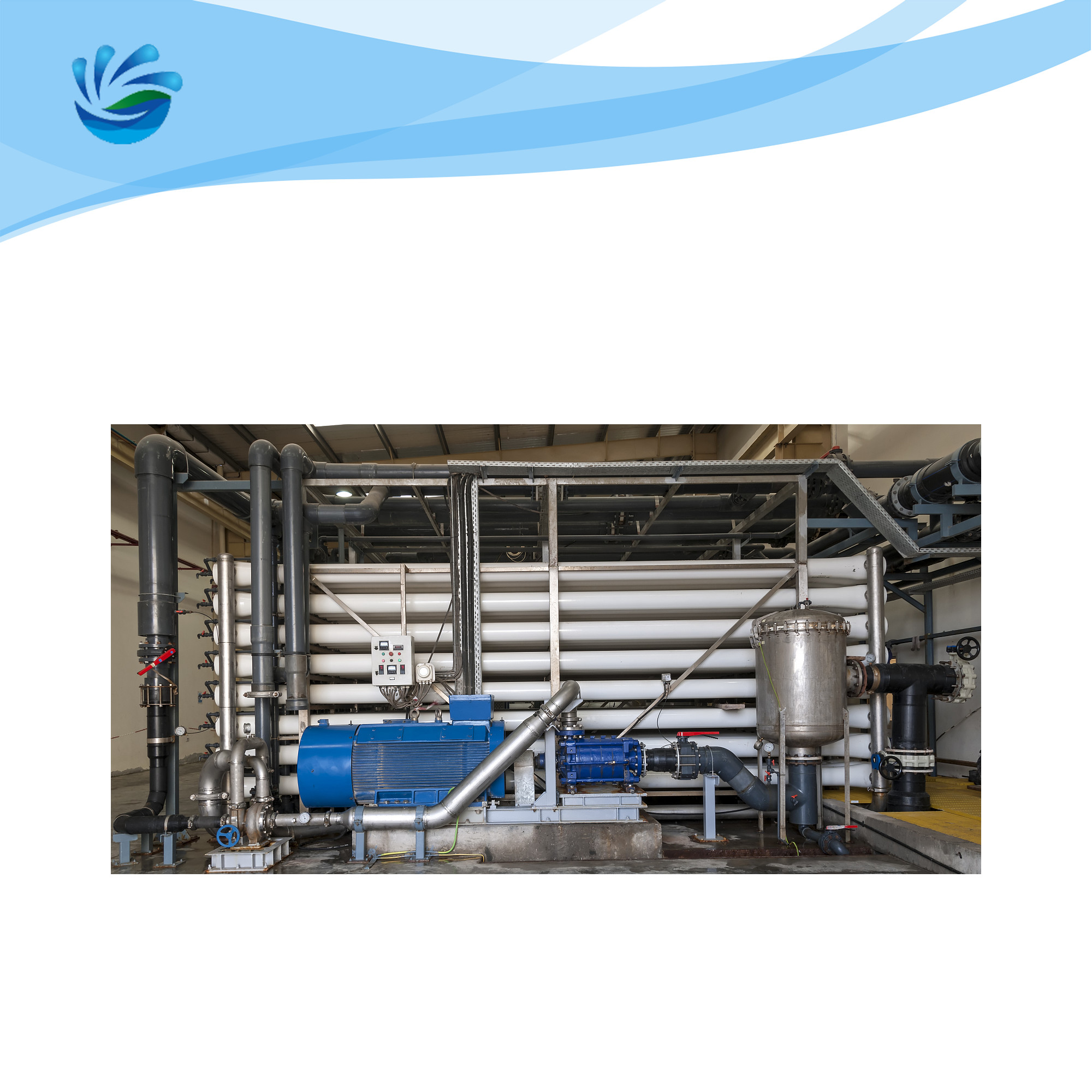

5TPH SS304 Seawater Reverse Osmosis System Salt Water Desalination Machine
What is the Seawater Desalination RO System?
The core process of desalination is the Reverse Osmosis Process, mainly used to treat the salty water with high TDS more than 10000ppm. It consists of a High pressure pump followed by an Energy Recovery device and the Reverse Osmosis Membranes.
In this process sea water is forced against semi-permeable membranes under pressure in a continuous flow condition. The high salt content of sea water requires that the operating pressure for Reverse Osmosis must be between 60-70 bar. As the water permeates through the membrane most of the dissolved impurities removed and 99.5% of the total salt is removed. The impurities are left behind in the flowing water and the concentrated stream from the membranes is discharged to the ocean.
Specifications of Seawater Desalination RO System
| 1 | Water Pump | CNP/NYP/Grundfos (Optional) |
| 2 | Tank/Vessel | Stainless steel 304 or Fiber glass (Optional) |
| 3 | RO membrane |
DOW /Hydranautics/Toray/ Vontron (Optional) |
| 4 | CIP system | CNP/Grundfos brand (Optional) |
| 5 | PP filter | Stainless steel 304 or Fiber glass (Optional) |
| 6 | PLC control | Optional |
| 8 | Pipeline | Stainless steel 304 or U-PVC (Optional) |
| 9 | Production capacity |
5000L/H |
Working Process of Seawater Desalination RO System
Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→sodium-ion exchanger
(water softener)→ security filter→ high pressure pump →Reverse osmosis→ Ozone sterilizer (UV sterilizer)
Reverse Osmosis System
The pretreatment system includes water supply pump, multi-media filter, precision filter and security filter, which mainly deals with large impurities, residual chlorine and fine particles contained in the raw water to ensure the water quality of the reverse osmosis system.
The reverse osmosis system includes high pressure pump, RO reverse osmosis membrane assembly, pressure regulating valve and cleaning box, which mainly further processes the pre-treated raw water into fresh water.
How Do Reverse Osmosis Filter Systems Work?
If you're looking for a water filter that provides quality drinking water, reverse osmosis (RO) filtration is one of the most popular and best methods of water filtration out there. In simple terms, reverse osmosis works by forcing water through a semi-permeable membrane, leaving behind contaminants that are flushed down the drain. Clean drinking water is collected in a holding tank.
Product Advantage of Seawater Desalination RO System
1. Easy to use. Continuous operation and water production, high degree of automation;
2. No need for chemical regeneration, easy to operate and maintain;
3. Quality assurance. The RO system adopts imported DOW membrane from the United States;
4. Automatic switch machine. Automatically turn on when there is no water, and automatically turn off when there is no water or full of water;
5. Automatic cleaning. The RO membrane is automatically cleaned to reduce the pollution speed;
6. The low pressure switch protects the high pressure pump from being damaged due to water failure;
7. Water quality monitoring. Continuous online monitoring of water quality with conductivity meter for production water;
8. Input the water and concentrated water pressure gauges, monitor the RO pressure difference, and remind the washing time.
Jufu's Strength
1. Focus on water treatment industry for 14 years, High quality with stable performance.
2. ISO9001 Quality System Certified.
3. Provide Water Treatment Solutions free of charge.
4. Onsite installation service is available.
5. Lifetime after-sales service available.
Product Details
FAQ
Q: What is the Seawater Desalination RO System?
A: The core process of desalination is the Reverse Osmosis Process, mainly used to treat the salty water with high TDS more than 10000ppm.
Q: What’s the type of your company? Manufacturer or Trading agent?
A: We’re the Hi-tech manufacturer in Water treatment industrial for almost two decades, we specialized in integrating Research & Development, Manufacturing, Sales, Engineering installation and Consulting on water treatment and water purification equipment and technologies.
Q: How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
