| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-10T |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Item: | Seawater Desalination RO System | Raw Water: | Seawater Or Salt Water |
|---|---|---|---|
| Production Capacity: | 2000liters Per Hour | Recovery Rate: | 30% |
| RO Frame: | SUS304 | Ro Membrane: | Dow/Toray/Hydraunics/ Vontron... |
| Valve: | Automatic / Manual | Size: | 2700x600x1600mm |
| Application: | Water Purificaiton | Country Of Origin: | China |
| Warranty: | 1 Year | ||
| High Light: | 2T Seawater Desalination Plant,agriculture water filtration systems,Seawater Desalination Plant RO |
||

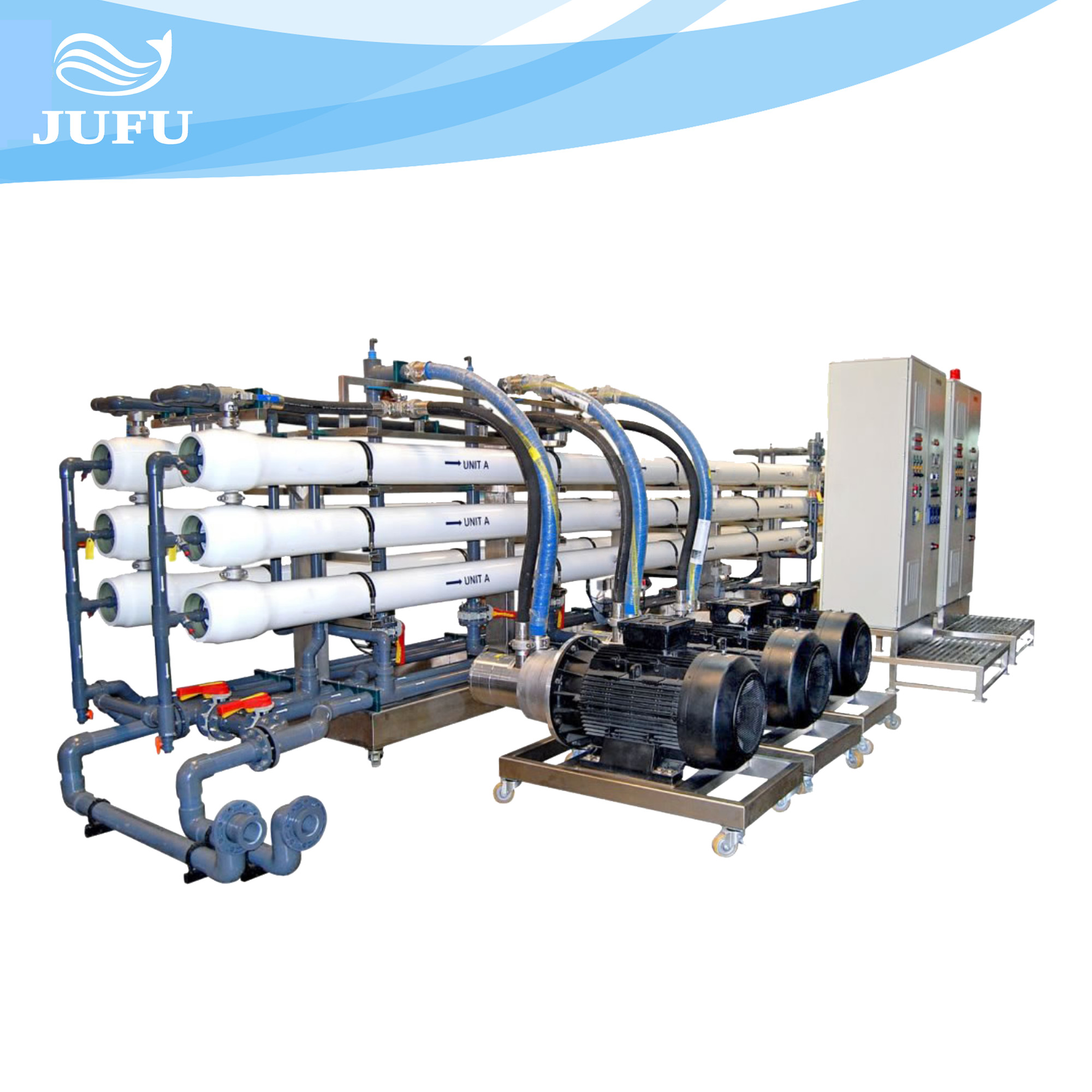

10T Seawater Desalination Plant RO Water Purification For Agricultural Water
What is the Seawater Desalination RO System?
The core process of desalination is the Reverse Osmosis Process, mainly used to treat the salty water with high TDS more than 10000ppm. It consists of a High pressure pump followed by an Energy Recovery device and the Reverse Osmosis Membranes.
In this process sea water is forced against semi-permeable membranes under pressure in a continuous flow condition. The high salt content of sea water requires that the operating pressure for Reverse Osmosis must be between 60-70 bar. As the water permeates through the membrane most of the dissolved impurities removed and 99.5% of the total salt is removed. The impurities are left behind in the flowing water and the concentrated stream from the membranes is discharged to the ocean.
Working Process of Seawater Desalination RO System
Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→sodium-ion exchanger(water softener)→ security filter→ high pressure pump →Reverse osmosis→ Ozone sterilizer (UV sterilizer)
Membrane Seawater Desalination Technology Features
1. The land occupation: about 1/2-2/3 of other processes;
2. Low energy consumption: 20% lower than other processes;
3. Strong adaptability to seawater and strong equipment mobility;
4. Less investment: the investment amount is 1/2-2/3 of other processes;
Technical Indicators for Seawater Desalination RO System
1. Desalination rate 99.5 %;
2. Water recovery rate 35 % - 40 %;
3. Tons of water consumption 3 - 4 degrees;
4. Operating cost per ton of water is 3 - 4 yuan.
Product Advantage of Seawater Desalination RO System
1. Easy to use. Continuous operation and water production, high degree of automation;
2. No need for chemical regeneration, easy to operate and maintain;
3. Quality assurance. The RO system adopts imported DOW membrane from the United States;
4. Automatic switch machine. Automatically turn on when there is no water, and automatically turn off when there is no water or full of water;
5. Automatic cleaning. The RO membrane is automatically cleaned to reduce the pollution speed;
6. The low pressure switch protects the high pressure pump from being damaged due to water failure;
7. Water quality monitoring. Continuous online monitoring of water quality with conductivity meter for production water;
8. Input the water and concentrated water pressure gauges, monitor the RO pressure difference, and remind the washing time.
FAQ
Q: What is the Seawater Desalination RO System?
A: The core process of desalination is the Reverse Osmosis Process, mainly used to treat the salty water with high TDS more than 10000ppm.
Q: How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
Q: What’s your payment terms?
A: Deposit in advance and balance before delivery.
