| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFA-1400 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Wooden cases |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | D/A, D/P, T/T, L/C, Western Union, MoneyGram |
| Capacity: | 40T/h | Warranty: | 1 Year |
|---|---|---|---|
| Weight Of Filled Resin(kg): | 1500 | Resin Tank(mm): | 1400*2100*1 |
| Salt Tank(mm): | 1370*1630*1 | Inlet & Outlet Diameter: | 3 Inch |
| MOQ: | 1 Unit | Condition: | New |
| Dimension: | 3000x1400x2850mm | Country Of Origin: | China |
| High Light: | 40TPH Water Softener Treatment System,Water Filter System For Hard Water,Hard Water Softener Treatment System |
||

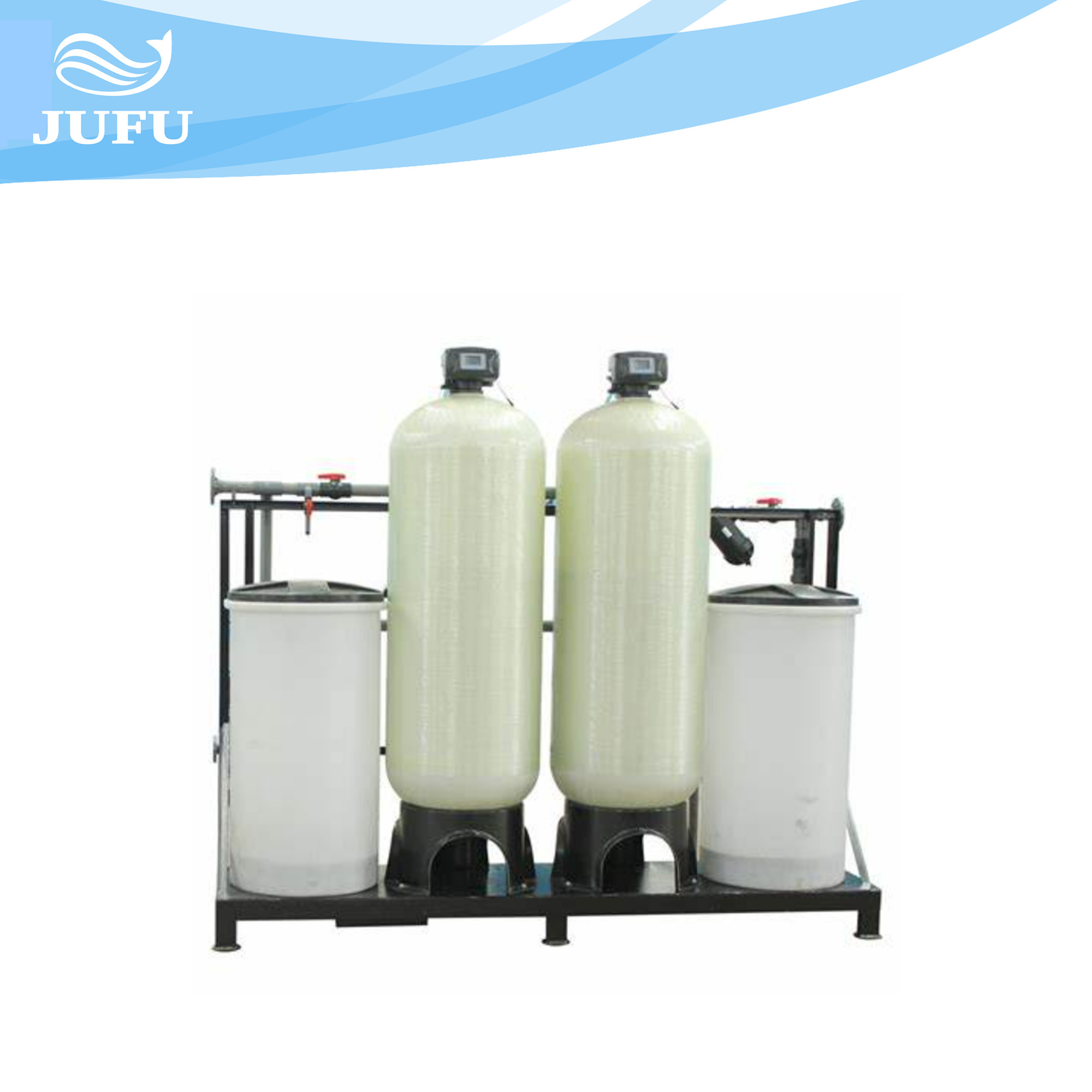

Water Softener Treatment System Water Filter System For Hard Water
Softening water equipment is to use Yang resin to soften the main purpose of the source water is to let
The resin adsorbs calcium and magnesium ions (the main components of scale formation) in water and reduces the source water
Hardness, and can be intelligent resin regeneration, recycling.
1. In order to save cost, manual control system can be selected according to the situation.
2. If the water is used continuously for 24 hours, it can be recycled alternately according to the time used
Have a use.
3. According to water quality requirements: a multi-media filter, used to remove water mouth
Sediment, rust, colloid and suspended matter; Secondary activated carbon filter for water removal
The pigment, peculiar smell, biochemical organic matter, reduce the residual chlorine value in water and pesticide pollution;
Three stage softening water equipment.
4. The quality of outlet water reaches the standard of central air conditioning water supply.
5. Time control - timing type: flow control - metering type. Operation, the use of single
Cans, double cans and multiple cans and other combinations. When selecting, you can choose according to your needs.
In operation, softening water equipment products in addition to automatic operation function, but also can be manually
Operation.
Technical Parameters of Water Softener Treatment System
| No. | Model | Producing Capacity m3/h | Resin Tank(mm) D×H×unit | Salt Tank(mm) D×H×unit | Filled resin amount(kg) | Inlet & outlet Diameter (Inch) | Dimension L×W×H(mm) | Operating Mode |
| 1 | JFA-200 | 1 | 200×1200×1 | 300×600×1 | 20 | 3/4 | 1000×500×1800 | Single valve, single tank system, production stopped for 2 hours during regeneration, flow rate/time type |
| 2 | JFA-250 | 1 | 250×1400×1 | 300×600×1 | 40 | 1 | 1000×500×1800 | |
| 3 | JFA-300 | 2 | 300×1650×1 | 400×800×1 | 60 | 1 | 1050×540×1900 | |
| 4 | JFA-400 | 4 | 400×1650×1 | 400×800×1 | 100 | 1 | 1150×540×1900 | |
| 5 | JFA-500 | 6 | 500×1900×1 | 500×900×1 | 160 | 1-1.5 | 1450×750×2100 | |
| 6 | JFA-600 | 8 | 600×1900×1 | 660×1200×1 | 240 | 1.5 | 1600×750×2300 | |
| 7 | JFA-750 | 10 | 750×1900×1 | 760×1200×1 | 380 | 1.5 | 1600×760×2300 | |
| 8 | JFA-900 | 15 | 900×1900×1 | 900×1200×1 | 550 | 2 | 1800×900×2400 | |
| 9 | JFA-1000 | 20 | 1000×2000×1 | 1000×1200×1 | 750 | 2 | 2300×1100×2650 | |
| 10 | JFA-1200 | 30 | 1200×2000×1 | 1200×1500×1 | 1000 | 3 | 2500×1400×2750 | |
| 11 | JFA-1400 | 40 | 1400×2100×1 | 1370×1630×1 | 1500 | 3 | 3000×1400×2850 |
Product Workflow Chart of Water Softener Treatment System
Plant and Project Case Diagrams of Water Softener Treatment System
FAQ:
Q: What’s the type of your company? Manufacturer or trade agent?
A: We are a high-tech manufacturer engaged in water treatment industry for nearly 20 years, specializing in water treatment, water purification equipment and technology research and development, manufacturing, sales, engineering installation and consulting.
Q: How do I choose products that are an exact match for my case?
A :Jufu's professional engineers will tailor your solutions according to your needs. We are a factory integrating design and production, providing you with one-stop solutions.
Q: What are your payment terms?
A: Deposit in advance and the balance before delivery. According to the specific requirements of the project.
