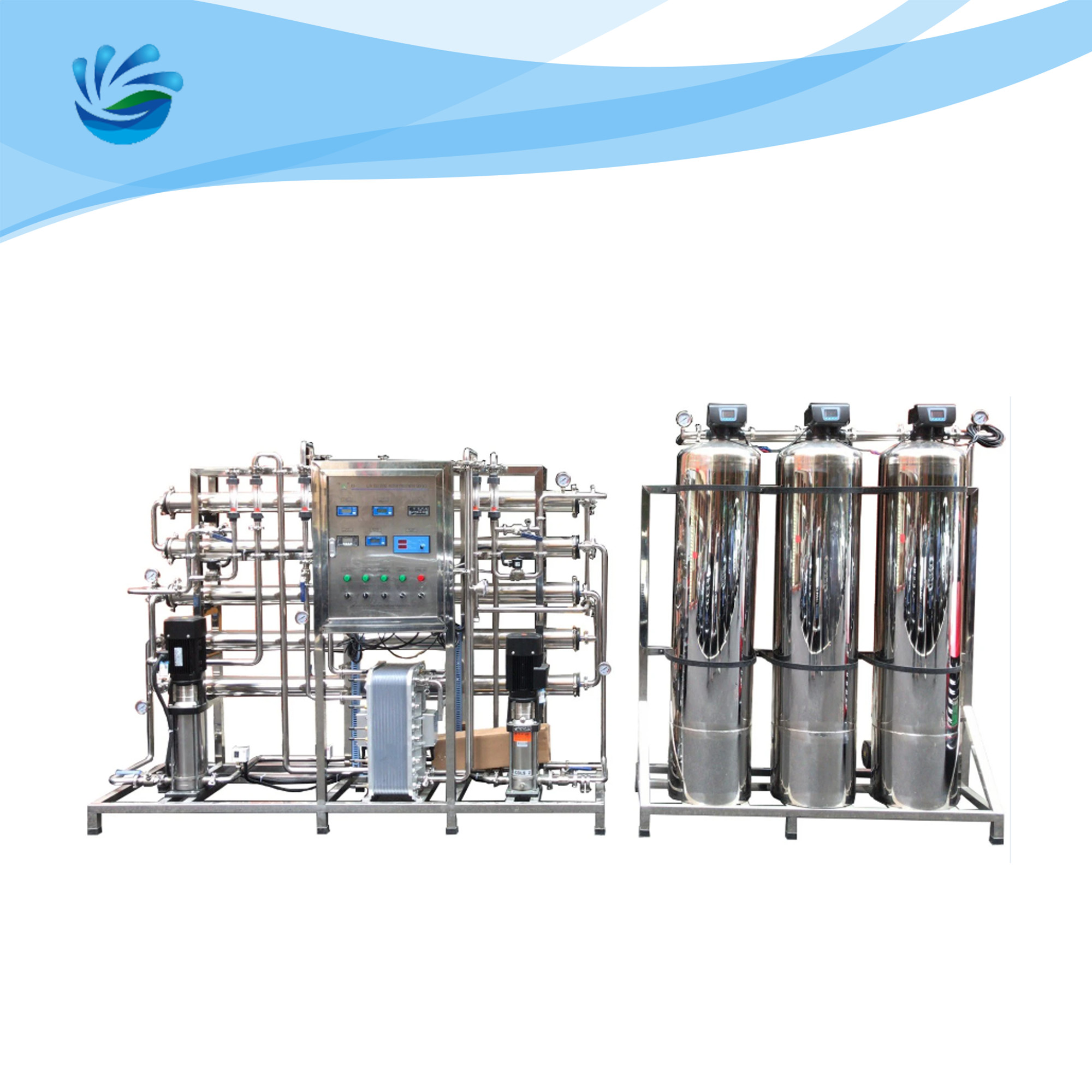

Two Stage RO 1500LPH Purified Water Generation System For Pharmaceutical

Two-stage RO 1500LPH Purified Water Generation System for Pharmaceutical

Description of Pharmaceutical Water Purification System

Pharmaceutical purified water has certain requirements for conductivity and ion content, etc. The primary water quality objectives are: conductivity ≤2 liters of s/cm, heavy metal ≤0.3 liters of g/LTOC≤500 liters of g/L.In order to reach the purified water quality requirements, the current primary choice of reverse osmosis.
Our medical purified water system uses bipolar reverse osmosis + EDI electrodeionization process, with high desalination rate, stable effluent quality and reliable performance, ensuring the stable operation of the system to a large extent.

Working Process of Pharmaceutical Water Purification System

Raw water → raw water pressure pump → multi-media filter → activated carbon filter → water softener → precision filter → first-stage reverse osmosis → PH adjustment → intermediate water tank → second-stage reverse osmosis (reverse osmosis membrane surface with positive charge )→Purification water tank→Pure water pump→UV sterilizer→Ozone generator→Microporous filter→Water point

RO & EDI Description

RO(Reverse Osmosis), the basic working principle is : using of a special high pressure pump, increasing pressure to raw water, then force raw water penetrating through reverse osmosis membrane under the pressure. Only water molecules and solvent less than microns
can pass through the RO membrane.

EDI (Electrodeionization) is a revolutionary water treatment technology ,it is a membrane separation desalination technology that skillfully combined the electrodialysis technology and ion exchange technology together ,which is high-tech , green and environmental protection technology. EDI plant has very high requests to raw water, usually we use double stage RO system production water as its raw water.

Pharmaceutical Water Concept

1. Purified water is obtained from specially designed purified water equipment. This type of water source is of higher quality and other water quality standards. It is characterized by colorless, odorless, tasteless, clear liquid without any impurities, such as ions, microorganisms, organic matter, bacteria, viruses, etc.
2. Purified water can be used as a solvent or test water for formulating common pharmaceutical preparations, as well as pharmaceutical raw materials and cleaning water for pharmaceutical equipment. Its quality standards have a great relationship with people's life and health, so the quality of purified water must be better than other.
3. Other indicators are in line with the physical and chemical indicators required in the latest edition of the Chinese Pharmacopoeia GMP certification.

EDI Water Treatment Plant In Pharmaceutical Industry

1.System can produce water continuously and high degree automation.
2.No need chemical to regenerate, easy operation and maintenance.
3.Core components of ro system are imported USA membranes.
4.Automatic switch on when low water level, and switch off when high water level
5.System flushes RO membranes automatically, reducing membranes polluted speed.
6.Water shortage protection for multi-stage pump
7.Product water conductivity meter can monitor water quality online continuously.
8.Low operation cost and long life span

FAQ

Q: What is the application of EDI?

A: EDI technology is mainly used for deep desalination of reverse osmosis water, and it has been widely used in many fields such as electronics, electric power, biology, pharmacy, chemical industry and so on.

Q: What’s the leadtime?

A: It depends. 3-5 weeks for general products.

Q: What’s your warranty?

A: Jufu offers 1 year warranty for the products.

The product itself can work for 5 years with proper use and maintenance.
