| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFEDI-100T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Wooden Cases |
| Delivery Time: | 3-4 Weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Rack Material: | SUS/Carbon Steel | Tank Material: | SS/FRP (optional) |
|---|---|---|---|
| Brand Name: | Jufu | Place Of Origin: | China |
| Productivity: | 100T/h | Operating Pressure: | 0.1-0.3MPa |
| Host Size: | Can Be Customized | Warranty Of Core Components: | 1 Year |
| High Light: | 100TPH EDI Water Purification System,Raw Water Electro Deionizer System,Electrodeionization RO EDI Plant |
||
100TPH EDI Water Treatment Equipment Water Purifying Machine With EDI
Product Technical Points of EDI Water Treatment System Plant
RO & EDI
RO(Reverse Osmosis), the basic working principle is:using of a special high pressure pump, increasing pressure to raw water, then force raw water penetrating through reverse osmosis membrane under the pressure. Only water molecules and solvent less than microns
can pass through the RO membrane.
EDI (Electrodeionization) is a revolutionary water treatment technology ,it is a membrane separation desalination technology that skillfully combined the electrodialysis technology and ion exchange technology together ,which is high-tech , green and environmental protection technology. EDI plant has very high requests to raw water, usually we use double stage RO system production water as its raw water.
Product Technical Parameters of EDI Water Treatment System Plant
|
EDI System |
|
|
Model |
JFEDI-100T |
|
Host Size |
Can be customized |
|
Operating Pressure |
0.1-0.3MPa |
|
Recovery Rate |
95% |
|
Rack Material |
SUS304/Carbon Steel (Optional) |
|
Pipe Material |
U-PVC/ C-PVC/Stainless steel (Optional) |
|
EDI Brand |
Ionpure/Canpure/GE (Optional) |
|
Raw Water Pump |
CNP/NYP/GRUNDFOS (Optional) |
|
Tank Material |
SS/FRP(Optional) |
|
Outlet Flow |
100t/h |
|
Power Supply |
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
Advantages of EDI Compared With Traditional Mixed Bed:
The advantages of continuous desalting by electrodialysis and deep desalting by ion exchange are retained;
Compared with ordinary ion exchange resin column, the amount of ion exchange resin is less, saving more than 95% of resin;
Ion exchange resin does not need acid and alkali chemical regeneration, saving a lot of acid and alkali and cleaning water, greatly reducing labor intensity;
No waste acid waste lye discharge, is clean production technology, green environmental protection products;
The process is easy to realize automatic control, EDI and reverse osmosis (RO), UF and other water treatment technology combined, can form a perfect high pure water production line;
Small footprint, and do not need to be like ion-exchange beds, a set of in-use, a set of regeneration of the repeated Settings.
Process Characteristics:
EDI process using an ion selective membrane and ion exchange resin under dc voltage is sandwiched between two electrodes, between between the poles of dc electric field from the RO water processed by the removal of ions, EDI process system instead of the traditional hybrid resin bed to make deionized water, with ion exchange mixed bed big difference is that EDI can continuous to ion process, High degree of automation, and does not need acid and alkali regeneration.
Advantages of EDI compared with traditional mixed bed:
The advantages of continuous desalting by electrodialysis and deep desalting by ion exchange are retained;
Compared with ordinary ion exchange resin column, the amount of ion exchange resin is less, saving more than 95% of resin;
Ion exchange resin does not need acid and alkali chemical regeneration, saving a lot of acid and alkali and cleaning water, greatly reducing labor intensity;
No waste acid waste lye discharge, is clean production technology, green environmental protection products;
The process is easy to realize automatic control, EDI and reverse osmosis (RO), UF and other water treatment technology combined, can form a perfect high pure water production line;
Small footprint, and do not need to be like ion-exchange beds, a set of in-use, a set of regeneration of the repeated Settings.
Application of EDI Water Treatment Plant
Thermal power plant, Atomic energy, Electronic optoelectronics industry, Printing industry, Automotive battery industry, Bioengineering, Synthenic chemical industry, Petrochemical industry, Environment industry, Hydrometallurgical industry, etc.
Workflow Chart of EDI Water Treatment Plant

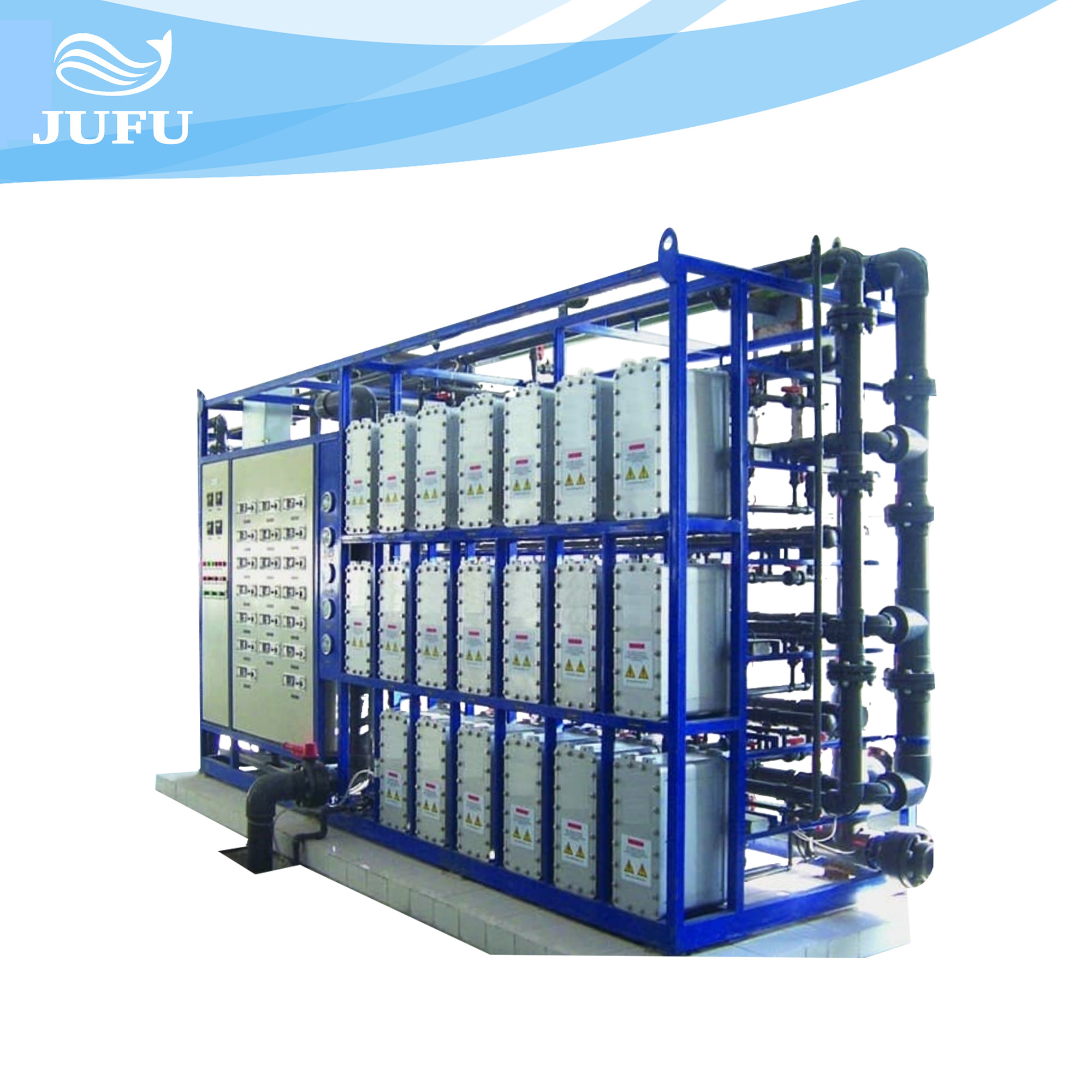

Images of EDI Water Treatment Plant
Jufu's Five Guarantees
1:Focus on water treatment industry for 14 years, High quality with stable performance.
2:ISO9001 Quality System Certified.
3:Provide Water Treatment Solutions free of charge.
4:Onsite installation service is available.
5:Lifetime after-sales service available.
FAQ:
Q: What’s the type of your company? Manufacturer or trade agent?
A: We are a high-tech manufacturer engaged in water treatment industry for nearly 20 years, specializing in water treatment, water purification equipment and technology research and development, manufacturing, sales, engineering installation and consulting.
Q: What are your payment terms?
A: Deposit in advance and the balance before delivery. According to the specific requirements of the project.
Q:What after-sale service can you provide?
A:Pick up Service ,100% factory tested before shipment,1 Year's Quality Warranty,Solve problems within 24 hours,Technical support&online support.
