| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001/CE |
| Model Number: | JFRO-250L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| RO Frame: | SUS304 | Warranty: | 1 Year |
|---|---|---|---|
| Host Size: | 800x600x1600mm (can Be Customized) | Power: | 2.2KW |
| Producing Capacity: | 250l/h | Membrane Size: | 4040 |
| Membrane Elements: | DOW/Hydranautics/Troy/Vontron(optional) | Recovery Rate: | 50% |
| Desalination Rate: | ≥99.5% | Tank Material: | SS/FRP(optional) |
| High Light: | 250LPH RO Water Treatment System,Stainless Steel Reverse Osmosis Filtration System,Custom Reverse Osmosis Water Filter Plant |
||
Custom-Made Reverse Osmosis System 250LPH RO Water Treatment System
Reverse osmosis usually uses asymmetric and composite membranes. The equipment used in reverse osmosis is mainly hollow fiber or coil membrane separation equipment.
Reverse osmosis membrane can intercept a variety of inorganic ions, colloids and macromolecular solutes in water, so as to obtain a net system of water. It can also be used for the preconcentration of macromolecular organic matter solution. Due to the simple process and low energy consumption, reverse osmosis has been developed rapidly in the past 20 years. It has been widely used in desalination of seawater and brackish water (see brine), softening of boiler water and wastewater treatment, and combining with ion exchange to produce highly pure water. At present, its application scope is expanding, and has begun to be used in the concentration of dairy products, fruit juices and the separation and concentration of biochemical and biological agents.
RO Water Treatment System Specification
| ||||||||||||||||||||||||||||||||||||||||||
Flow Chart of RO Water Treatment System
Raw water pump → mechanical filter → activated carbon filter → Sodium ion exchanger → precision filter → high pressure pump → reverse osmosis → ozone sterilizer (UV)
The reverse osmosis separation process has its unique advantages:
(1) Pressure is the main driving force of reverse osmosis separation process, which does not go through energy-intensive exchange phase transition and has low energy consumption;
(2) Reverse osmosis does not require a large amount of precipitant and adsorbent, and the operation cost is low;
(3) The design and operation of reverse osmosis separation engineering is simple, and the construction period is short;
(4) reverse osmosis purification efficiency is high, environmental friendly. Therefore, reverse osmosis technology has been widely used in domestic and industrial water treatment, such as desalination of seawater and brackish water, production of medical and industrial water, preparation of pure water and ultra-pure water, industrial wastewater treatment, food processing and concentration, gas separation, etc.

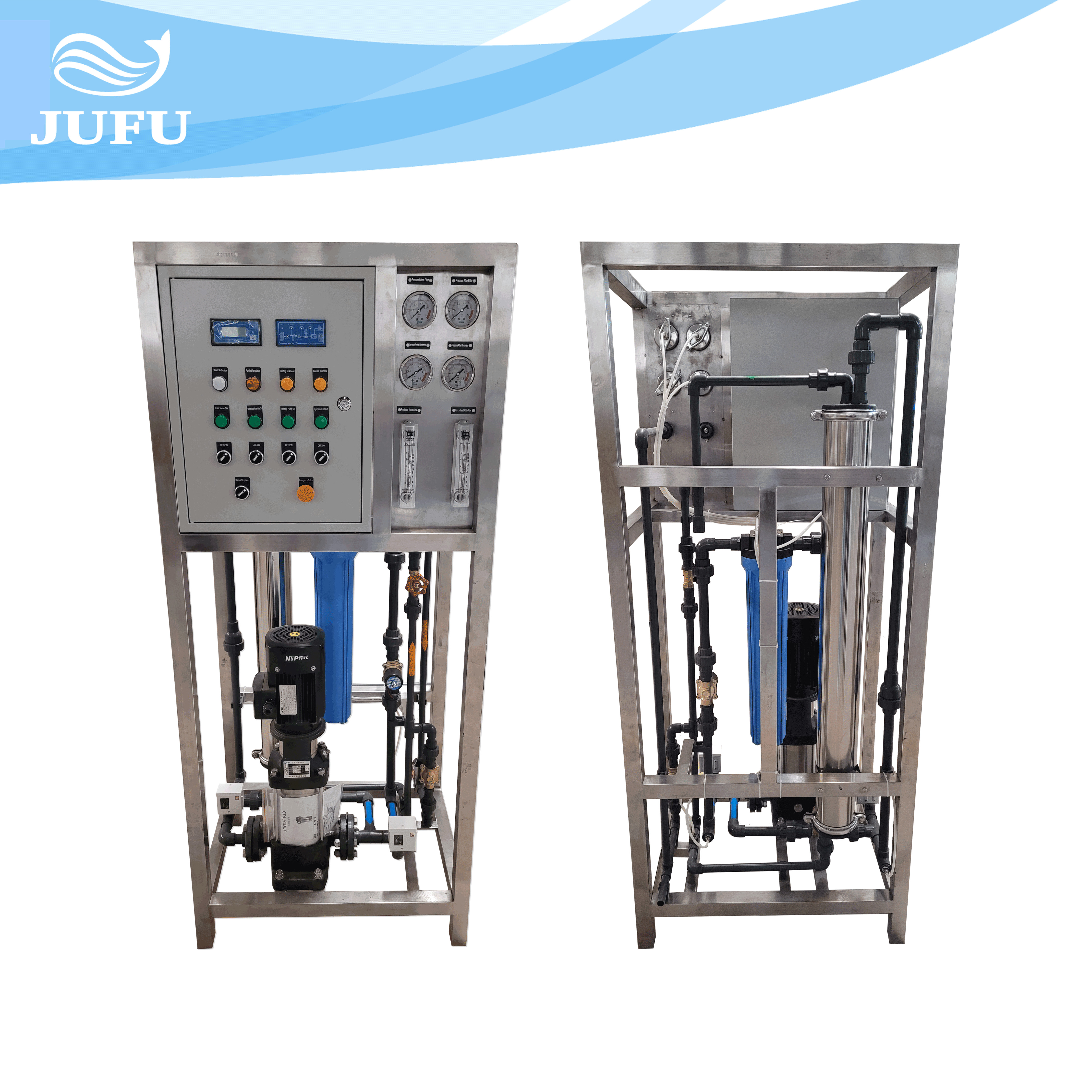

Photos of RO Water Treatment System
Here's a guide to getting the best offer
1. What is the source water to be treated? Industrial wastewater, tap water, well water, groundwater or seawater? Is there a water quality analysis report for conductivity?
2. How much capacity water treatment system do you need? 1000 liters per hour, 5000 liters per hour or more?
3. What is the purpose of outputting purified water? Drinking water, food, beverage manufacturing, industrial use or medical production use?
FAQ:
1. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)
Model 4040 is designed by 0.25m3/h
Model 8040 is designed by 1-1.2m3/h
2. What is the material of mechanical filter?
Carbon steel, stainless steel, fiberglass
3, what are the multi-way control valves?
Manual control valve, automatic control valve
Multi - way control valve is divided into: filter valve and softening valve
Automatic control valve is divided into: time type and flow type.
Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean source, etc.
