| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-3T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| RO Frame: | SUS304/Carbon Steel (optional) | Capacity: | 3T Per Hour |
|---|---|---|---|
| Desalination Rate: | ≥99.5% | Membrane Size: | 4040 |
| Nbr Of Membrane: | 6 | Membrane Housing: | FRP |
| High Light: | 3000lph Reverse Osmosis Filter System,Customizable Reverse Osmosis Filter System,SUS304 Ro Drinking Water System |
||

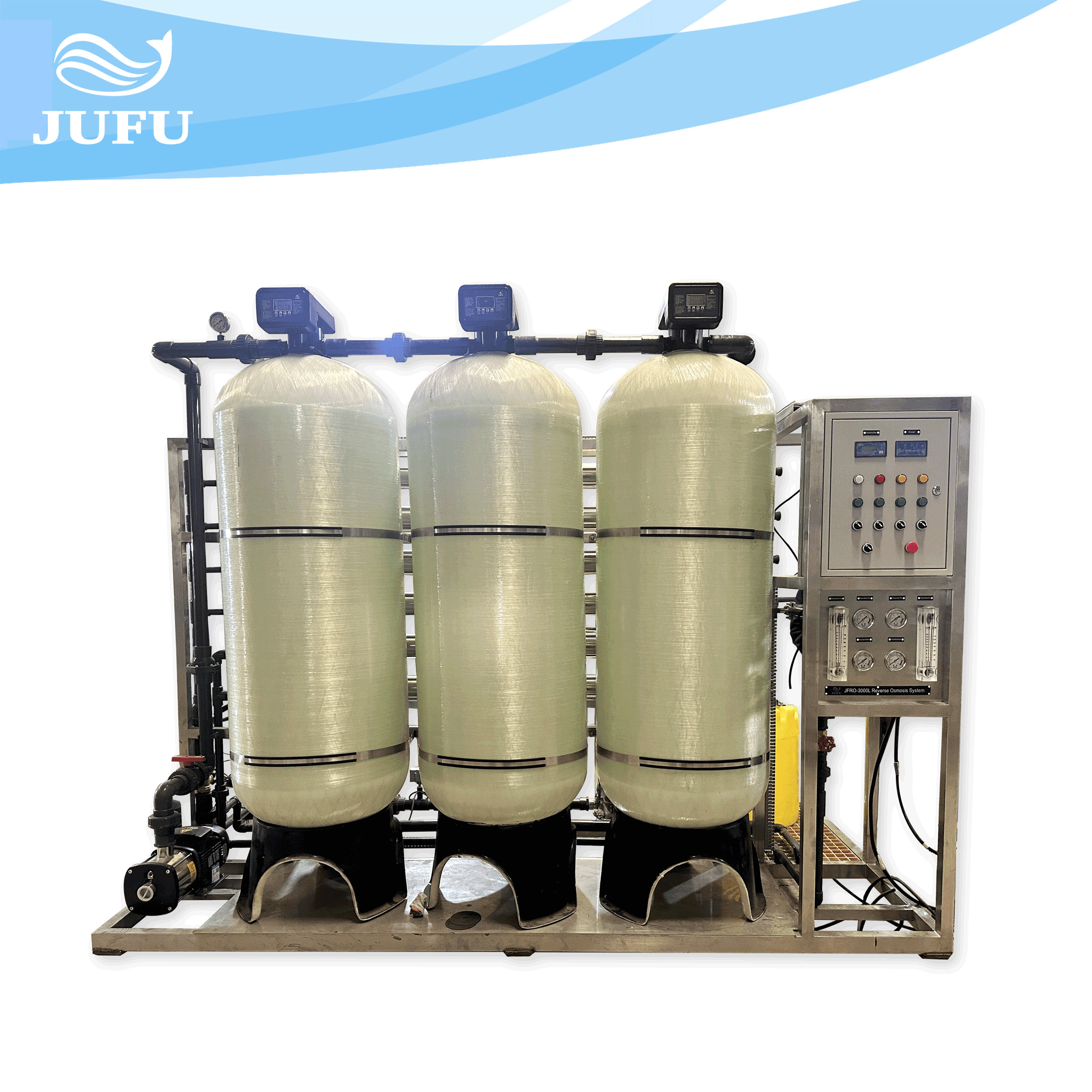

3000lph Drinking Water Treatment Reverse Osmosis Filter System Customizable Drinking Water RO System
Specifications of 3000LPH RO desalination System
|
Model
|
JFRO-3000L
|
|
Host Size
|
can be customized
|
|
Power
|
2.2KW
|
|
Power Supply
|
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized
|
|
Operating Pressure
|
0.8-1.2MPa
|
|
Recovery Rate
|
50%
|
|
Designed Water Inlet
|
4500L/h
|
|
Outlet Flow
|
3000L/h
|
|
Desalination Rate
|
≥99.5%
|
|
RO Frame
|
SUS304
|
|
Membrane Size
|
4040
|
|
Membrane Elements
|
DOW /Hydranautics/Troy/ Vontron (Optional)
|
|
Number of Membranes
|
4
|
|
Raw Water Pump
|
CNP
|
|
High Pressure Pump
|
CNP
|
|
Filter Tanks
|
FRP
|
|
Control Valve
|
Automatic
|
|
Control Valve Brand
|
RUNXIN
|
|
Membrane Housing
|
SS
|
|
Pipe Material
|
U-PVC
|
|
Pipe Material
|
U-PVC
|
RO Purification Process
Feed Water Inlet Requirements
| RO Feed Water Requirement | |
| Silt Density Index (SDI) | 15<5 |
| Turbidity | <1.0 NTU |
| Organic matter content | <1.5 |
| Free residual chlorine | polyamide composite membrane <0.1mg/L |
| Operating temperature | 4ºC~45ºC for composite membrane |
| Residual chlorine content | <0.1mg/L |
| Iron content | Fe<0.05 when dissolved oxygen >5mg/L |
| Silicon dioxide content | SiO2<100 |
Application of Reverse Osmosis System
Accessories Details Display
Consumable Replacement
Similar products you may be interested in
About Jufu Water Technology
Jufu Water Tech is a Hi-tech enterprise which specialized in integrating Research & Development, Manufacturing, Sales, Engineering installation and Consulting on water treatment and water purification equipment and technologies.
Jufu has strong power on know-how solution providing. The water business including water and wastewater treatment equipment supply, industrial process water, recycling and reuse solutions.
The main category of the products not limited to:
Ultrafiltration equipment, Nano-filtration equipment, Reverse osmosis equipment, EDI electric desalination equipment, Direct piped drinking water equipment, Medical purified water equipment, Water softening equipment, MBR integrated wastewater treatment equipment, Waste permeates treatment equipment.
Jufu Water Tech has supplied our water purification and water treatment equipment products and service to more than 30 provincial and cities in China domestic market based on our reliable quality, reasonable price and perfect after-sales service network. With the aim of "Water Treatment Equipment Expert Worldwide!", Jufu has successfully promoted its product into the global Water purification and water treatment field. Right now products from Jufu has successfully access to Southeast Asia, Middle East, South American and Africa market.
In the future, Jufu will continue to move forward with relentless efforts, and actively advocate "Safe, Clean and Pure" to achieve business vision of being a Top-class Water purification and water treatment products manufacturer, and an excellent Water engineering service provider!
