| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFEDI |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Item: | Pharmaceutical Water Purification System | Desalination Rate: | ≥99.5% |
|---|---|---|---|
| Power Supply: | 220V /380V/460V - 50Hz/60Hz Can Be Customized | Valve: | Automatic / Manual |
| Membranes Brand: | Dow, Hydranautics, Toray Or Vontron | Warranty: | 1 Year |
| Usage: | Distilled Water For Pharmaceutical | MOQ: | 1 Unit |
| High Light: | RO Reverse Osmosis System Electrodeionization,Distilled Water Treatment Plant,RO Reverse Osmosis System EDI |
||

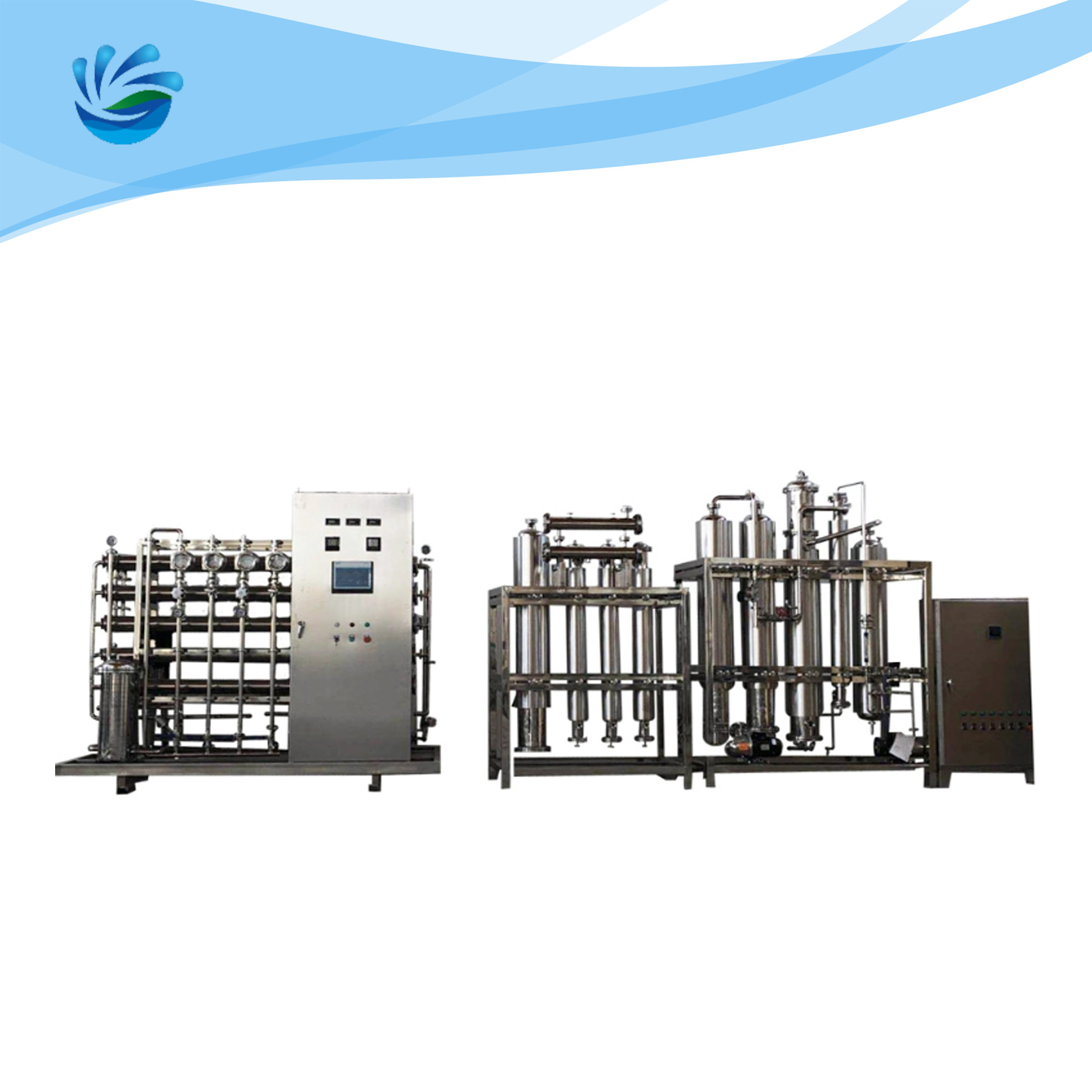

Water Treatment Plant RO Reverse Osmosis System Electrodeionization EDI
Description of Pharmaceutical Water Purification System
Pharmaceutical purified water has certain requirements for conductivity and ion content, etc. The primary water quality objectives are: conductivity ≤2 liters of s/cm, heavy metal ≤0.3 liters of g/LTOC≤500 liters of g/L.In order to reach the purified water quality requirements, the current primary choice of reverse osmosis.
Our medical purified water system uses bipolar reverse osmosis + EDI electrodeionization process, with high desalination rate, stable effluent quality and reliable performance, ensuring the stable operation of the system to a large extent.
Raw Water Quality Request
|
Raw water quality |
after RO treatment, conductivity< 30us/cm |
|
PH |
7.5~9.0 |
|
Temperature |
5~38℃ |
|
Inlet water pressure |
0.2~0.5Mpa |
|
Hardness(CaCo3) |
< 0.5ppm |
|
Organic matters |
TOC<0.5ppm |
|
Oxidizer |
C12<0.05ppm;O3<0.02ppm |
|
Silicon |
<0.5ppm(SiO2) |
|
Total CO2 |
<3ppm |
|
Particulates |
< 1μm |
Working Process of Pharmaceutical Water Purification System
Raw water → raw water pressure pump → multi-media filter → activated carbon filter → water softener → precision filter → first-stage reverse osmosis → PH adjustment → intermediate water tank → second-stage reverse osmosis (reverse osmosis membrane surface with positive charge )→Purification water tank→Pure water pump→UV sterilizer→Ozone generator→Microporous filter→Water point
Description of Our Water Treatment Equipment
The water treatment facilities contains multi-medium filter, active carbon filter, sodium-ion exchanger, precision filter, ozone generator, hollow fibre filter, RO system, etc, This system can be changed according to the customers request use for Mineral water production line,Purified water production line ,juice production line , carbonated beverage production line etc. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient.
The EDI device is a mature technology that replaces the mixed ion exchange bed after the application of the reverse osmosis system, and has stable water production quality, low operating cost, and convenient operation and management.
Small footprint and no harmful waste water discharge.The development direction of ultrapure water preparation technology has been adopted by major water treatment engineering companies all over the world. Especially in the cosmetic, demodialysis Laboratory pharmaceutical, semiconductor, power and optoelectronics industries have been widely used.
EDI Water Treatment Plant in Pharmaceutical Industry
1. System can produce water continuously and high degree automation.
2. No need chemical to regenerate, easy operation and maintenance.
3. Core components of ro system are imported USA membranes.
4. Automatic switch on when low water level, and switch off when high water level
5. System flushes RO membranes automatically, reducing membranes polluted speed.
6. Water shortage protection for multi-stage pump
7. Product water conductivity meter can monitor water quality online continuously.
8. Low operation cost and long life span
Why Use Reverse Osmosis Equipment in the Pharmaceutical Industry?
The quality of water determines the quality of medicines, so water is the key to making medicines. Reverse osmosis equipment is currently the best equipment for water treatment, and it is also the most advanced equipment in the field of water treatment today. Therefore, reverse osmosis equipment is indispensable in the field of medicine.
Reverse osmosis equipment is a method of selectively removing various bacterial viruses and salts using high-tech membranes under high pressure. The water treated by reverse osmosis equipment is impeccable, mainly from the layer filtration treatment of water. At the same time, the equipment is highly intelligent and the water quality is excellent. Therefore, the application of reverse osmosis equipment is very extensive and indispensable, not only in the pharmaceutical industry.
FAQ
Q: What is the application of EDI?
A: EDI technology is mainly used for deep desalination of reverse osmosis water, and it has been widely used in many fields such as electronics, electric power, biology, pharmacy, chemical industry and so on.
Q: How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
Q: What’s your payment terms?
A: Deposit in advance and balance before delivery.
