| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-50T |
| Minimum Order Quantity: | 1unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| RO Frame: | SUS304/Carbon Steel(optional) | Host Size: | 7200x1500x1800mm (can Be Customized) |
|---|---|---|---|
| Capacity: | 50T Per Hour | Warranty: | 1 Year |
| Power: | 45KW | Power Supply: | 220V/380V/460V-50Hz (can Be Customized) |
| Recovery Rate: | 70% | Desalination Rate: | ≥99.5% |
| Tank Material: | SS/FRP(optional) | Pipe Material: | U-PVC/Stainless Steel(optional) |
| High Light: | 50TPH Water Filter Reverse Osmosis System,reverse osmosis water system 50TPH,RO Water Filter Reverse Osmosis System |
||

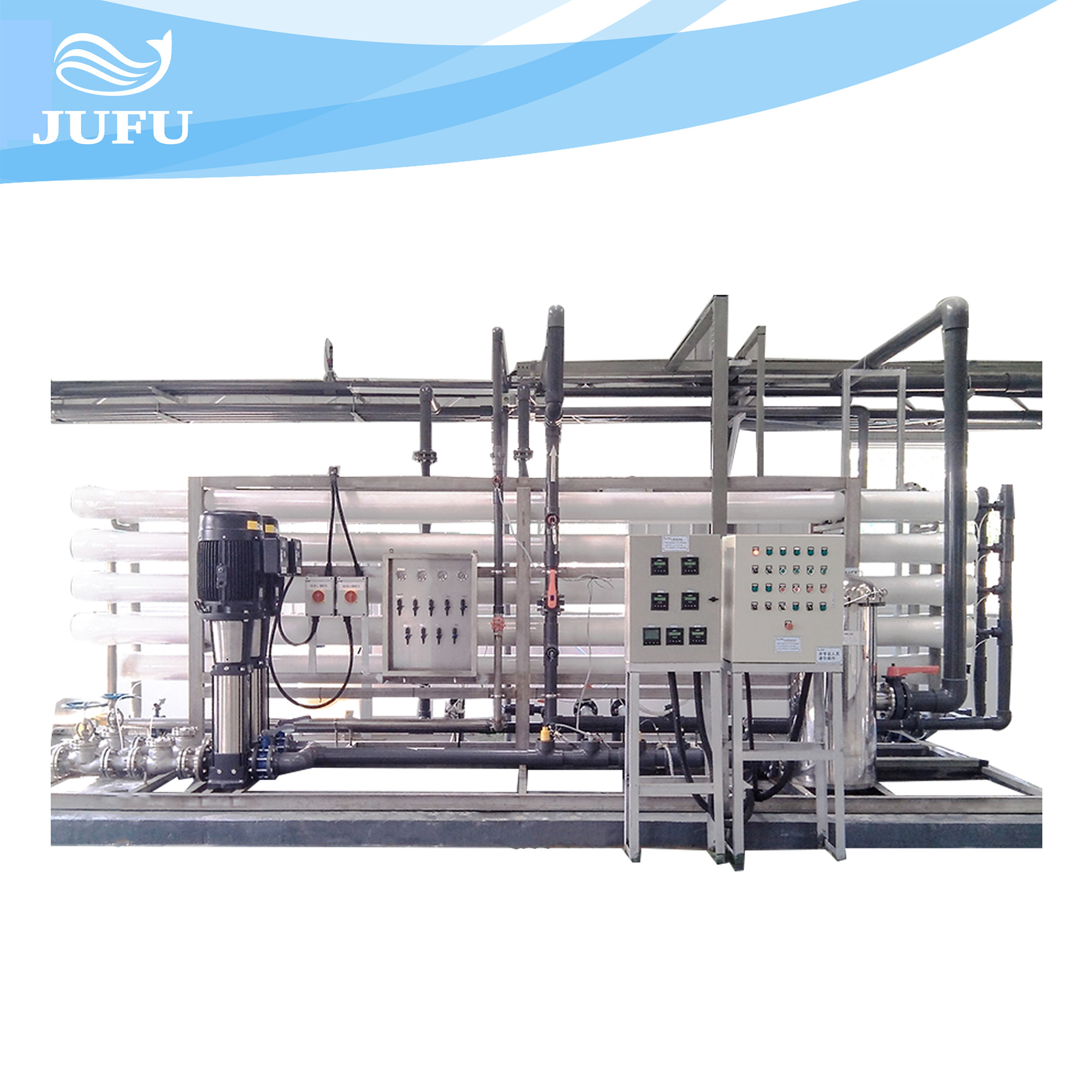

50TPH RO Water Treatment Plant Water Filter Reverse Osmosis System For Landfill Leachate
Reverse osmosis(RO water treatment system) is very effective in treating brackish water, surface water and groundwater for high flow and low flow applications. Some examples of industries that use reverse osmosis equipment include pharmaceuticals, boiler feed water, food and beverage, metalworking, and semiconductor manufacturing, to name a few. RO membranes remove contaminants based on their size and charge. Any contaminant with a molecular weight greater than 200 is likely to be removed by a properly functioning RO system (by comparison, water molecules have a MW of 18). Likewise, the greater the ionic charge of a contaminant, the more likely it will fail to pass through the RO membrane.
What is the Principle of RO Water Treatment System
When a pressure greater than osmotic pressure is applied on the saltwater side of the membrane, the flow of water is reversed and the water in the saltwater flows into the fresh side, a phenomenon called reverse osmosis.
Technical Parameters of RO Water Treatment System
| Model | JFRO-50T |
| Host Size | 7200x1500x1800mm (can be customized) |
| Power | 75KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 1.2-1.5MPa |
| Recovery Rate | 70% |
| Designed Water Inlet | 70t/h |
| Outlet Flow | 50t/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304/Carbon Steel (Optional) |
| Membrane Size | 8040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 54 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | FRP |
| Number of Membrane housing | 9 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
Process flow of RO Water Treatment System
Raw water pump → mechanical filter (quartz sand filter) → activated carbon filter → sodium ion exchanger (water softener) → security filter → high pressure pump → reverse osmosis → ozone sterilizer (ultraviolet sterilizer)
1. Original water pump: to provide pressure to quartz sand filter/activated carbon filter/water softener;
2. Quartz sand filter: glass fiber as the shell, filled with quartz sand, can filter large particle impurities, suspended matter, colloid, etc.. It is important to remove sediment; (Optional shell and stainless steel, carbon steel)
Activated carbon filter: glass fiber as shell, filled with activated carbon, remove color, odor, residual chlorine and organic matter; (Optional shell and stainless steel, carbon steel)
4. Safety filter: prevent large particles, bacteria and viruses from entering RO film, accuracy is 5μm;
5. Reverse osmosis system: can remove particles, colloid, organic impurities, heavy metal ions, bacteria, virus, heat source, etc. Hazardous substances and 99% dissolved salt;
6. High pressure pump: provide high pressure to reverse osmosis membrane;
7. Polypropylene filter cartridge: interception of large particles, bacteria and viruses with accuracy greater than 5μm. (Optional);
8. Folding filter cartridge: intercept large particles, bacteria and viruses with accuracy > 0.22μm. (optional).
Application range of RO Water Treatment System
1. Purification of pure water, distilled water, food and beverage water,
2. Preparation of pure water ultra-pure water in electronics, medicine, food and other industries,
3. Process engineering for separation, concentration and liquid decolorization in light textile, chemical and food industries,
4. Desalination of seawater and brackish water.
Good characteristics of reverse osmosis water treatment:
a, Fast reaction rate, short processing time.
b, A wide range of application, containing azo, carbon double bond, nitro, halogenated structure and other difficult to degrade organic matter has a good treatment effect.
c, Simple process, long service life, low operating cost, convenient operation and maintenance, stable treatment effect.
d, High chroma and COD removal rate, improve the biodegradability of RO concentrated water.
There are several consumables that need to be replaced regularly:
A. Quartz sand: replaced approximately every 36 months. 50kg/bag
B. Activated carbon: Replace it approximately every 15 months. 25kg/bag
C. Resin: Replaced approximately every 15 months. 25 l/bag
D. Polypropylene cartridge: approximately every 3-6 months to replace
Membrane element of RO Water Treatment System
FRP membrane shell of RO Water Treatment System
FAQ:
1, What are the inlet water quality requirements for ro water treatment system membrane components?
|
Items |
NTU | SDI | Residual chlorine(mg/L) | Fe2＋(mg/L) | TOC(mg/L) |
| Limits | ≤1 | ≤5 | ≤4 | ≤3 |
2. What is the material of ro water treatment system membrane?
Acetate membrane (CA) : mainly because of its resistance to chlorine, so it is still durable. But its suitable pH range is small, easy hydrolysis
Aromatic polyamide membrane (PA) : water almost can not have chlorine, only through a variety of pretreatment chlorine.
3. RO water treatment system configuration?
First-stage multi-stage process: if the recovery rate is not achieved in the first stage (50-65% in the first stage and 65-75% in the second stage), the multi-stage tandem filtration can be used. The effective cross-sectional area of each segment decreases. 2:2 and 2:3 and 4:2:1
Multi-stage process: when the first stage process cannot meet the effluent quality requirements (the first stage is generally ≤20μs/cm), the product water of the first stage process is sent to another reverse osmosis unit.
The arrangement of membrane components can be divided into series and parallel.
