One Stage RO Water Treatment Plant Water Purification Machine For Well Water

One Stage RO Water Treatment Plant Water Purification Machine For Well Water

Reverse osmosis water treatment system, generally after pretreatment, and then RO treatment. Through these treatments, 99% of dissolved salts and harmful substances, such as particles, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat sources, can be removed. The desalting rate of the system is 96-98%, and the effluent conductivity is less than or equal to 10μ S/cm. Our factory can produce all kinds of reverse osmosis and ultrafiltration membrane, reverse osmosis water purifier and equipment, ultrafiltration water purifier and equipment, water filter housing, stainless steel filter cartridge filter housing, water purifier, water softener, etc.

Working principle of RO Water Treatment System

"Reverse osmosis, also known as reverse osmosis (RO), is the use of pressure to separate the solvent from the solution through the reverse osmosis membrane. Because it is opposite to the direction of natural infiltration, it is called reverse osmosis. According to the different osmotic pressure of various materials, the reverse osmosis method greater than the osmotic pressure can achieve the purpose of separation, extraction, purification and concentration."

RO Water Treatment System Specification


























Flow Chart of RO Water Treatment System

Raw water pump → mechanical filter → activated carbon filter → Sodium ion exchanger → precision filter → high pressure pump → reverse osmosis → ozone sterilizer (UV)

Unique Characteristics of RO Water Treatment System

1. The single-membrane desalination rate can reach 99%, the desalination rate of the primary reverse osmosis system can generally be stabilized above 90%, and the desalination rate of the secondary reverse osmosis system can generally be stabilized above 98%.
2. Because the reverse osmosis equipment can effectively remove microorganisms, organic substances and inorganic substances such as iron and silicon, the quality of the effluent is higher than other methods.
3. The equipment has small footprint, compact structure, reliable operation and convenient operation.
4. The system is simple, the degree of automation is high, the fault is automatically shut down, and it has the function of automatic protection.
5. The recovery rate can reach more than 70%.
6. Save the chemical consumption cost, labor cost and waste water treatment cost generated by regeneration, and reduce environmental pollution.

Application of RO Water Treatment System

1, seawater desalination, brackish water desalination
2, industrial pure water, boiler supply water manufacturing
3, drinking water municipal water supply, drainage, water treatment
4, cooling circulating water, industrial, municipal sewage treatment
5, food, pharmaceutical and various processes of water, semiconductor ultrapure water manufacturing
6. Desalination of various aqueous solutions
7, surface water turbidity removal, wastewater treatment and decolorization
8. Municipal landscape and agricultural irrigation
9. Separation, concentration, separation and concentration of dairy products

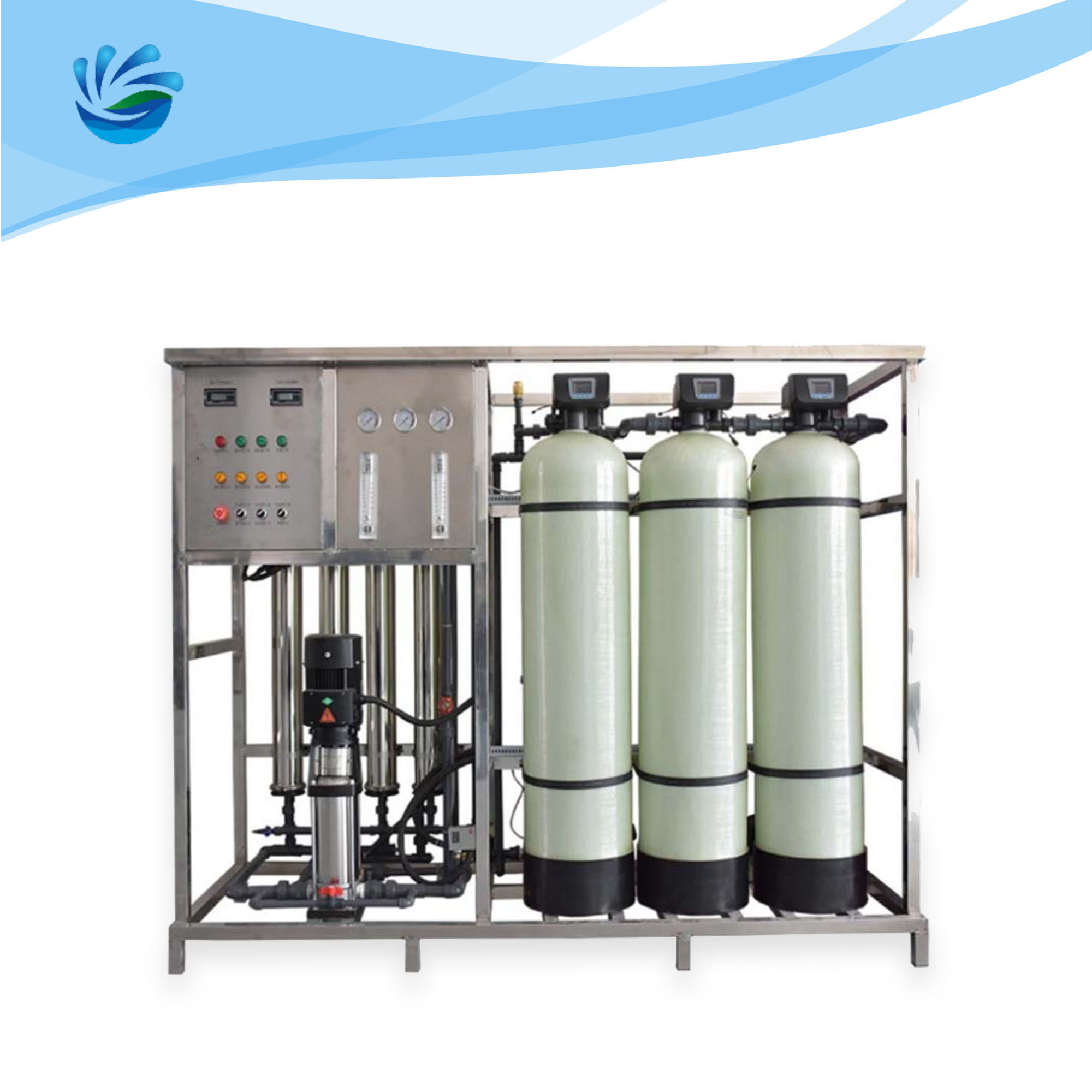

 Photos of RO Water Treatment System




Here's a guide to getting the best offer

1. What is the source water to be treated? Industrial wastewater, tap water, well water, groundwater or seawater? Is there a water quality analysis report for conductivity?
2. How much capacity water treatment system do you need? 1000 liters per hour, 5000 liters per hour or more?
3. What is the purpose of outputting purified water? Drinking water, food, beverage manufacturing, industrial use or medical production use?


FAQ:

1. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)

Model 4040 is designed by 0.25m3/h

Model 8040 is designed by 1-1.2m3/h

2. What is the material of mechanical filter?

Carbon steel, stainless steel, fiberglass

3, what are the multi-way control valves?

Manual control valve, automatic control valve

Multi - way control valve is divided into: filter valve and softening valve

Automatic control valve is divided into: time type and flow type.

Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean source, etc.
