| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO 9001 |
| Model Number: | JFEDI-500L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Rack Material: | SUS304/Carbon Steel (Optional) | Pipe Material: | U-PVC/ C-PVC/Stainless Steel (Optional) |
|---|---|---|---|
| Tank Material: | SS/FRP(Optional) | EDI Brand: | Ionpure/Canpure/GE (Optional) |
| Certification: | ISO9001 | Operating Pressure: | 0.1-0.3MPa |
| Warranty: | 1 Year | Country Of Origin: | China |
| High Light: | Industrial Ultra Pure Water Treatment System,RO Plant With EDI,Ultra Pure Water Treatment System |
||
Industrial Ultra Pure Water Treatment System RO Plant With EDI
EDI System
EDI system is a process in which mixed ion exchange resin is used to adsorb anions and cations in feed water, and at the same time, the adsorbed ions are removed through anion and cation exchange membranes respectively under the action of DC voltage.
|
Model |
Water production rate |
Ppm |
|
EDI-P-50L |
50L/H |
≥15MΩ•cm |
|
EDI-P-100L |
100L/H |
≥15MΩ•cm |
|
EDI-P-200L |
200L/H |
≥15MΩ•cm |
|
EDI-P-250L |
250L/H |
≥15MΩ•cm |
|
EDI-P＆F-0.5-HP |
0.5T/H |
≥15MΩ•cm |
|
EDI-P＆F-1.0-HP |
1.0T/H |
≥15MΩ•cm |
|
EDI-P＆F-2.0-HP |
2.0T/H |
≥15MΩ•cm |
|
EDI-P＆F-3.0-HP |
3.0T/H |
≥15MΩ•cm |
|
EDI-P＆F-4.0-HP |
4.0T/H |
≥15MΩ•cm |
EDI system consists of three elements
EDI technical standard, EDI software and hardware, and EDI technical communication network. The EDI device consists of a booster pump, an electrodeionization (EDI) membrane block, a DC stabilized power supply, a flow meter, and a meter.
Technical Specifications of EDI Water Treatment Plant
|
EDI System |
|
|
Model |
JFEDI-500L |
|
Host Size |
can be customized |
|
Operating Pressure |
0.1-0.3MPa |
|
Recovery Rate |
95% |
|
Rack Material |
SUS304/Carbon Steel (Optional) |
|
Pipe Material |
U-PVC/ C-PVC/Stainless steel (Optional) |
|
EDI Brand |
Ionpure/Canpure/GE (Optional) |
|
Raw Water Pump |
CNP/NYP/GRUNDFOS (Optional) |
|
Tank Material |
SS/FRP(Optional) |
|
Outlet Flow |
500L/h |
|
Power Supply |
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
The Working Process of EDI Water Treatment Plant
In the EDI membrane block, a certain number of EDI units are separated by grids to form a concentrated water chamber and a fresh water chamber. In turn, negative/positive electrodes are provided at both ends of the cell. Driven by direct current, the anions and cations in the water flow through the fresh water chamber migrate to the concentrated water chamber through the anion and cation exchange membrane respectively and are removed in the fresh water chamber. As shown below:
What is the most important part of EDI work?
EDI membrane stack is the core of EDI work. The membrane stack is a unit composed of anion and cation exchange membranes, thin and concentrated water compartment separators, ion exchange resins and positive and negative electrodes arranged and clamped according to certain rules. The fresh water chamber in the membrane stack is equivalent to a mixed bed. The ion exchange resins used are sulfonic acid type cation resin and quaternary amine type anion resin. The resin in the fresh water chamber must be packed tightly.

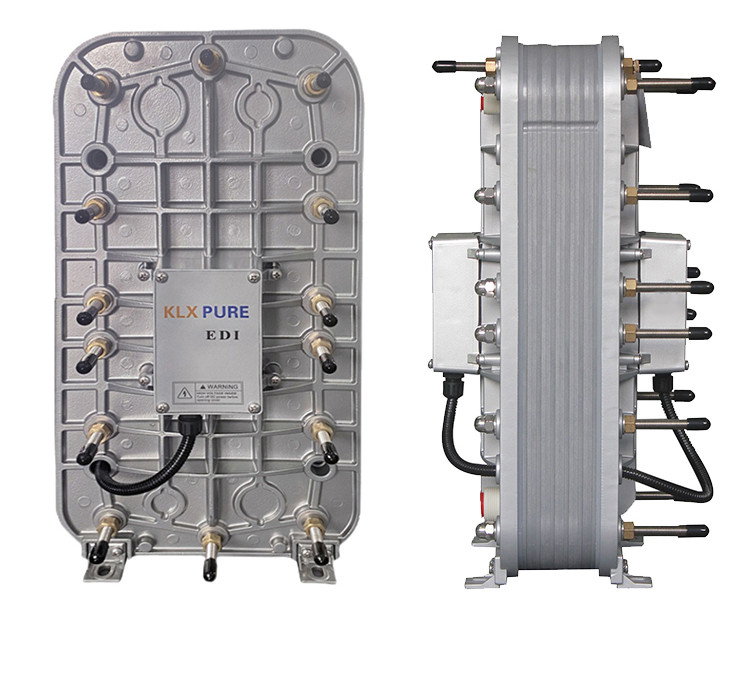

EDI Modules

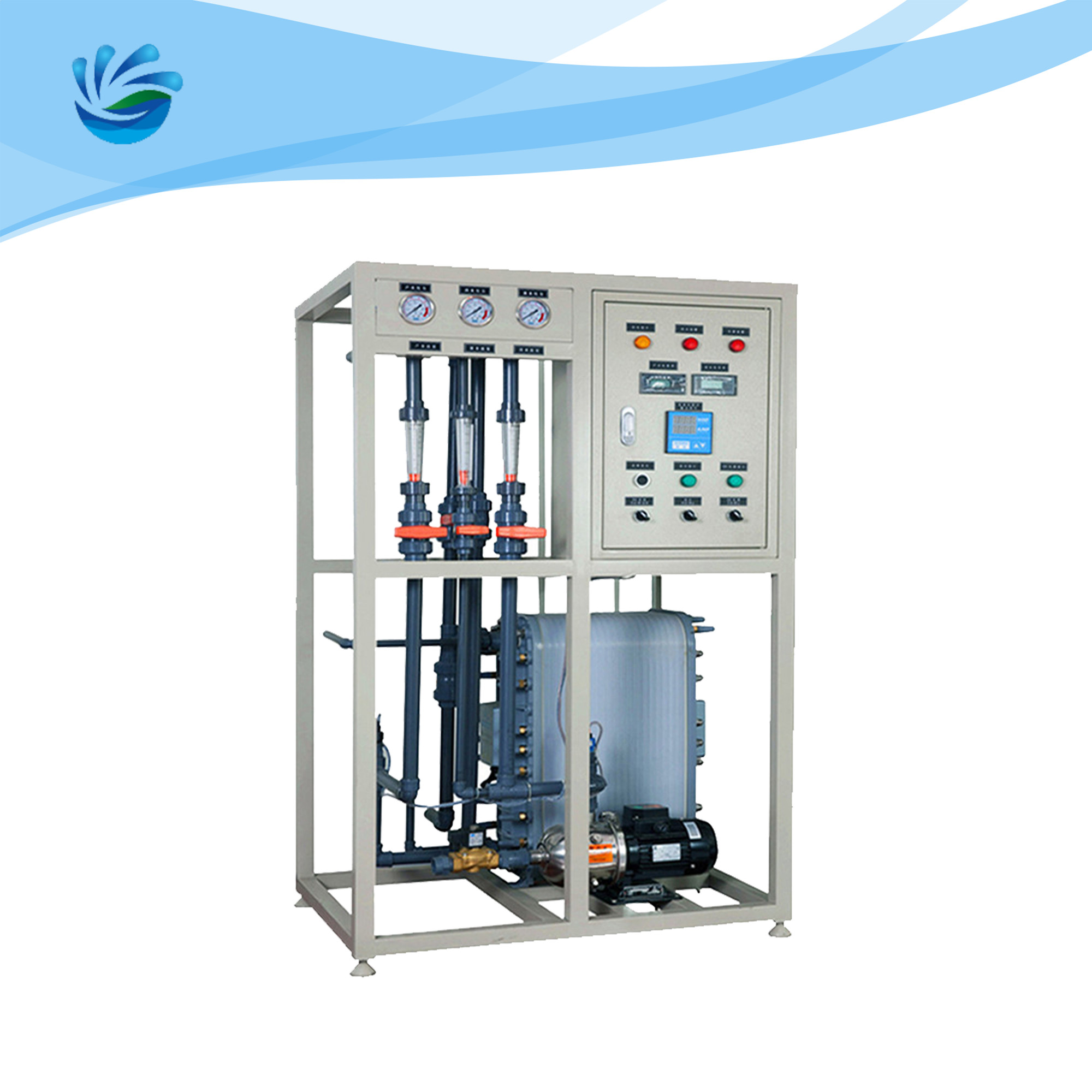

Product Photos
Application of EDI Water Treatment Plant
⊙Power plant chemical water treatment
⊙Ultrapure water for electronics, semiconductor and precision machinery industries
⊙ Pharmaceutical industry process water
⊙ Preparation of food, beverages and drinking water
⊙ Desalination of sea water and brackish water
⊙ Water for fine chemicals and advanced disciplines
⊙ Preparation of high purity water required by other industries
Our advantages, Jufu Water Purification Five Guarantees:
01 Focus on water treatment equipment for 14 years, the quality is trustworthy;
02 The product passed the ISO9001 quality system standard production
03 Provide free water treatment solutions;
04 Door-to-door installation service can be provided;
05 Provide lifetime after-sales service.
Pre-sale service:
1. Inquiry and purchase consultation.
2. Raw water test support.
3. Visit our factory
After-sales service:
1. Training how to install the machine, training how to use the machine
2. Lifetime online and telephone technical support services.
3. Overseas mechanical maintenance engineer on-site service installation or maintenance.
Here's a guide to getting the best offer
1. What is the source water to be treated? Industrial wastewater, tap water, well water, groundwater or seawater? Is there a water quality analysis report for conductivity?
2. How much capacity water treatment system do you need? 1000 liters per hour, 5000 liters per hour or more?
3. What is the purpose of outputting purified water? Drinking water, food, beverage manufacturing, industrial use or medical production use?
