| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-2000L |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/P, D/A, T/T, Western Union, MoneyGram |
| Item: | Pharmaceutical Water Purification System | Desalination Rate: | ≥99.5% |
|---|---|---|---|
| Production Capacity: | 2000liters Per Hour | Valve: | Automatic / Manual |
| Membranes Brand: | Dow, Hydranautics, Toray Or Vontron | Warranty: | 1 Year |
| MOQ: | 1 Unit | Tank Material: | SS/FRP (optional) |
| High Light: | Reverse Osmosis Plant Pharmaceutical,2TPH Double Stage RO System,Water Purifier Reverse Osmosis Plant |
||

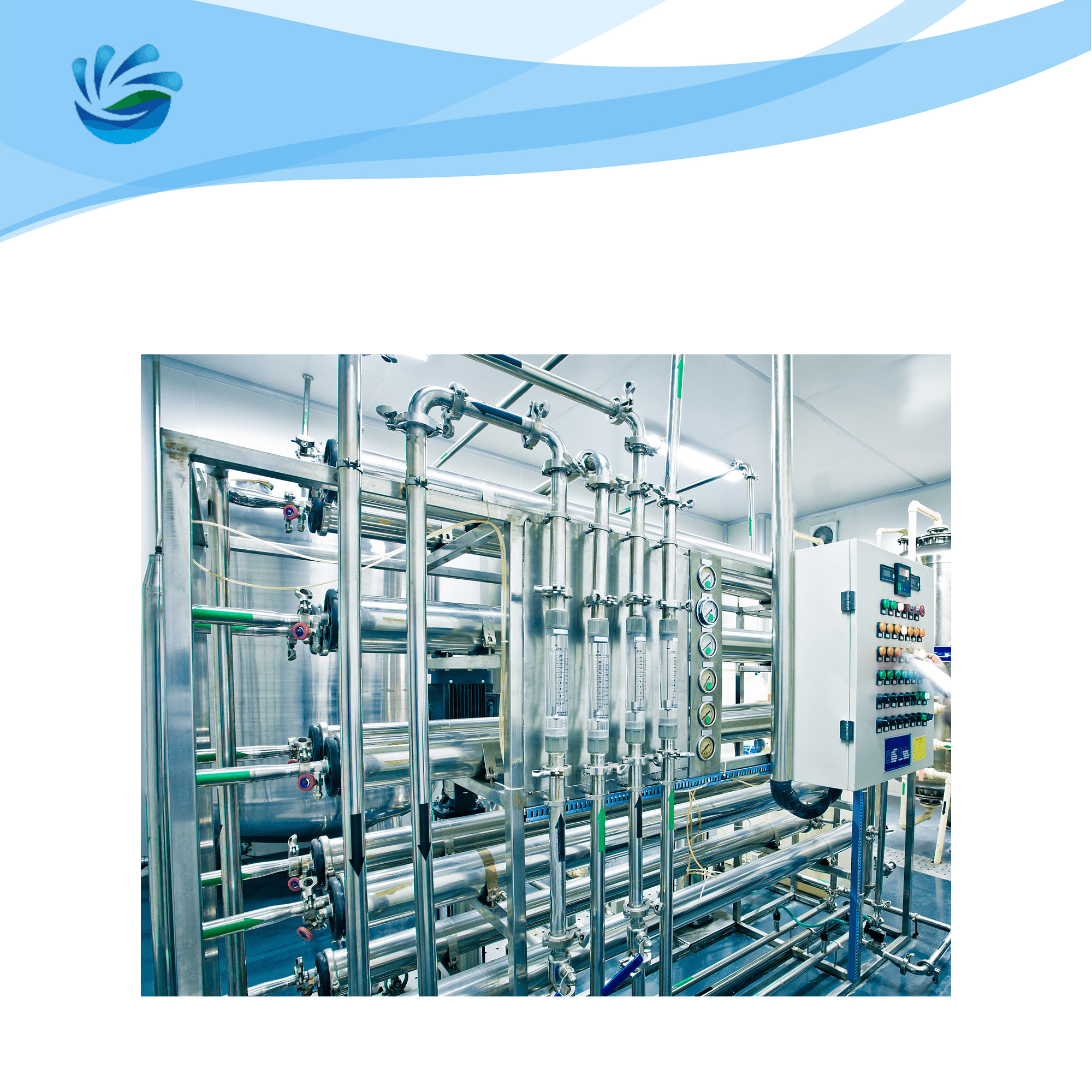

2TPH Double Stage RO Water Purifiers Reverse Osmosis Plant for Pharmaceutical
Description of Pharmaceutical Water Purification System
The principle of RO water treatment system is that raw water passes through reverse osmosis membrane under high pressure, and the solvent in water diffuses from low concentration to high concentration to achieve the purpose of separation, purification and concentration. Reverse osmosis water treatment system can remove bacteria, viruses, colloid, organic matter and more than 99% soluble salts in water. The equipment has the characteristics of low operation cost, simple operation, high automation degree and stable effluent quality. Compared with other traditional water treatment methods, it has obvious advantages and is widely used in water treatment related industries.
Main Process of Two Stage Reverse Osmosis System with EDI System
| Raw Water Pump | Provide the pressure to silica sand filter/active carbon filter; |
| Quartz Sand Filter | Get rid of turbidity, suspended matter, organic matter, colloid, ect; |
| Active Carbon Filter | Remove the color, free chloride, organic matter, harmful matter, ect; |
| Softener or Antiscale Dosing System | Reduce the hardness of water |
| Micron Filter | Prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity; |
| High Pressure Pump | Provide the high pressure to RO membrane; |
| Two Stage RO System | RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of impurity; |
| EDI System | Make the electrical conductivity reduce to 0.1 m/cm by ion exchange; |
| Electrical Control System | PLC, touch screen. |
Equipment Process of Pharmaceutical Water Purification System
Raw water → raw water pressure pump → multi-media filter → activated carbon filter → water softener → precision filter → first-stage reverse osmosis → PH adjustment → intermediate water tank → second-stage reverse osmosis (reverse osmosis membrane surface with positive charge )→Purification water tank→Pure water pump→UV sterilizer→Ozone generator→Microporous filter→Water point
Features of Pharmaceutical Water Purification System
1. This system occupy little space, easy to operate, wide application range.
2. Reverse osmosis desalting rate ≥99%, machine desalting rate ≥97%. 98% of organic matters, colloids and bacteria can be removed.
3. Finished water under good electric conductivity, one stage ≤10μs/cm, two stage around 2-3μs/cm, EDI≤0.5μs/cm(based on raw water≤300μs/cm).
Pharmaceutical Water Concept
1. Purified water is obtained from specially designed purified water equipment. This type of water source is of higher quality and other water quality standards. It is characterized by colorless, odorless, tasteless, clear liquid without any impurities, such as ions, microorganisms, organic matter, bacteria, viruses, etc.
2. Purified water can be used as a solvent or test water for formulating common pharmaceutical preparations, as well as pharmaceutical raw materials and cleaning water for pharmaceutical equipment. Its quality standards have a great relationship with people's life and health, so the quality of purified water must be better than other.
3. Other indicators are in line with the physical and chemical indicators required in the latest edition of the Chinese Pharmacopoeia GMP certification.
Ro Water Treatment Plant Produce Water for Pharmaceutical Use in Drug Industry
1. Feed water: Meet the sanitary standards for drinking water (pressure 0.2-0.5MPa); conductivity ≤ 500μs/cm; total hardness <300PPM
2. Power supply : AC380/220V 50HZ, three-phase five-wire, reliable grounding
3. Temperature: 5-40 °C; Atmospheric pressure: 700Kpa-1060Kpa; Relative humidity: ≤ 80%
4. Desalination rate ≥99%
5. The maximum operating pressure: ≤ 1.5Mpa
6. Installation site requirements: Smooth ground with a waterproof layer, a smooth floor drainage
7. Avoid direct sunlight, strong magnetic field interference environment
