| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFA-500 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Wooden cases |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | D/A, D/P, T/T, L/C, Western Union, MoneyGram |
| Capacity: | 6000L/H | Condition: | New |
|---|---|---|---|
| Resin Tank(mm): | 500*1900*1 | Salt Tank(mm): | 500*900*1 |
| Weight Of Filled Resin(kg): | 160 | Inlet & Outlet Diameter: | 1-1.5 Inch |
| MOQ: | 1 Unit | Country Of Origin: | China |
| High Light: | 6000LPH Water Softener System,Water Filtration Plant ISO,Automatic Water Softener System |
||

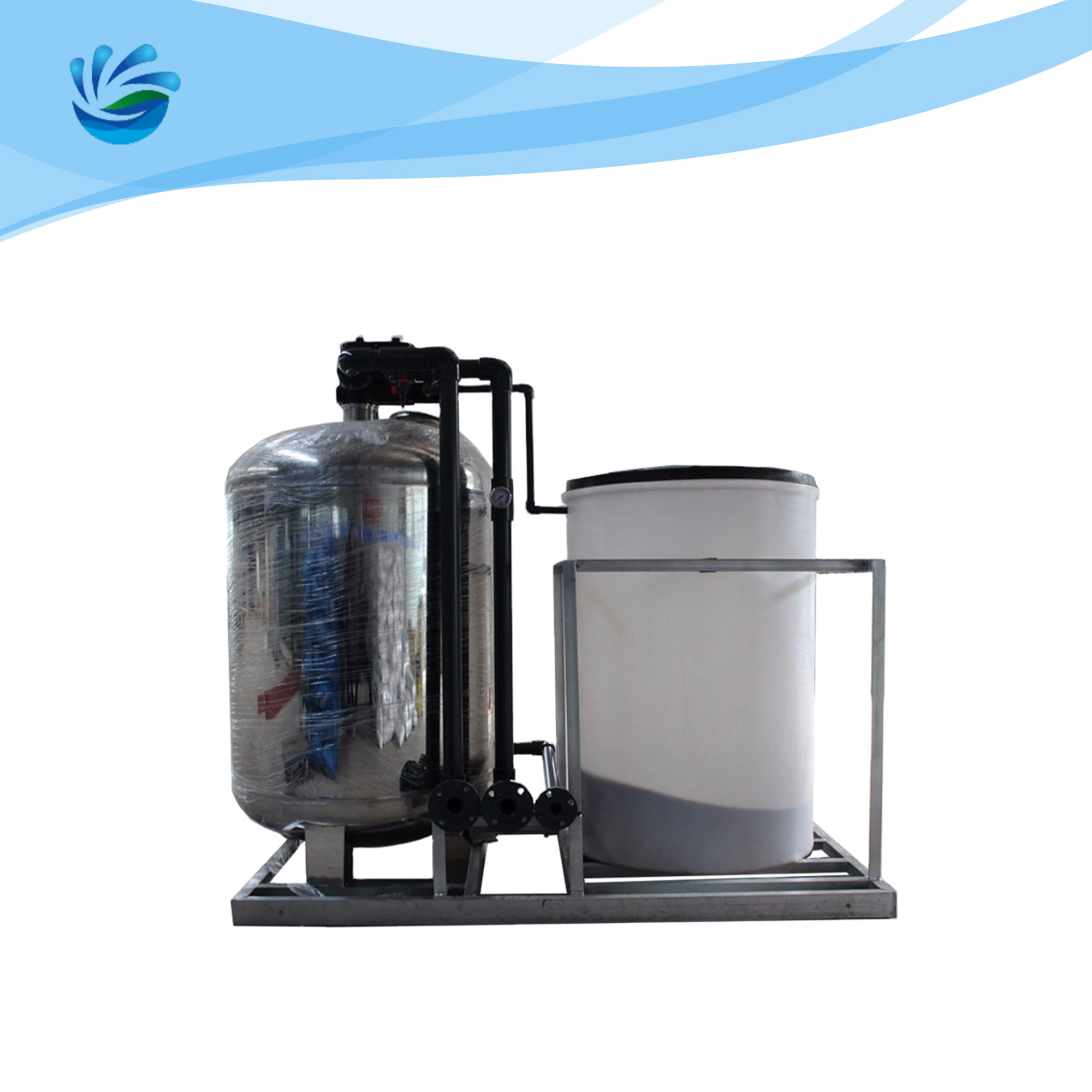

6000LPH Automatic Water Softener System Water Filtration Plant
Product Introduction of Water Softener Treatment System
Softening water equipment is to use Yang resin to soften the main purpose of the source water is to let
The resin adsorbs calcium and magnesium ions (the main components of scale formation) in water and reduces the source water
Hardness, and can be intelligent resin regeneration, recycling.
Water Softener And Filtration System Includes:
PE Plastic:
A: It is odorless, non-toxic, smooth, low temperature resistance, corrosion resistance, good electrical insulation, and CNPC supply.
B: Harmless to the human body.
C: Can work in low temperature, long life.
D: Can be filled with various filter materials.
Fiberglass:
A: Reinforced alkali-free fiberglass.
B: Strong anti-oxidation ability, long life of tank.
Epoxy Resin:
A: Strong anti-oxidation ability, long life of tank.
B: Certified by US NSF, with guaranteed quality.
C: Bright color.
Technical Parameters of Water Softener Treatment System
| No. | Model | Producing Capacity m3/h | Resin Tank(mm) D×H×unit | Salt Tank(mm) D×H×unit | Filled resin amount(kg) | Inlet & outlet Diameter (Inch) | Dimension L×W×H(mm) | Operating Mode |
| 1 | JFA-200 | 1 | 200×1200×1 | 300×600×1 | 20 | 3/4 | 1000×500×1800 | Single valve, single tank system, production stopped for 2 hours during regeneration, flow rate/time type |
| 2 | JFA-250 | 1 | 250×1400×1 | 300×600×1 | 40 | 1 | 1000×500×1800 | |
| 3 | JFA-300 | 2 | 300×1650×1 | 400×800×1 | 60 | 1 | 1050×540×1900 | |
| 4 | JFA-400 | 4 | 400×1650×1 | 400×800×1 | 100 | 1 | 1150×540×1900 | |
| 5 | JFA-500 | 6 | 500×1900×1 | 500×900×1 | 160 | 1-1.5 | 1450×750×2100 | |
| 6 | JFA-600 | 8 | 600×1900×1 | 660×1200×1 | 240 | 1.5 | 1600×750×2300 | |
| 7 | JFA-750 | 10 | 750×1900×1 | 760×1200×1 | 380 | 1.5 | 1600×760×2300 | |
| 8 | JFA-900 | 15 | 900×1900×1 | 900×1200×1 | 550 | 2 | 1800×900×2400 | |
| 9 | JFA-1000 | 20 | 1000×2000×1 | 1000×1200×1 | 750 | 2 | 2300×1100×2650 | |
| 10 | JFA-1200 | 30 | 1200×2000×1 | 1200×1500×1 | 1000 | 3 | 2500×1400×2750 | |
| 11 | JFA-1400 | 40 | 1400×2100×1 | 1370×1630×1 | 1500 | 3 | 3000×1400×2850 |
Product Workflow Chart of Water Softener Treatment System
Plant and Project Case Diagrams of Water Softener Treatment System
FAQ:
Q: What’s the type of your company? Manufacturer or trade agent?
A: We are a high-tech manufacturer engaged in water treatment industry for nearly 20 years, specializing in water treatment, water purification equipment and technology research and development, manufacturing, sales, engineering installation and consulting.
Q: What is the lead time?
A: Typically, the production cycle is 3-5 weeks, depending on your project.
Q: How long do you guarantee it?
A: We offer a one-year warranty. Under the correct use and maintenance, the service life of the product itself is about 5 years.
