| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-1000L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| RO Frame: | SUS304 | Capacity: | 1000L Per Hour |
|---|---|---|---|
| Warranty: | 12 Months Warranty And Lifetime Service | Recovery Rate: | 50% |
| Desalination Rate: | ≥99.5% | Membrane Size: | 4040 |
| Nbr Of Membranes: | 4 | Power: | 2.2KW |
| High Light: | Pharmaceutical RO Water Treatment Plant,purified water machine 1000LPH,RO Water Treatment Plant 1000LPH |
||

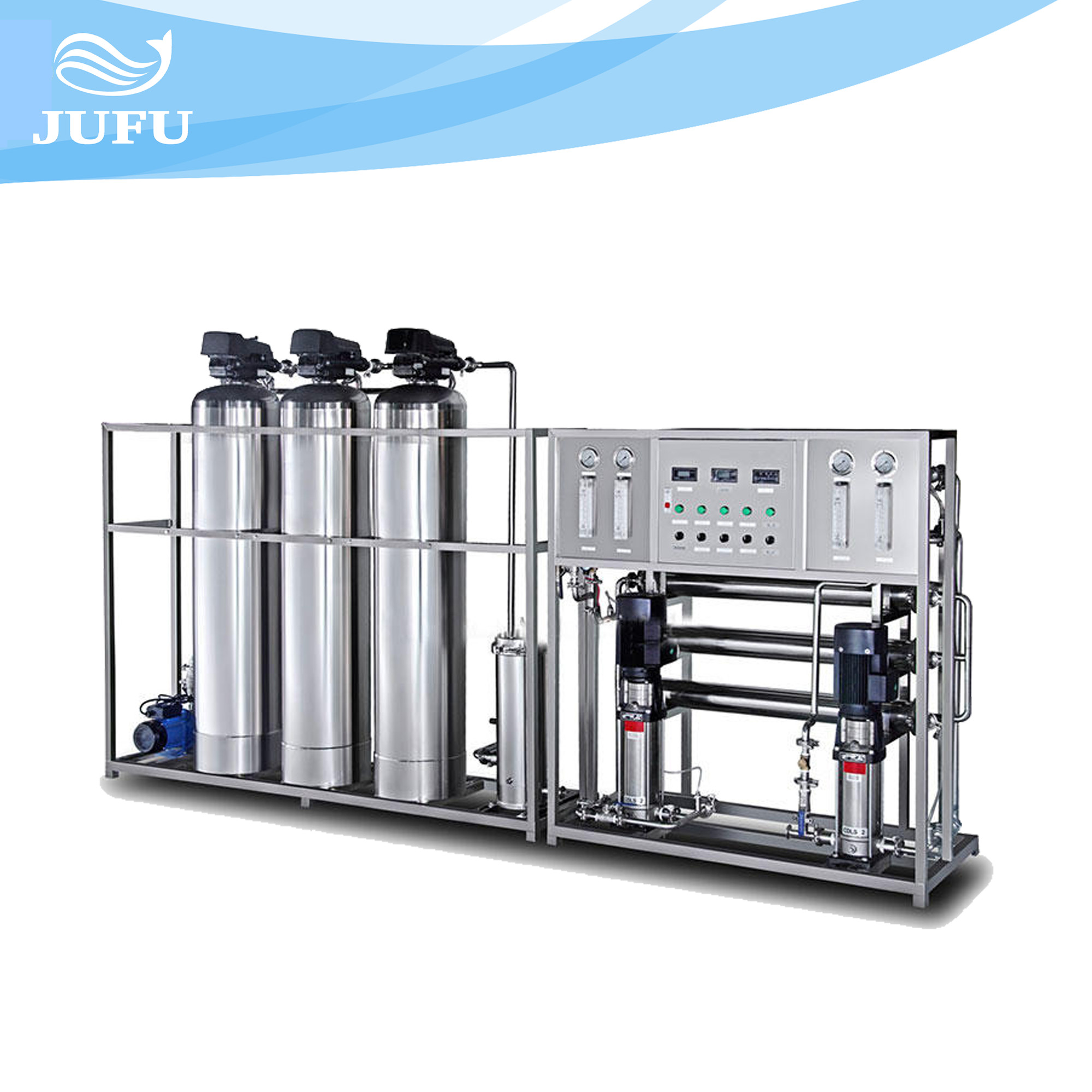

RO Water Treatment Plant Purified Water Machine for Pharmaceutical
RO Water Treatment System Introduction:
The desalination rate of reverse osmosis equipment is high, and the desalination rate of single membrane can reach 99%. Reverse osmosis water treatment system runs stably, desalting rate and recovery rate are high. Simple operation, small maintenance workload, compact structure, saving installation space. High efficiency and low energy consumption, no secondary pollution, low operating cost, the application of membrane separation technology, removal of charged ions, inorganic matter, colloidal particles, bacteria and organic matter in water.
Components and Principles of RO Water Treatment System
The reverse osmosis system includes high pressure pump, reverse osmosis membrane element, pressure vessel (membrane shell), cleaning system and control instrument; the principle of reverse osmosis water treatment system is: when a pressure greater than osmotic pressure is applied on the brine side of the membrane, the water The direction of flow will be reversed, and the water in the brine will flow into the fresh water side, a phenomenon called reverse osmosis.
Technical Specifications of RO Water Treatment System
| Model | JFRO-1000L |
| Host Size | 1000x600x1600mm (can be customized) |
| Power | 2.2KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8~1.2MPa |
| Recovery Rate | 50% |
| Designed Water Inlet | 2000L/h |
| Outlet Flow | 1000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 4040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 4 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | FRP |
| Pipe Material |
U-PVC/ Stainless steel (Optional) |
Application fields of RO Water Treatment System
1. Water for food and beverage industries
Beverages, dairy, brewing, preparation water, low-level blending water, pure draft beer filtration
2. Bottled and bottled drinking water
Drinking pure water, natural water, mineral water, mineralized water
3. Family and group water purification equipment
High-quality water supply network systems and swimming pool water purification equipment for buildings, communities, hotels, airports, real estate properties
Process flow of RO Water Treatment System
Original water pump → mechanical filter (quartz sand filter)→ activated carbon filter → sodium ion exchanger (water softener)→ security filter → high pressure pump → reverse osmosis → ozone sterilizer (ultraviolet sterilizer)
Photos and details of RO Water Treatment System
Stainless steel membrane shell of RO Water Treatment System
FRP membrane shell for RO Water Treatment System
FAQ:
1. What is the shell film material and specification of ro water treatment system?
Material of membrane case: stainless steel and fiberglass (FRP)
Specification of membrane shell: four inch membrane shell 4040 (one core to four core)
8 inch membrane case 8040 (one to seven cores)
Water inlet: end water inlet, side water inlet
2. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)
Model 4040 is designed by 0.25m3/h
Model 8040 is designed by 1-1.2m3/h
3. What is the material of mechanical filter?
Carbon steel, stainless steel, fiberglass
