| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-6000L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Type: | Reverse Osmosis | Capacity: | 6000L/H |
|---|---|---|---|
| Warranty: | 12 Months | After-sales Service Provided: | Online Support |
| Product Name: | RO Water Treatment System | Function: | Wate Purification |
| Voltage: | 110V/220V/380V Can Be Customized | Membrane Size: | 4040 |
| High Light: | 6TPH RO Water Treatment Equipment,Water Reverse Osmosis Purifier,6000L/H RO Water Treatment Equipment |
||

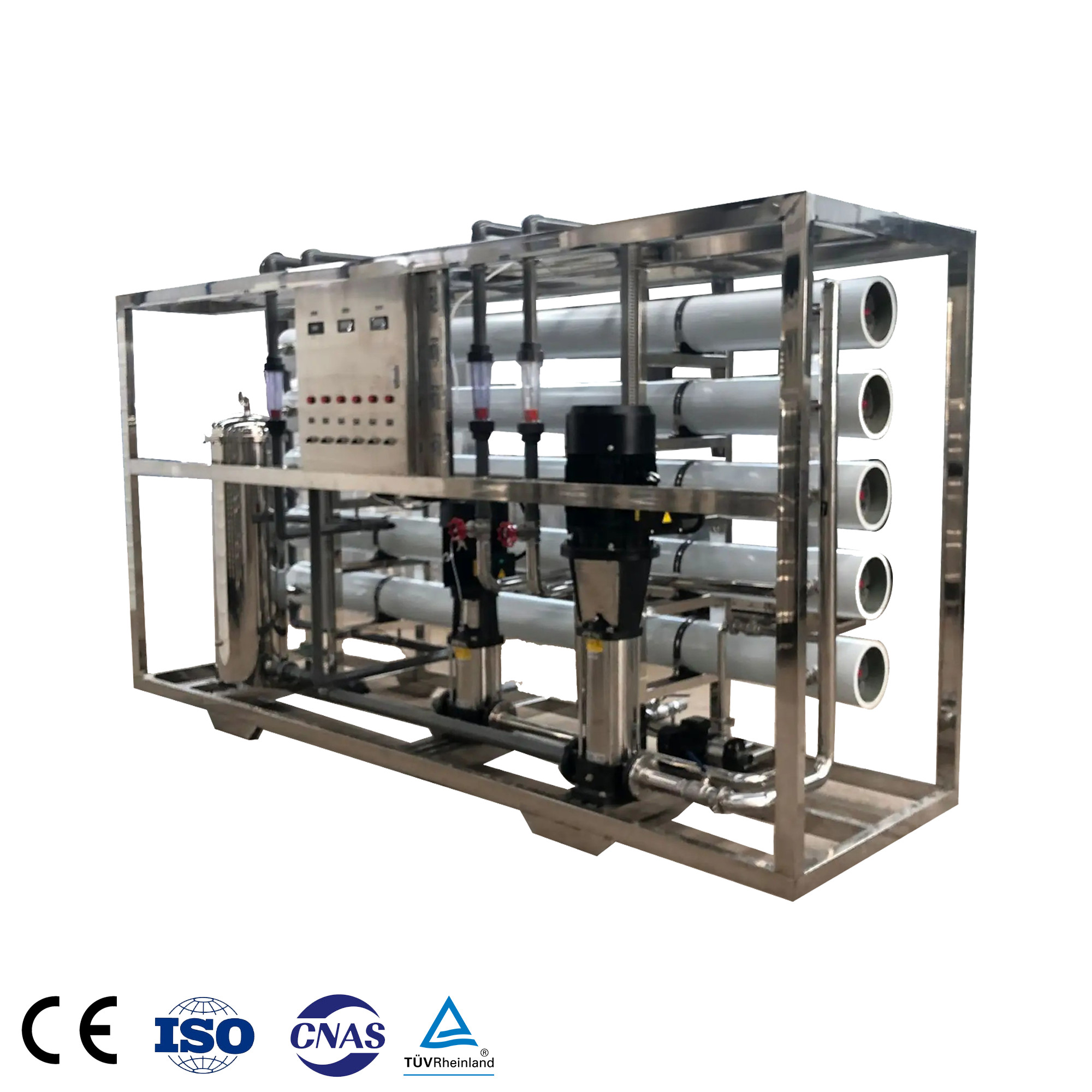

6TPH RO Water Treatment Equipment Reverse Osmosis Purifier Water System
Reverse osmosis technology process
RO membrane itself is sensitive to the pH, temperature and specific chemicals of the influent. The water quality of the influent strictly requires the pH value range of 4~10, temperature <40℃, silt density index SDI<5, free chlorine <0.1mg·L-1, turbidity <1, iron content <0.1mg·L-1, etc. In order to meet the requirements of RO membrane water, raw water before entering the RO membrane system must first preprocessing (sedimentation, coagulation and microfiltration, ultrafiltration, activated carbon absorption, pH adjustment, etc.), then the pump pressure into the membrane module, the pressure under the action of raw water as water production through the RO membrane, and inorganic salts, organic matter and particle by RO membrane intercept on the other side of the membrane to form thick liquid. The concentrated solution can be recycled or reprocessed according to the requirements of the specific process. RO can be used with ultrafiltration, nanofiltration and other membrane devices to form an integrated membrane device.
Working Principle of Reverse Osmosis Water Treatment System:
When a pressure greater than osmotic pressure is applied on the saltwater side of the membrane, the flow of water is reversed and the water in the saltwater flows into the fresh side, a phenomenon called reverse osmosis.
Technical Specifications of Reverse Osmosis Water Treatment System:
| Model | JFRO-6000L |
| Host Size | 2700x600x1600mm (can be customized) |
| Power | 3KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 67% |
| Designed Water Inlet | 3000L/h |
| Outlet Flow | 2000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 4040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 8 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | SS/FRP |
| Number of Membrane housing | 4 |
| Pipe Material |
U-PVC/ Stainless steel (Optional)
|
Process flow of reverse osmosis water treatment system:
Raw water → original water tank → original water pump → multi-media filter (quartz sand filter)→ activated carbon filter → soft water processor → precision filter → high pressure pump → first stage reverse osmosis (RO) device → pure water tank → high pressure pump → second stage reverse osmosis → ultraviolet sterilization device → water point
Reverse osmosis membrane contamination:
RO membrane contamination is another important factor that restricts the wide application of RO technology. Membrane contamination not only affects the stable operation and effluent quality of the membrane, but also shortens the service life of the membrane. For membrane contamination, the main methods are:
(1) Improve the pretreatment system to ensure the RO system inlet water quality;
(2) RO membrane cleaning, chemical analysis of membrane pollutants, choose the best cleaning agent and cleaning method;
(3) Regularly stop and maintain the RO membrane device.
FAQ:
1, What are the inlet water quality requirements for ro water treatment system membrane components?
|
Items |
NTU | SDI | Residual chlorine(mg/L) | Fe2＋(mg/L) | TOC(mg/L) |
| Limits | ≤1 | ≤5 | ≤4 | ≤3 |
2. What is the material of ro water treatment system membrane?
Acetate membrane (CA) : mainly because of its resistance to chlorine, so it is still durable. But its suitable pH range is small, easy hydrolysis
Aromatic polyamide membrane (PA) : water almost can not have chlorine, only through a variety of pretreatment chlorine.
3. RO water treatment system configuration:
First-stage multi-stage process: if the recovery rate is not achieved in the first stage (50-65% in the first stage and 65-75% in the second stage), the multi-stage tandem filtration can be used. The effective cross-sectional area of each segment decreases. 2:2 and 2:3 and 4:2:1
Multi-stage process: when the first stage process cannot meet the effluent quality requirements (the first stage is generally ≤20μs/cm), the product water of the first stage process is sent to another reverse osmosis unit.
The arrangement of membrane components can be divided into series and parallel.
