| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-36T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Type: | One-Stage RO Water Treatment System | Capacity: | 36T/H |
|---|---|---|---|
| Warranty: | 1 Year | Application: | Underground Water |
| Product Name: | 36T Water Treatment System | Voltage: | 110V/220V/380V Can Be Customized |
| Name: | Advanced Techo Drinking Water RO Water Treatment Plant | Power: | 45KW |
| High Light: | RO Water Purifier Machine,45KW Water Purifier Machine,36T/H RO Water Treatment System |
||
36TPH Industrial RO Water Treatment System Water Purifier Machine
The latest development of RO membrane includes inorganic membrane, hybrid membrane and novel organic membrane. Theoretically, inorganic membrane has high ion interception performance, but its high cost and harsh preparation conditions are not conducive to industrial application. Hybrid membrane combines the advantages of organic materials and inorganic materials, which has a good application prospect in improving membrane separation performance and anti-pollution, and has great development potential, which needs further theoretical research. The preparation of new organic membranes is still in the primary stage, and the main purpose is to improve membrane flux and chemical stability, but no breakthrough has been achieved.
Technical Specifications of RO Water Treatment System
| Model | JFRO-36T |
| Host Size | 6000x1200x1800mm (can be customized) |
| Power | 45KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 1.2~1.5MPa |
| Recovery Rate | 70% |
| Designed Water Inlet | 57t/h |
| Outlet Flow | 40t/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304/Carbon Steel (Optional) |
| Membrane Size | 8040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 42 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | FRP |
| Number of Membrane housing | 7 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
RO Water Treatment System Process Flow
Raw water pump - sand filter - carbon filter - cartridge filter - high pressure pump -RO membrane host machine -RO cleaning system
RO Water Treatment System Features
(1) Fast reaction rate, short processing time.
(2) a wide range of application, containing azo, carbon double bond, nitro, halogenated structure and other difficult to degrade organic matter has a good treatment effect.
(3) Simple process, long service life, low operating cost, convenient operation and maintenance, stable treatment effect.
(4) High chroma and COD removal rate, improve the biodegradability of RO concentrated water.

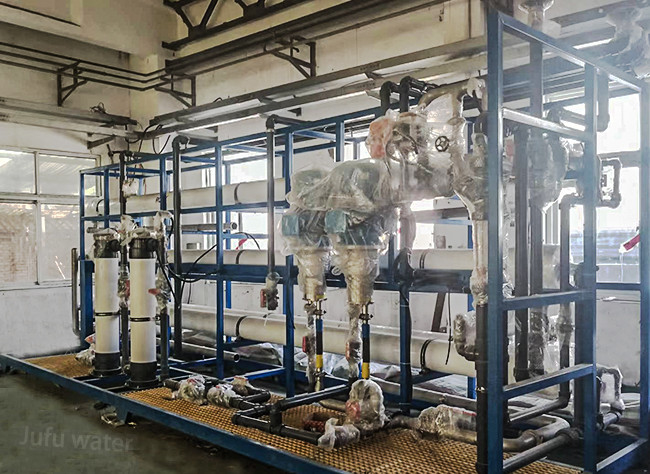

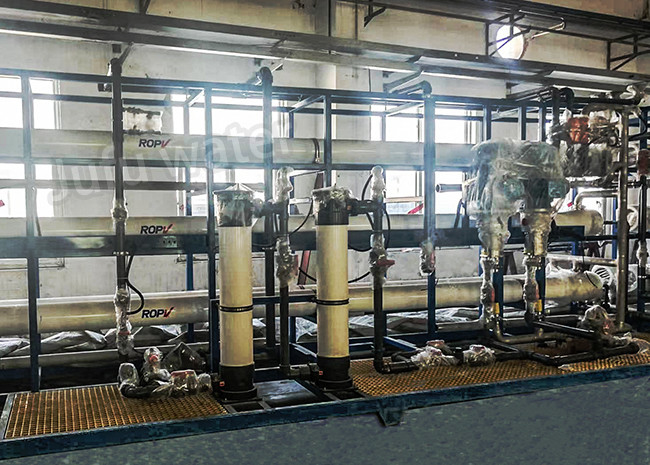

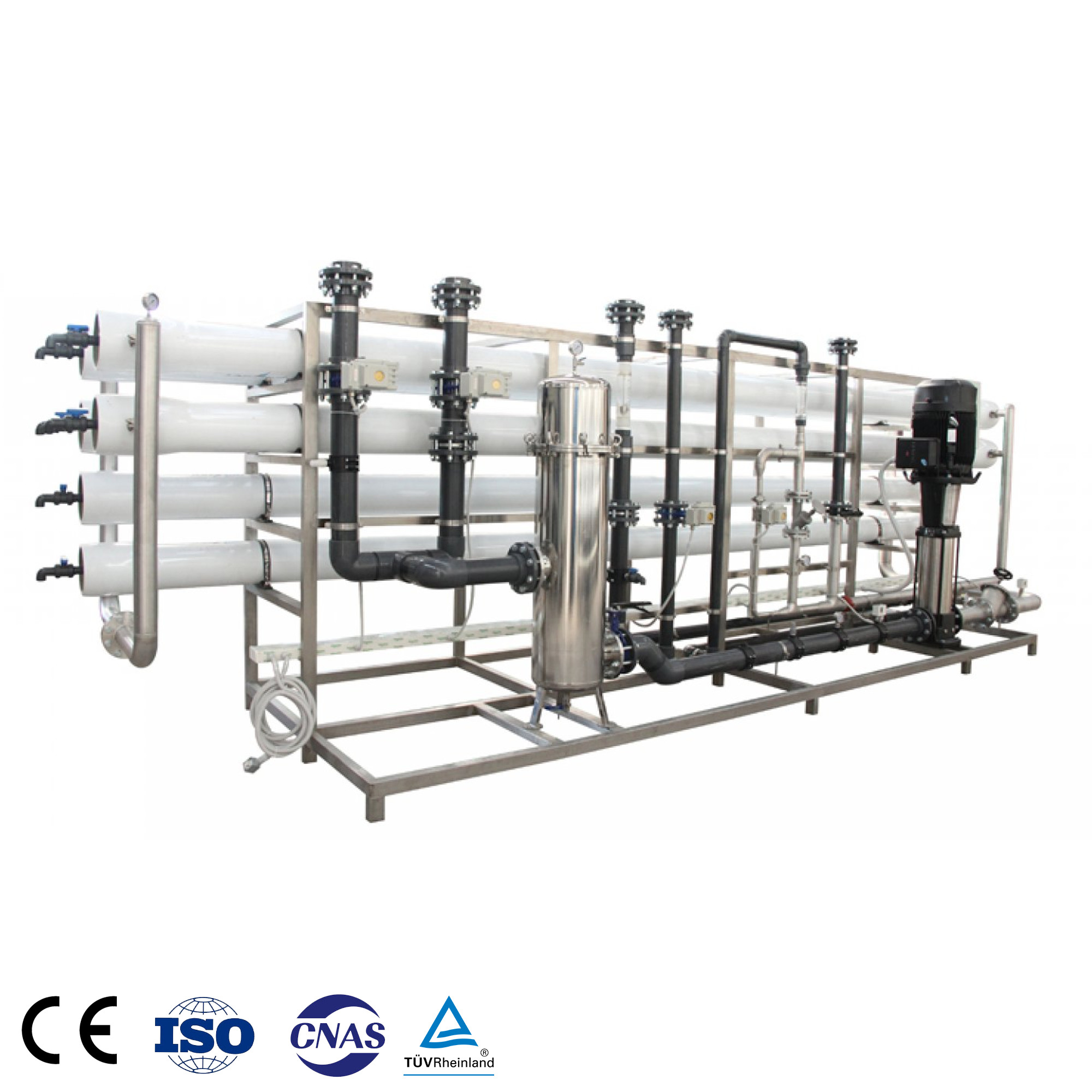

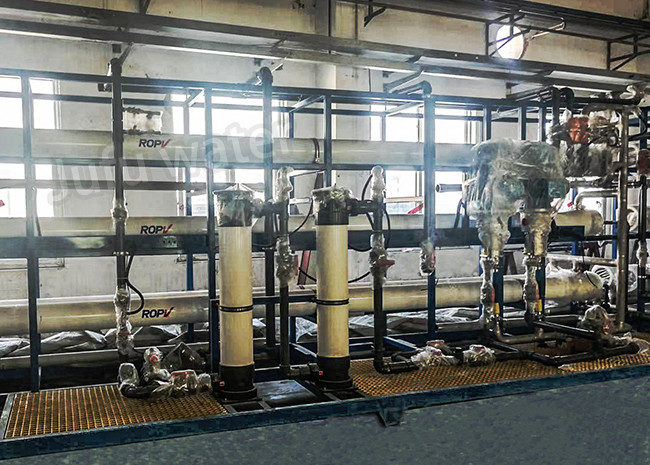

Photos and details of Reverse Osmosis Water Treatment System
FAQ:
1. RO water treatment system configuration?
First-stage multi-stage process: if the recovery rate is not achieved in the first stage (50-65% in the first stage and 65-75% in the second stage), the multi-stage tandem filtration can be used. The effective cross-sectional area of each segment decreases. 2:2 and 2:3 and 4:2:1
Multi-stage process: when the first stage process cannot meet the effluent quality requirements (the first stage is generally ≤20μs/cm), the product water of the first stage process is sent to another reverse osmosis unit.
The arrangement of membrane components can be divided into series and parallel.
2. What is the shell film material and specification of ro water treatment system?
Material of membrane case: stainless steel and fiberglass (FRP)
Specification of membrane shell: four inch membrane shell 4040 (one core to four core)
8 inch membrane case 8040 (one to seven cores)
Water inlet: end water inlet, side water inlet
3. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)
Model 4040 is designed by 0.25m3/h
Model 8040 is designed by 1-1.2m3/h
