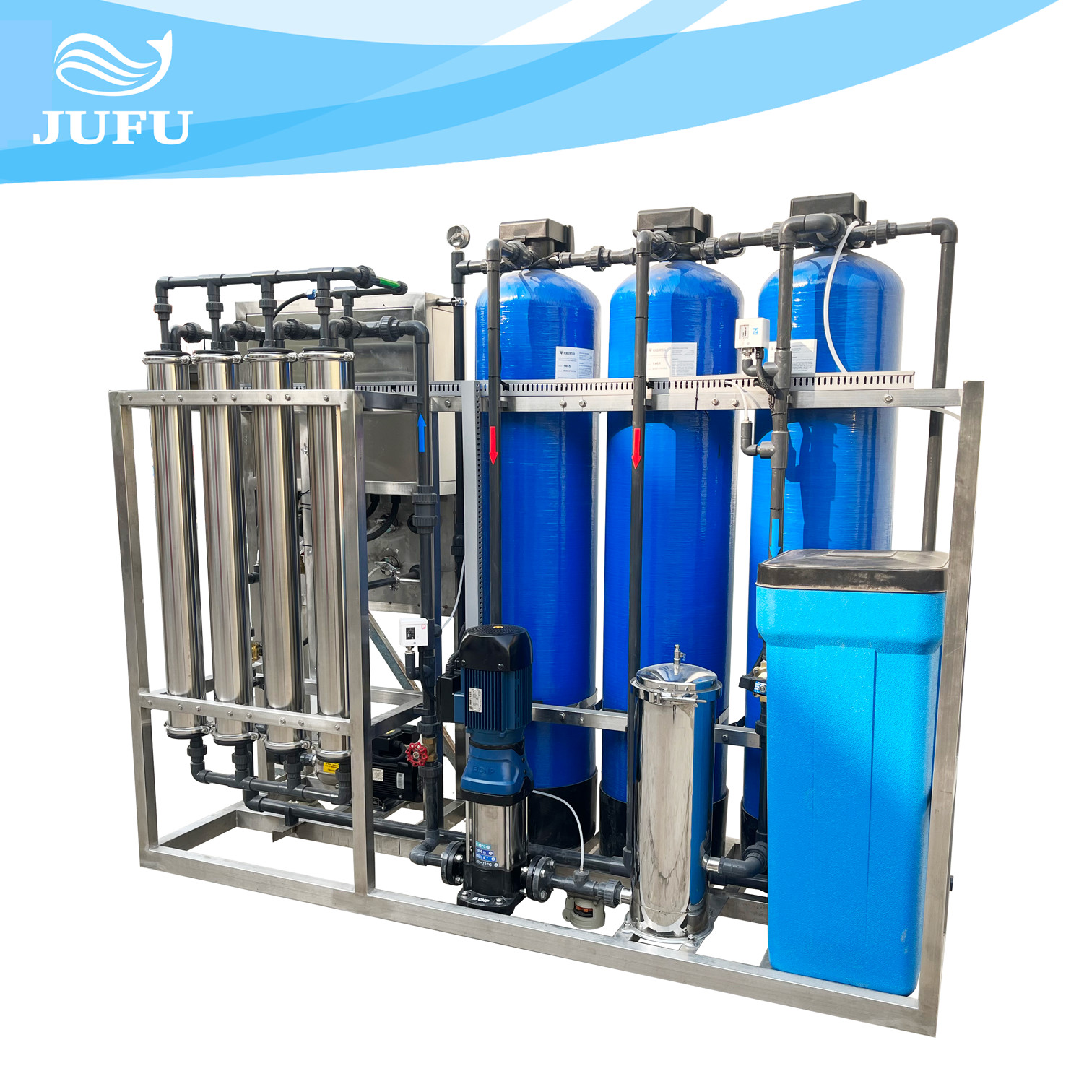

Industrial Reverse Osmosis Water Treatment Equipment Desalination 2.2KW

Desalination Equipment Industrial Water Treatment Equipment Reverse Osmosis Water Treatment Equipment​

Product Introduction of RO Water Treatment System
The principle of reverse osmosis is to apply a certain pressure to water, so that water molecules and ionic mineral elements pass through the reverse osmosis membrane. However, most of the inorganic salts (including heavy metals), organic matter, bacteria and viruses dissolved in the water cannot pass through the reverse osmosis membrane, thereby strictly separating the permeated pure water from the impermeable concentrated water; reverse osmosis is a selective membrane that can only pass through the water. The process of separating the water molecules in the water from the solute cannot be carried out by the selective permeability of the solute, and the pressure higher than the osmotic pressure is used as the driving force. Reverse osmosis internal structure PP cotton, compressed activated carbon filter element, activated carbon: 5 micron pore size filter element, remove residual sediment, rust and other tiny impurities in water; further remove residual chlorine, odor and solid impurities in water; it can better improve water quality smell.

The Basic Working Principle of RO Water Treatment System
After a special high-pressure pump, when the raw water is added to a pressure of 6-20 kg, the raw water permeates through the reverse osmosis membrane with a pore size of only 0.0001 microns under the action of pressure. Chemical ions, bacteria, fungi, and virions cannot pass through, and are discharged with wastewater. Only water molecules and solvents with a volume of less than 0.0001 microns are allowed to pass through.

Technical Specifications of RO Water Treatment System


























Advantages of RO water treatment system:
Reverse osmosis equipment belongs to physical desalting method, which has many advantages.
1) Non-phase-change physical method was used to desalinate and purify the saline water under norma temperature.
2) Desalting rate of single membrane element is 99.3% and can remove colloid, organics, bacteria, virus and all kinds of heavy metals in water at the same time.
3) With water pressure as the driving force, energy consumption is the lowest among many treatment methods.
4) No need for large amount of chemical treatment, no elimination of chemical waste liquid, no environmental pollution, and the recovery rate is over 70%.
5) High automation program, automatic stop in case of ailure, with automatic protection function.
6) The system is simple, easy to operate, and the water quality is stable.
7) Equipment covers small area, compact structure, reliable operation and high water quality.

Process flow of RO Water Treatment System
Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→ Water softener filter→security filter→ high pressure pump →reverse osmosis system
1. Water tank: storage of tap water, to solve the problem of insufficient tap water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate
2. Booster pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration
3. Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water
4. Carbon filter: mainly remove organic substances, residual chlorine and odor in tap water
5. Water softener filter: mainly remove the calcium and magnesium in tap water, reduce the hardness of water
6. Security filter: further filtration, protection of reverse osmosis membrane
7. High pressure pump: provide enough pressure for reverse osmosis system
8. Reverse osmosis unit: the core part of pure water equipment, the production of high-purity water.
9. Pure water tank: storage pure water, can change the size of the water tank,after the below process,The water result is pure enough for different application.



Photos of reverse osmosis water treatment system




FAQ:

1. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)

Model 4040 is designed by 0.25m3/h

Model 8040 is designed by 1-1.2m3/h

2. What is the material of mechanical filter?

Carbon steel, stainless steel, fiberglass

3.What are the multi-way control valves?

Manual control valve, automatic control valve

Multi - way control valve is divided into: filter valve and softening valve

Automatic control valve is divided into: time type and flow type.

Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean source, etc.
