| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-6000L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Host Size: | 3000x800x1600mm (can Be Customized) | Power: | 5.5KW |
|---|---|---|---|
| Power Supply: | 220V /380V/460V - 50Hz/60Hz,220V 50Hz Can Be Customized | Operating Pressure: | 0.8-1.2MPa |
| Designed Water Inlet: | 10000L/h | Outlet Flow: | 6000L/h |
| Desalination Rate: | ≥99.5% | Raw Water Pump: | CNP/NYP/GRUNDFOS (Optional) |
| Membrane Size: | 8040 | Number Of Membranes: | 6 |
| Membrane Elements: | DOW/Hydranautics/Troy/Vontron (optional) | Control Valve: | Manual/Automatic |
| Control Valve Brand: | FLECK/RUNXIN | Tank Material: | SS/FRP (Optional) |
| Pipe Material: | U-PVC, Stainless Steel (Optional) | ||
| High Light: | 5.5KW Reverse Osmosis Water Filter System,Water Purification Reverse Osmosis Machine 6000L/h,UPVC RO Water Purification Plant |
||

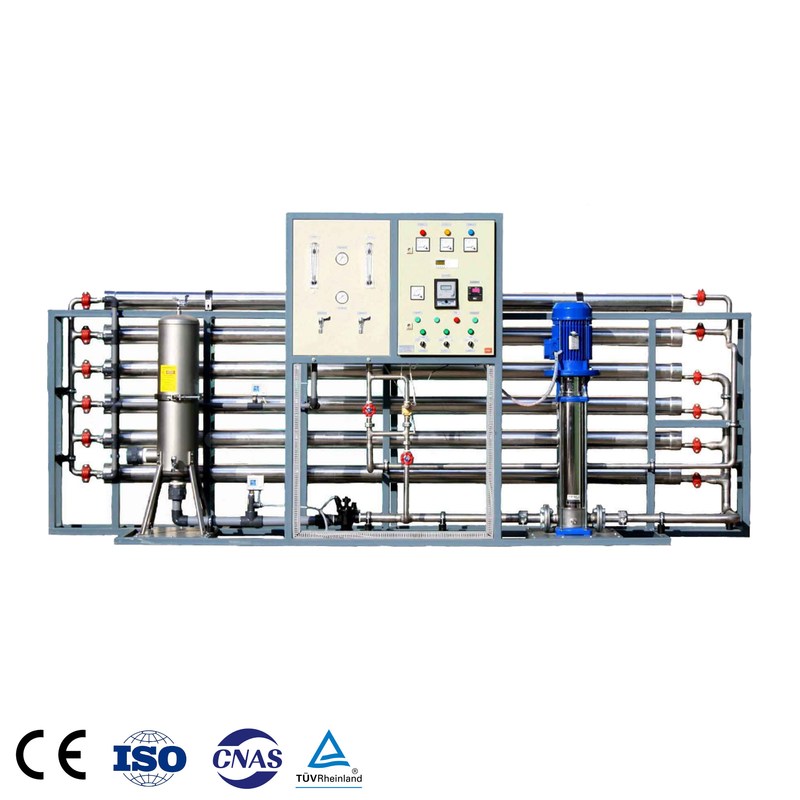

Reverse Osmosis Water Filter System Water Purification Machine Drinking Water Treatment Plant
Product Introduction of RO Water Treatment System
The methods of water treatment include physical treatment and chemical treatment.
The physical method includes the use of various filter materials with different pore sizes, and the impurities in the water are excluded by adsorption or blocking. The most important adsorption method is adsorption by activated carbon, and the blocking method is to pass water through the filter material to make the volume. Larger impurities cannot pass, resulting in cleaner water. The chemical method uses various chemicals to convert impurities in water into substances that are less harmful to the human body, or concentrates impurities. After the impurities in the water are collected, the volume becomes larger, and the impurities can be removed by filtration.
The Basic Working Principle of RO Water Treatment System
After a special high-pressure pump, when the raw water is added to a pressure of 6-20 kg, the raw water permeates through the reverse osmosis membrane with a pore size of only 0.0001 microns under the action of pressure. Chemical ions, bacteria, fungi, and virions cannot pass through, and are discharged with wastewater. Only water molecules and solvents with a volume of less than 0.0001 microns are allowed to pass through.
Technical Specifications of RO Water Treatment System
| 6000LPH Reverse Osmosis System | |
| Model | JFRO-6000L |
| Host Size | 3000x800x1600mm (can be customized) |
| Power | 5.5KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 60% |
| Designed Water Inlet | 10000L/h |
| Outlet Flow | 6000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 8040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 6 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | FRP |
| Number of Membrane housing | 3 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
Advantages of RO water treatment system:
(1) pressure is the main force in RO separation process, which does not go through the phase transition of energy intensive exchange and has low energy consumption; (2) RO does not need a lot of precipitants and adsorbents, and its operating cost is low; (3) RO separation engineering is simple in design and operation and short in construction period; (4) RO purification efficiency is high and environmentally friendly. Therefore, RO technology has been widely used in domestic and industrial water treatment, such as desalination of seawater and brackish water, production of medical and industrial water, preparation of pure and ultra-pure water, industrial wastewater treatment, food processing concentration, gas separation, etc.
Process flow of RO Water Treatment System
Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→ Water softener filter→security filter→ high pressure pump →reverse osmosis system
1. Water tank: storage of tap water, to solve the problem of insufficient tap water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate
2. Booster pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration
3. Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water
4. Carbon filter: mainly remove organic substances, residual chlorine and odor in tap water
5. Water softener filter: mainly remove the calcium and magnesium in tap water, reduce the hardness of water
6. Security filter: further filtration, protection of reverse osmosis membrane
7. High pressure pump: provide enough pressure for reverse osmosis system
8. Reverse osmosis unit: the core part of pure water equipment, the production of high-purity water.
9. Pure water tank: storage pure water, can change the size of the water tank,after the below process,The water result is pure enough for different application.
Photos of reverse osmosis water treatment system
FAQ:
1. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)
Model 4040 is designed by 0.25m3/h
Model 8040 is designed by 1-1.2m3/h
2. What is the material of mechanical filter?
Carbon steel, stainless steel, fiberglass
3.What are the multi-way control valves?
Manual control valve, automatic control valve
Multi - way control valve is divided into: filter valve and softening valve
Automatic control valve is divided into: time type and flow type.
Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean source, etc.
