| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-50T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Host Size: | 6000x1200x1800mm (can Be Customized) | Power: | 37KW |
|---|---|---|---|
| Power Supply: | 220V /380V/460V - 50Hz/60Hz,220V 50Hz Can Be Customized | Operating Pressure: | 1.2~1.5MPa |
| Designed Water Inlet: | 42t/h | Outlet Flow: | 30t/h |
| Desalination Rate: | ≥99.5% | Raw Water Pump: | CNP/NYP/GRUNDFOS (Optional) |
| Membrane Size: | 8040 | Number Of Membranes: | 30 |
| Membrane Elements: | DOW/Hydranautics/Troy/Vontron (optional) | Control Valve: | Manual/Automatic |
| Control Valve Brand: | FLECK/RUNXIN | Tank Material: | SS/FRP (Optional) |
| Pipe Material: | U-PVC, Stainless Steel (Optional) | ||
| High Light: | Drinking Water Reverse Osmosis System 30t/H,1.5MPa RO Drinking Water System,Stainless Steel Drinking Water Ro Plant |
||
Reverse Osmosis Machine Water Purification System Ro Drinking Water System
Product Introduction of RO Water Treatment System
The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures. The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to separate, extract, purify and condense.
More than 97% soluble salts and 99%glues, microbe, particulate and organic substances and etc can be removed with the reverse osmosis. It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance.
The Basic Working Principle of RO Water Treatment System
After a special high-pressure pump, when the raw water is added to a pressure of 6-20 kg, the raw water permeates through the reverse osmosis membrane with a pore size of only 0.0001 microns under the action of pressure. Chemical ions, bacteria, fungi, and virions cannot pass through, and are discharged with wastewater. Only water molecules and solvents with a volume of less than 0.0001 microns are allowed to pass through.
Technical Specifications of RO Water Treatment System
| |||||||||||||||||||||||||||||||||||||||||||
Advantages of RO water treatment system:
(1) pressure is the main force in RO separation process, which does not go through the phase transition of energy intensive exchange and has low energy consumption; (2) RO does not need a lot of precipitants and adsorbents, and its operating cost is low; (3) RO separation engineering is simple in design and operation and short in construction period; (4) RO purification efficiency is high and environmentally friendly. Therefore, RO technology has been widely used in domestic and industrial water treatment, such as desalination of seawater and brackish water, production of medical and industrial water, preparation of pure and ultra-pure water, industrial wastewater treatment, food processing concentration, gas separation, etc.
Process flow of RO Water Treatment System
Feed water pump- Sand filter--Active carbon filter -Softener -Cartridge filter- High-pressure pump- RO system
1. Feed water pump: provide the pressure to sand filter /active carbon filter/ softener
2. Sand filter: Get rid of turbidity, suspended solids, organic impurities and colloid etc.
3. Active Carbon filter: Remove the color, free chloride, organic matter and harmful matter etc.
4, Softener; Get rid of calcium, magnesium and bicarbonate ions in original / source water, reduce water hardness.
5. Cartridge filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump: Provide the high pressure to RO membrane.
7. RO system: main part of pure water treatment plant. The desaltation rate up to 99%, capable of removing over 99% of ions, bacterias, particles and organics.

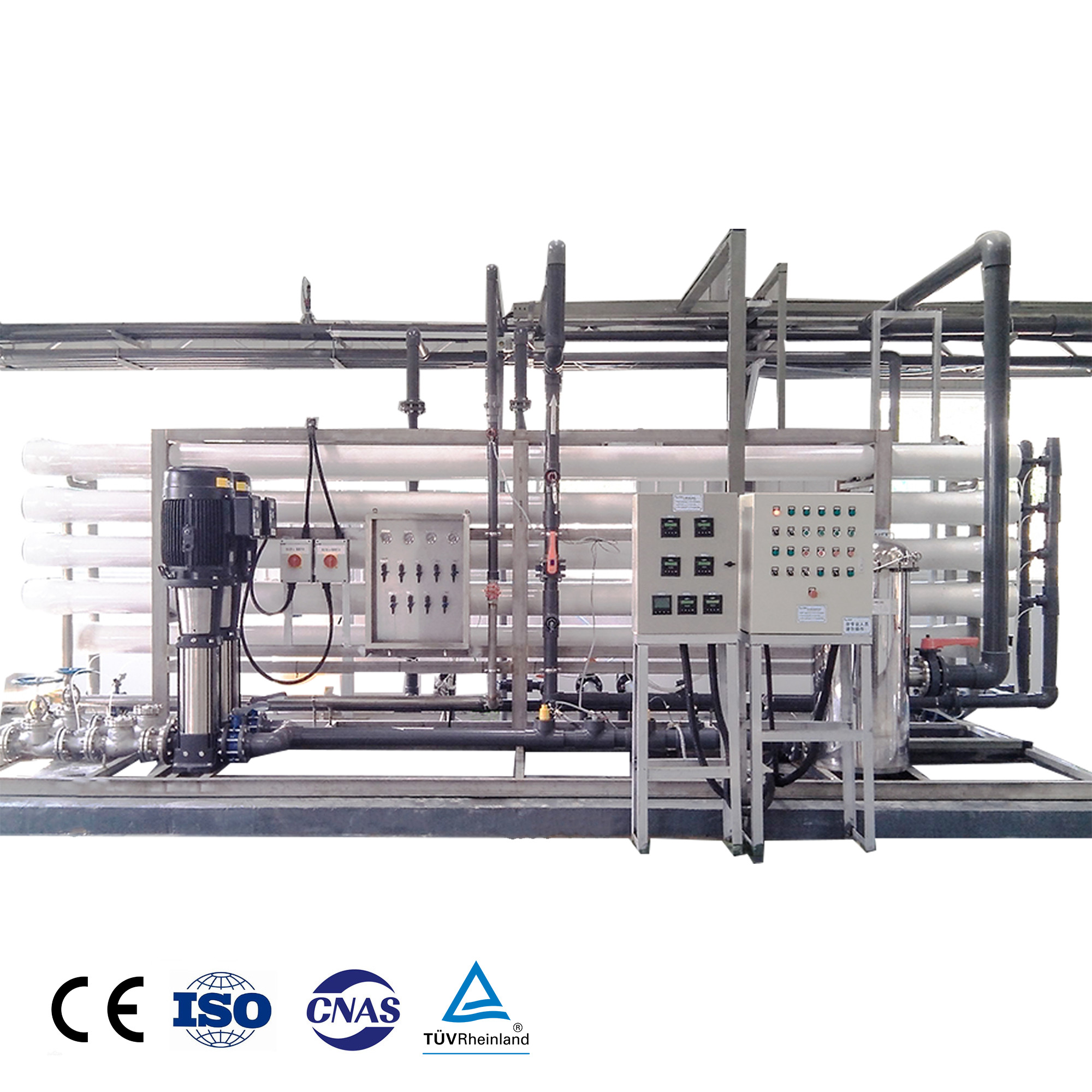

Photos of reverse osmosis water treatment system
FAQ:
1. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)
Model 4040 is designed by 0.25m3/h
Model 8040 is designed by 1-1.2m3/h
2. What is the material of mechanical filter?
Carbon steel, stainless steel, fiberglass
3.What are the multi-way control valves?
Manual control valve, automatic control valve
Multi - way control valve is divided into: filter valve and softening valve
Automatic control valve is divided into: time type and flow type.
Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean source, etc.
