250LPH Ro Water Treatment Equipment Reverse Osmosis Filter System

250LPH Ro Water Treatment Equipment Reverse Osmosis Filter System

Reverse osmosis usually uses asymmetric and composite membranes. The equipment used in reverse osmosis is mainly hollow fiber or coil membrane separation equipment.

Reverse osmosis water treatment process is basically a physical desalting method, which has many advantages that traditional water treatment methods do not have:

a. Reverse osmosis is a physical method without phase transition to desalting and purifying saline water supply at room temperature. The desalting rate of the ultra-thin composite membrane element can reach more than 99.5%, and can remove colloid, organic matter, bacteria, virus and so on in the water at the same time.
b. Water treatment only relies on water pressure as a driving force, and its energy consumption is the lowest among many treatment methods.
c, without a large number of chemical agents and acid, alkali regeneration treatment, no chemical waste liquid discharge, no environmental pollution.
d, reverse osmosis device can be continuous operation of water, simple system, easy to operate, product water quality is stable.
e. The reverse osmosis device has a high degree of automation, and the workload of operation maintenance and equipment maintenance is very small.
f. The equipment occupies a small area and requires a small space.
g. Suitable for a wide range of raw water quality, not only for brackish water, sea water and sewage treatment, but also for fresh water treatment with low salt content

RO Water Treatment System Specification


























Flow Chart of RO Water Treatment System
Raw water pump → mechanical filter → activated carbon filter → Sodium ion exchanger → precision filter → high pressure pump → reverse osmosis → ozone sterilizer (UV)



Unique Characteristics of RO Water Treatment System
1. The single-membrane desalination rate can reach 99%, the desalination rate of the primary reverse osmosis system can generally be stabilized above 90%, and the desalination rate of the secondary reverse osmosis system can generally be stabilized above 98%.
2. Because the reverse osmosis equipment can effectively remove microorganisms, organic substances and inorganic substances such as iron and silicon, the quality of the effluent is higher than other methods.
3. The equipment has small footprint, compact structure, reliable operation and convenient operation.
4. The system is simple, the degree of automation is high, the fault is automatically shut down, and it has the function of automatic protection.
5. The recovery rate can reach more than 70%.
6. Save the chemical consumption cost, labor cost and waste water treatment cost generated by regeneration, and reduce environmental pollution.

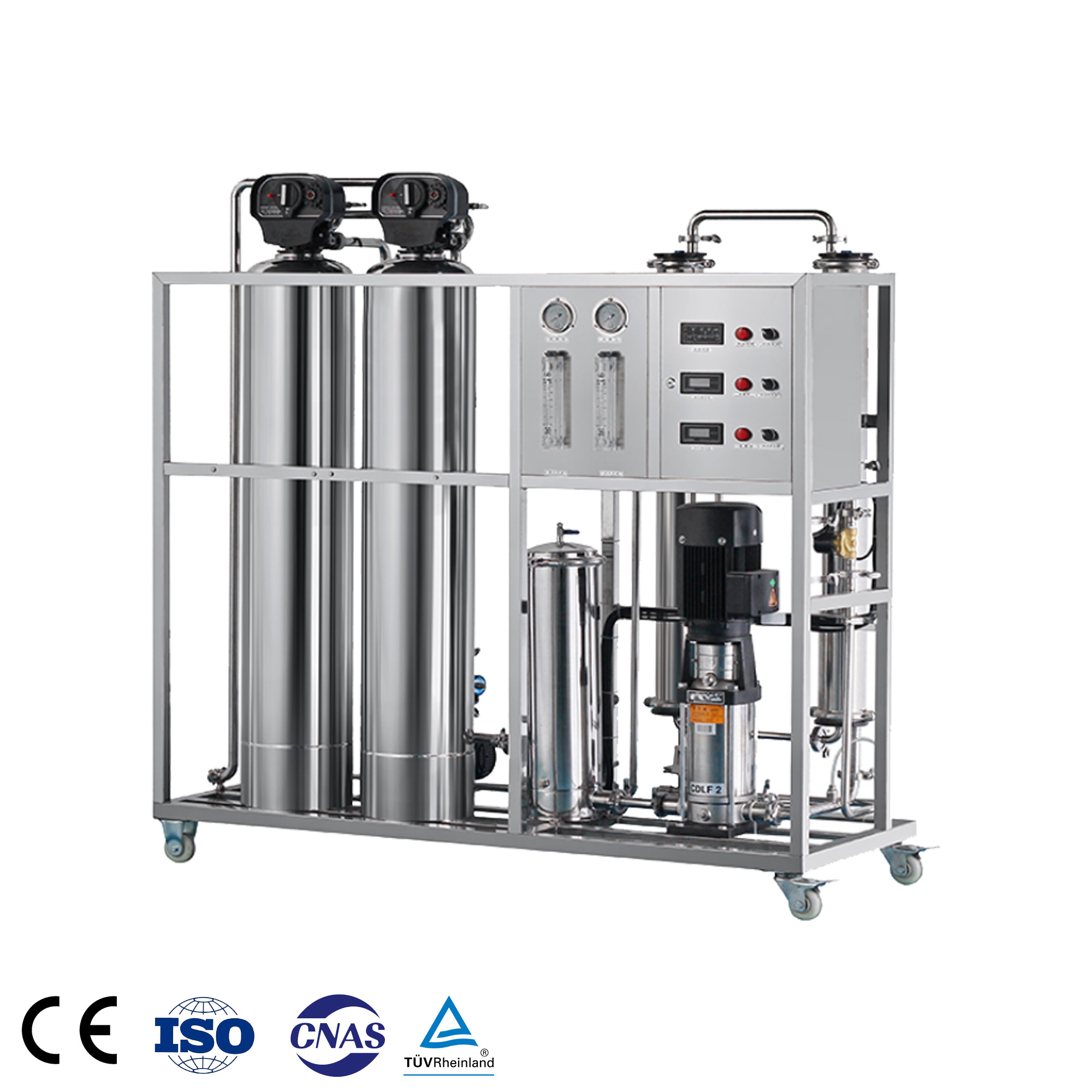

Photos of RO Water Treatment System



Here's a guide to getting the best offer
1. What is the source water to be treated? Industrial wastewater, tap water, well water, groundwater or seawater? Is there a water quality analysis report for conductivity?
2. How much capacity water treatment system do you need? 1000 liters per hour, 5000 liters per hour or more?
3. What is the purpose of outputting purified water? Drinking water, food, beverage manufacturing, industrial use or medical production use?


FAQ:

1. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)

Model 4040 is designed by 0.25m3/h

Model 8040 is designed by 1-1.2m3/h

2. What is the material of mechanical filter?

Carbon steel, stainless steel, fiberglass

3, what are the multi-way control valves?

Manual control valve, automatic control valve

Multi - way control valve is divided into: filter valve and softening valve

Automatic control valve is divided into: time type and flow type.

Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean source, etc.
