| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-6000L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Type: | Reverse Osmosis | Capacity: | 6000L/H |
|---|---|---|---|
| Warranty: | 12 Months | After-sales Service Provided: | Online Support |
| Product Name: | RO Water Treatment System | Function: | Wate Purification |
| Voltage: | 110V/220V/380V Can Be Customized | Membrane Size: | 4040 |
| High Light: | 6TPH Ro Water Treatment Plant,6000L/H RO Water Purification Machine,Stainless Steel Reverse Osmosis System |
||

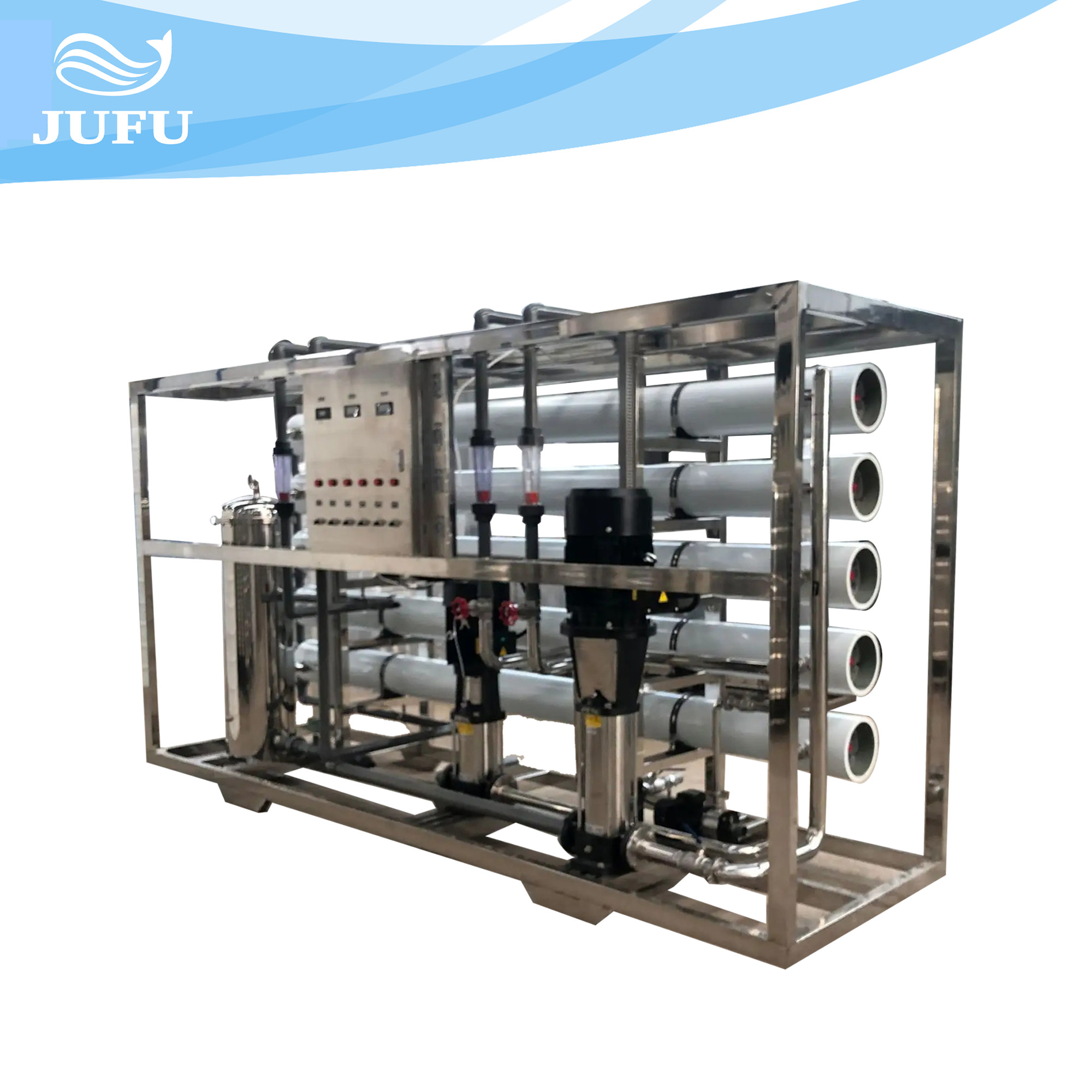

6TPH Water Purification Ro Water Treatment Plant Reverse Osmosis System
Reverse osmosis referred to as RO, is a membrane separation technology, its principle is that raw water under the action of high pressure through reverse osmosis membrane, the solvent in the water from high concentration to low concentration diffusion to achieve the purpose of separation, purification, concentration, because it is the opposite of the natural osmosis direction, so it is called reverse osmosis. Reverse osmosis can remove bacteria, viruses, colloid, organic matter and more than 98% of dissolved salts from water. The method has the advantages of low operation cost, simple operation, high degree of automation and stable effluent quality. Compared with other traditional water treatment methods, it has obvious advantages and is widely used in all walks of life related to water treatment.
Working Principle of Reverse Osmosis Water Treatment System:
When a pressure greater than osmotic pressure is applied on the saltwater side of the membrane, the flow of water is reversed and the water in the saltwater flows into the fresh side, a phenomenon called reverse osmosis.
Technical Specifications of Reverse Osmosis Water Treatment System:
| Model | JFRO-6000L |
| Host Size | 2700x600x1600mm (can be customized) |
| Power | 3KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 67% |
| Designed Water Inlet | 3000L/h |
| Outlet Flow | 2000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 4040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 8 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | SS/FRP |
| Number of Membrane housing | 4 |
| Pipe Material |
U-PVC/ Stainless steel (Optional)
|
Process flow of reverse osmosis water treatment system:
Raw water → original water tank → original water pump → multi-media filter (quartz sand filter)→ activated carbon filter → soft water processor → precision filter → high pressure pump → first stage reverse osmosis (RO) device → pure water tank → high pressure pump → second stage reverse osmosis → ultraviolet sterilization device → water point
Mechanism model of reverse osmosis system:
1. Preferential adsorption capillary pore model: No pore was found under weak point dry state electron microscope. The wet membrane specimens are not electron microscopic samples.
2. Dissolution diffusion model: no holes are considered.
3. Dry closed wet open model: the most appropriate modern reverse osmosis mechanism model that can explain the unity of models 1 and 2. The "dry-closed wet-open" reverse osmosis model unifies the two most classical reverse osmosis mechanism models, the fine pore model and the dissolved diffusion model.
FAQ:
1, What are the inlet water quality requirements for ro water treatment system membrane components?
|
Items |
NTU | SDI | Residual chlorine(mg/L) | Fe2＋(mg/L) | TOC(mg/L) |
| Limits | ≤1 | ≤5 | ≤4 | ≤3 |
2. What is the material of ro water treatment system membrane?
Acetate membrane (CA) : mainly because of its resistance to chlorine, so it is still durable. But its suitable pH range is small, easy hydrolysis
Aromatic polyamide membrane (PA) : water almost can not have chlorine, only through a variety of pretreatment chlorine.
3. RO water treatment system configuration:
First-stage multi-stage process: if the recovery rate is not achieved in the first stage (50-65% in the first stage and 65-75% in the second stage), the multi-stage tandem filtration can be used. The effective cross-sectional area of each segment decreases. 2:2 and 2:3 and 4:2:1
Multi-stage process: when the first stage process cannot meet the effluent quality requirements (the first stage is generally ≤20μs/cm), the product water of the first stage process is sent to another reverse osmosis unit.
The arrangement of membrane components can be divided into series and parallel.
