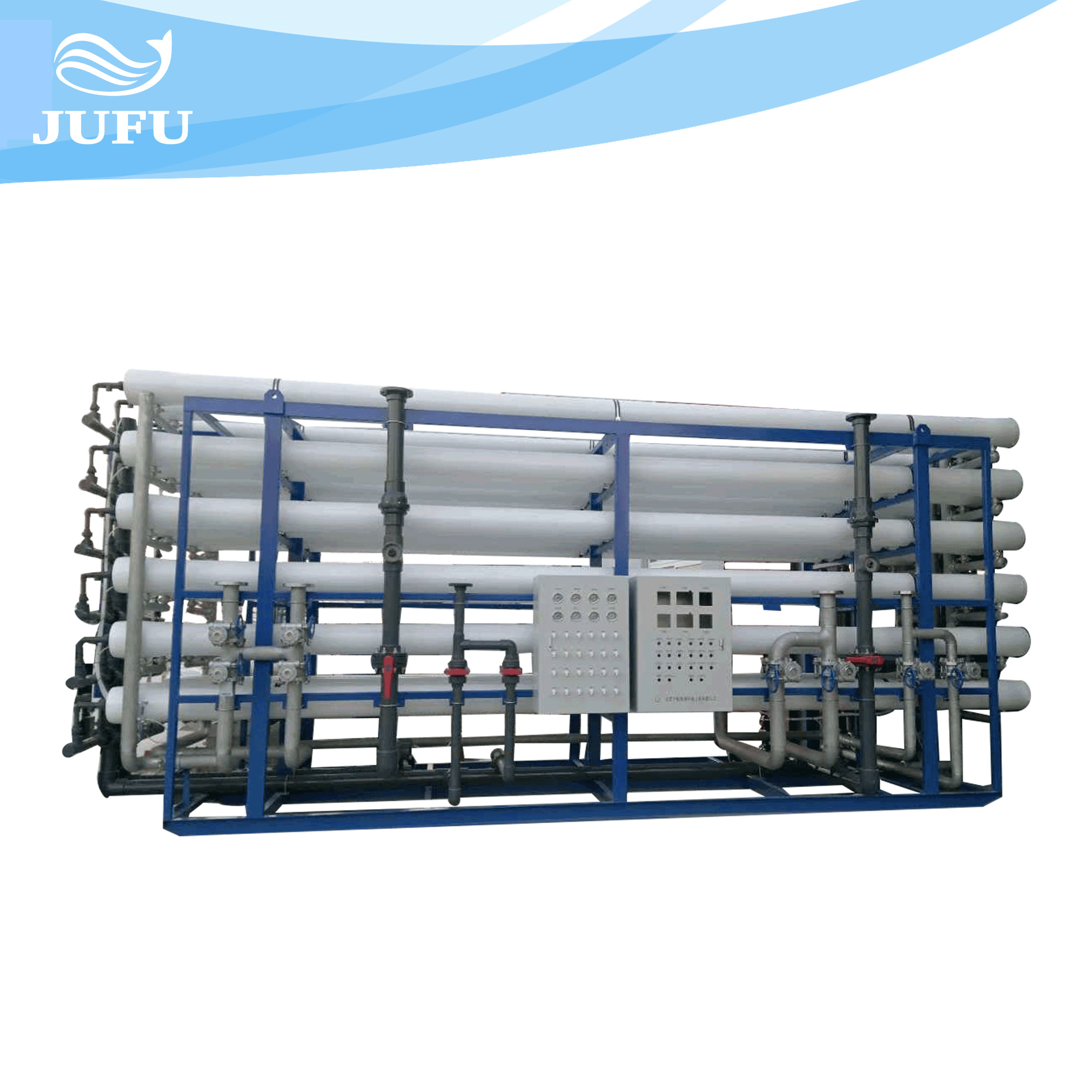

80TPH Reverse Osmosis System Waste Water Purifier Treatment Plant

80TPH Water Purifier Reverse Osmosis System Waste Water Treatment Plant

There are two ways to clean reverse osmosis equipment, online cleaning and offline cleaning.

First, online cleaning:
Online cleaning refers to the overall cleaning of the reverse osmosis device, membrane components do not have to take out the pressure vessel, usually designed and used in a larger system. This cleaning method is simple and convenient to operate, short time, but easy to cause cleaning is not complete, the effect is not ideal. This method can be used when the contamination of the reverse osmosis unit is light.


Two, off-line cleaning:
Off-line cleaning means that the membrane elements are removed from the reverse osmosis pressure vessel and loaded into the special cleaning equipment for cleaning, usually no more than 6 pieces at a time. This cleaning method is simple and convenient to operate, clean thoroughly, the best effect. But more membrane elements, cleaning time is longer. This method can be used when the reverse osmosis pollution is serious or the online cleaning effect is poor.

Technical Specifications of RO Water Treatment System

Reverse osmosis (RO) is a high efficiency and energy saving technology.

It relies on pressure to separate water and ions for purification and concentration. The process has no phase change, generally does not need heating, low energy consumption, has the advantages of low operating cost, no pollution, convenient operation and reliable operation, high water quality, and has become the most energy-saving technology of seawater and brackish water desalination. Has been widely used in medicine, electronics, chemical, food, seawater desalination and many other industries. Reverse osmosis technology has become the preferred water treatment technology in modern industry. Reverse osmosis (RO) technology has become an important part of membrane separation technology.
(1) Fresh water can be extracted from seawater or brackish water;
(2) Easy to remove organic matter, bacteria and colloid and other impurities dissolved in water, to obtain high purity water;
(3) Because the reverse osmosis process is a physical process, there is no phase change, thus saving energy;
(4) Simple operation, easy to realize automation, labor saving;
(5) Compact structure, small footprint, thus reducing costs;
(6) As a concentration method, it can recover the valuable components dissolved in the solution.

Process flow of RO Water Treatment System

Raw water → Raw water tank → Raw water pump → Multi-media filter (quartz sand filter) → Activated carbon filter → Soft water processor → Precision filter → High pressure pump → Primary reverse osmosis (RO) device → Purified water tank → High pressure pump → Two Stage reverse osmosis → ultraviolet sterilization device → water point.



Photos of reverse osmosis water treatment system


FAQ:

1. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)

Model 4040 is designed by 0.25m3/h

Model 8040 is designed by 1-1.2m3/h

2. What is the material of mechanical filter?

Carbon steel, stainless steel, fiberglass

3.What are the multi-way control valves?

Manual control valve, automatic control valve

Multi - way control valve is divided into: filter valve and softening valve

Automatic control valve is divided into: time type and flow type.

Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean source, etc.
