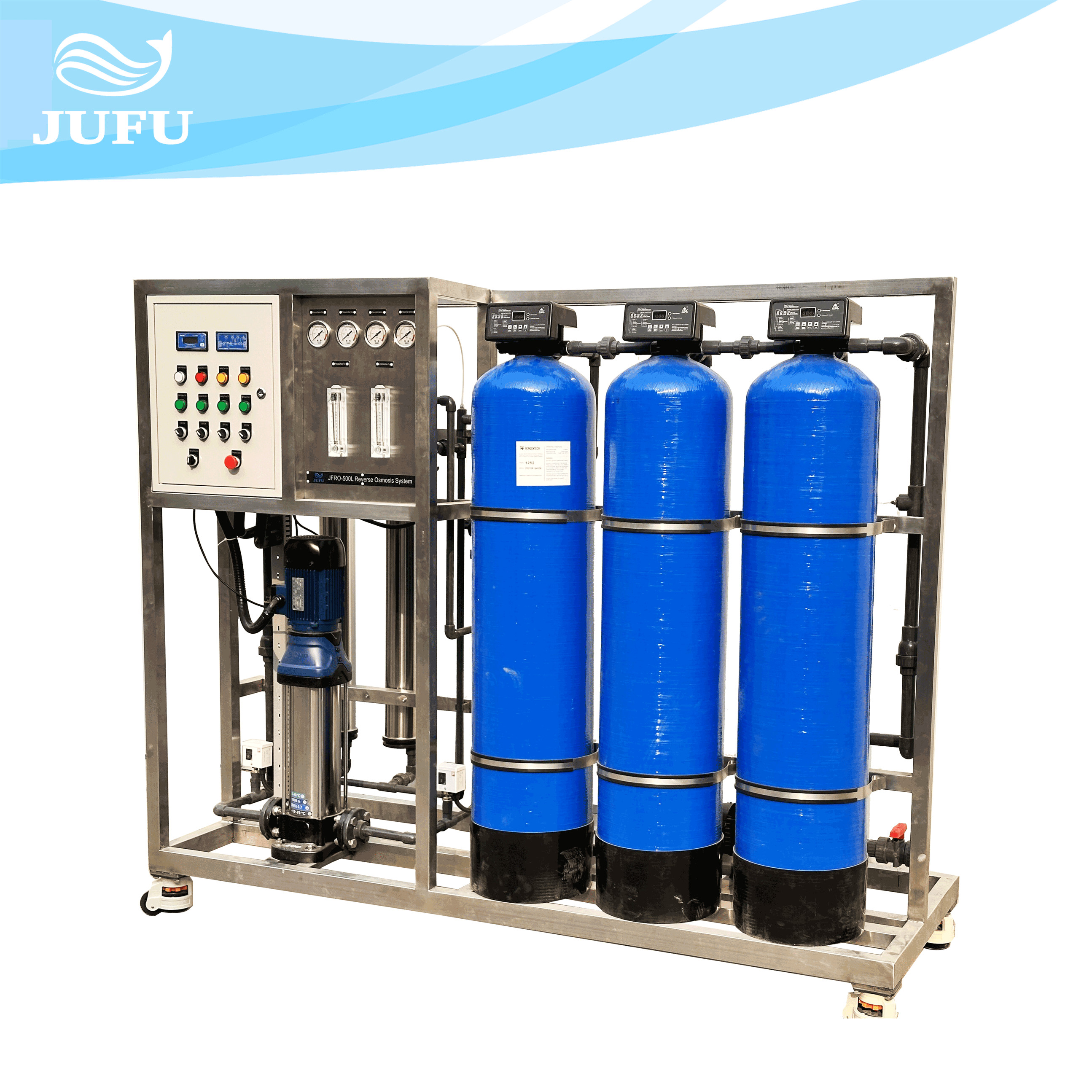

One Stage Reverse Osmosis Filter System 500LPH RO Water Purification Plant

One Stage Reverse Osmosis Filter 500LPH RO Water Purification Plant

Reverse osmosis technology is usually used for seawater, brackish fresh water; Softening treatment of water; Wastewater treatment and food, pharmaceutical industry, chemical industry purification, concentration, separation and other aspects. In addition, reverse osmosis technology applied to pre-salt treatment has also achieved good results, which can reduce the load of ion exchange resin by more than 90%, and the amount of resin regenerant can also be reduced by 90%. Therefore, it not only saves money, but also helps the environment. Reverse osmosis technology can also be used in addition to the particles in water, organic substances, colloids, to reduce the pollution of ion exchange resin, prolong the service life has a good role.


Technical Specifications of RO Water Treatment System

Reverse osmosis usually uses asymmetric membranes and composite membranes. The equipment used for reverse osmosis is mainly hollow fiber type or roll type membrane separation equipment.

Reverse osmosis membrane can intercept all kinds of inorganic ions, colloidal substances and macromolecular solutes in water, so as to obtain clean water. It can also be used for preconcentration of macromolecular organic matter solution. Reverse osmosis has been developed rapidly in the past 20 years because of its simple process and low energy consumption. Has been widely used in seawater and brackish water desalination, boiler water softening and wastewater treatment, and combined with ion exchange to produce high purity water, its application range is expanding, has begun to be used in dairy, fruit juice concentration and biochemical and biological agents separation and concentration.

Process flow of RO Water Treatment System

Raw water → Raw water tank → Raw water pump → Multi-media filter (quartz sand filter) → Activated carbon filter → Soft water processor → Precision filter → High pressure pump → Primary reverse osmosis (RO) device → Purified water tank → High pressure pump → Two Stage reverse osmosis → ultraviolet sterilization device → water point.


Photos of reverse osmosis water treatment system



FAQ:

1. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)

Model 4040 is designed by 0.25m3/h

Model 8040 is designed by 1-1.2m3/h

2. What is the material of mechanical filter?

Carbon steel, stainless steel, fiberglass

3.What are the multi-way control valves?

Manual control valve, automatic control valve

Multi - way control valve is divided into: filter valve and softening valve

Automatic control valve is divided into: time type and flow type.

Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean source, etc.
