220V 50Hz Water Treatment Reverse Osmosis Plant For Desalination

RO System Reverse Osmosis System Reverse Osmosis Plant Water Treatment Equipment Factory

Product Introduction of RO Water Treatment System

Reverse osmosis technology is usually used in fresh water of seawater and brackish water; water softening treatment; waste water treatment and purification, concentration and separation of food, pharmaceutical industry and chemical industry. In addition, the application of reverse osmosis technology to pre-demineralization treatment has also achieved good results, which can reduce the load on ion exchange resins by more than 90%, and the amount of resin regenerants can also be reduced by 90%. Therefore, it not only saves costs, but also benefits environmental protection. Reverse osmosis technology can also be used to remove particles, organic substances, and colloids in water, which has a good effect on reducing the pollution of ion exchange resins and prolonging their service life.

Reverse osmosis is currently the most widely used desalination technology in the preparation of high-purity water. Its separation object is the range of ions in the solution and the organic matter with a molecular weight of several hundred

The Basic Working Principle of RO Water Treatment System
After a special high-pressure pump, when the raw water is added to a pressure of 6-20 kg, the raw water permeates through the reverse osmosis membrane with a pore size of only 0.0001 microns under the action of pressure. Chemical ions, bacteria, fungi, and virions cannot pass through, and are discharged with wastewater. Only water molecules and solvents with a volume of less than 0.0001 microns are allowed to pass through.

Technical Specifications of RO Water Treatment System

Application fields of RO water treatment system
Water treatment system treat raw water in several procedures in order to meet the bottled drinking water standard.
This system uses water pressure pump to increase the water supply pressure; sand filter is used to remove Plankton, Moss, Suspension, Colloid and so on. Active carbon filter is used to remove strange smell, chlorine, chloride, organic matter and heavy mental, lower color and optimize water quality. Sodium softer is used to remove the calcium and magnesium ions in water. Micro filter is used to remove the tiny impurity. Hollow fiber Ultra filter can remove impurity, colloid, phenolic compounds, chloride, germ and all the harmful substance, meanwhile keep all beneficial minerals in water. Reverse osmosis can move all the things in the water and to make raw water to be pure water.


Process flow of RO Water Treatment System
Raw water → Raw water tank → Raw water pump → Multi-media filter (quartz sand filter) → Activated carbon filter → Soft water processor → Precision filter → High pressure pump → Primary reverse osmosis (RO) device → Purified water tank → High pressure pump → Two Stage reverse osmosis → ultraviolet sterilization device → water point.

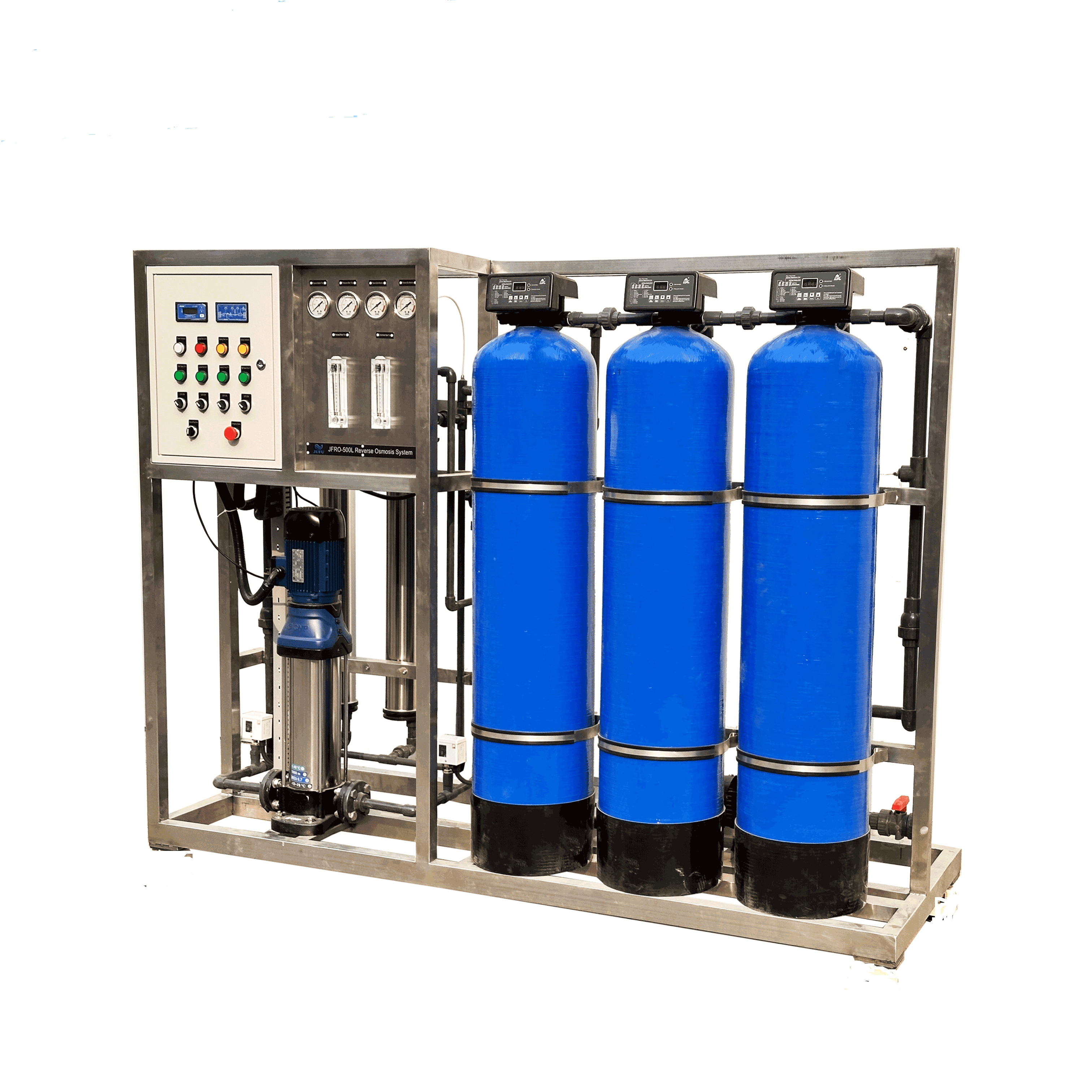

Photos of reverse osmosis water treatment system




FAQ:

1. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)

Model 4040 is designed by 0.25m3/h

Model 8040 is designed by 1-1.2m3/h

2. What is the material of mechanical filter?

Carbon steel, stainless steel, fiberglass

3.What are the multi-way control valves?

Manual control valve, automatic control valve

Multi - way control valve is divided into: filter valve and softening valve

Automatic control valve is divided into: time type and flow type.

Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean source, etc.
