| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-2000L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Host Size: | 2700x600x1600mm (can Be Customized) | Power: | 3KW |
|---|---|---|---|
| Power Supply: | 220V /380V/460V - 50Hz/60Hz,220V 50Hz Can Be Customized | Operating Pressure: | 0.8-1.2MPa |
| Designed Water Inlet: | 3000L/h | Outlet Flow: | 2000L/h |
| Desalination Rate: | ≥99.5% | Raw Water Pump: | CNP/NYP/GRUNDFOS (Optional) |
| Membrane Size: | 4040 | Number Of Membranes: | 8 |
| Membrane Elements: | DOW/Hydranautics/Troy/Vontron (optional) | Control Valve: | Manual/Automatic |
| Control Valve Brand: | FLECK/RUNXIN | Tank Material: | SS/FRP (Optional) |
| Pipe Material: | U-PVC, Stainless Steel (Optional) | ||
| High Light: | Pretreatment RO Water Desalination System,3KW Water Softening System,3000L/h RO Water Treatment System |
||

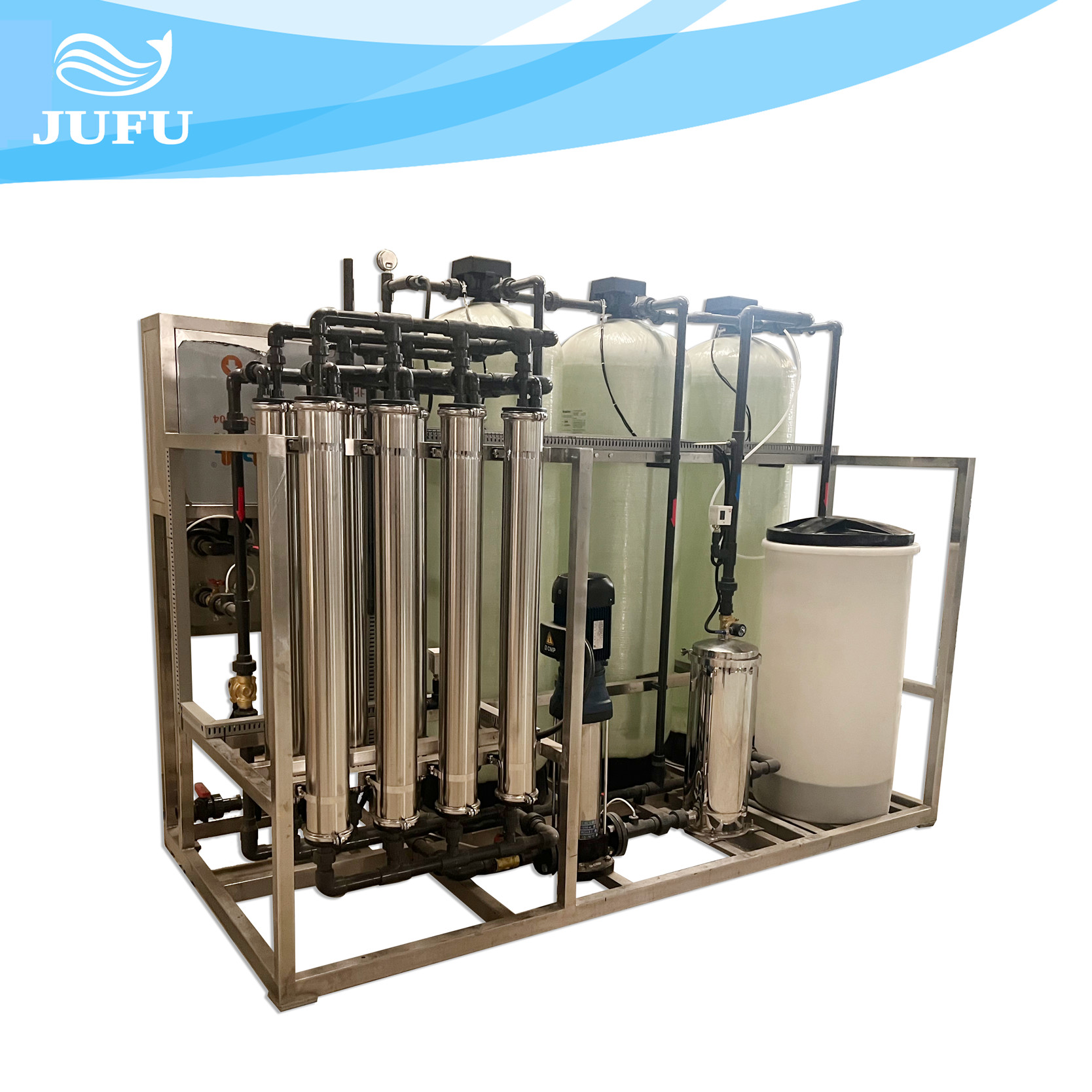

Desalination System With Pretreatment Water Softening System
Product Introduction
The Basic Working Principle of RO Water Treatment System
After a special high-pressure pump, when the raw water is added to a pressure of 6-20 kg, the raw water permeates through the reverse osmosis membrane with a pore size of only 0.0001 microns under the action of pressure. Chemical ions, bacteria, fungi, and virions cannot pass through, and are discharged with wastewater. Only water molecules and solvents with a volume of less than 0.0001 microns are allowed to pass through.
Technical Specifications of RO Water Treatment System
| 2000LPH Reverse Osmosis System | |
| Model | JFRO-2000L |
| Host Size | 2700x600x1600mm (can be customized) |
| Power | 3KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 67% |
| Designed Water Inlet | 3000L/h |
| Outlet Flow | 2000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 4040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 8 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | SS/FRP |
| Number of Membrane housing | 4 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
Advantages of RO water treatment system:
(1) pressure is the main force in RO separation process, which does not go through the phase transition of energy intensive exchange and has low energy consumption; (2) RO does not need a lot of precipitants and adsorbents, and its operating cost is low; (3) RO separation engineering is simple in design and operation and short in construction period; (4) RO purification efficiency is high and environmentally friendly. Therefore, RO technology has been widely used in domestic and industrial water treatment, such as desalination of seawater and brackish water, production of medical and industrial water, preparation of pure and ultra-pure water, industrial wastewater treatment, food processing concentration, gas separation, etc.
Process flow of RO Water Treatment System
Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→ Water softener filter→security filter→ high pressure pump →reverse osmosis system
1. Water tank: storage of tap water, to solve the problem of insufficient tap water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate
2. Booster pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration
3. Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water
4. Carbon filter: mainly remove organic substances, residual chlorine and odor in tap water
5. Water softener filter: mainly remove the calcium and magnesium in tap water, reduce the hardness of water
6. Security filter: further filtration, protection of reverse osmosis membrane
7. High pressure pump: provide enough pressure for reverse osmosis system
8. Reverse osmosis unit: the core part of pure water equipment, the production of high-purity water.
9. Pure water tank: storage pure water, can change the size of the water tank,after the below process,The water result is pure enough for different application.
Photos of reverse osmosis water treatment system
Application of reverse osmosis water treatment equipment
Accessories Details Display
Consumable Replacement
Similar products you may be interested in
About Jufu Water Technology
Jufu Water Tech is a Hi-tech enterprise which specialized in integrating Research & Development, Manufacturing, Sales, Engineering installation and Consulting on water treatment and water purification equipment and technologies.
Jufu has strong power on know-how solution providing. The water business including water and wastewater treatment equipment supply, industrial process water, recycling and reuse solutions.
The main category of the products not limited to:
Ultrafiltration equipment, Nano-filtration equipment, Reverse osmosis equipment, EDI electric desalination equipment, Direct piped drinking water equipment, Medical purified water equipment, Water softening equipment, MBR integrated wastewater treatment equipment, Waste permeates treatment equipment.
Jufu Water Tech has supplied our water purification and water treatment equipment products and service to more than 30 provincial and cities in China domestic market based on our reliable quality, reasonable price and perfect after-sales service network. With the aim of "Water Treatment Equipment Expert Worldwide!", Jufu has successfully promoted its product into the global Water purification and water treatment field. Right now products from Jufu has successfully access to Southeast Asia, Middle East, South American and Africa market.
In the future, Jufu will continue to move forward with relentless efforts, and actively advocate "Safe, Clean and Pure" to achieve business vision of being a Top-class Water purification and water treatment products manufacturer, and an excellent Water engineering service provider!
Project display
Our Suppliers
Packaging and Shipping
FAQ:
1. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)
Model 4040 is designed by 0.25m3/h
Model 8040 is designed by 1-1.2m3/h
2. What is the material of mechanical filter?
Carbon steel, stainless steel, fiberglass
3.What are the multi-way control valves?
Manual control valve, automatic control valve
Multi - way control valve is divided into: filter valve and softening valve
Automatic control valve is divided into: time type and flow type.
Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean source, etc.
