| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-250L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Power Supply: | 220V /380V/460V - 50Hz/60Hz,220V 50Hz Can Be Customized | Outlet Flow: | 250L/h |
|---|---|---|---|
| Desalination Rate: | ≥99.5% | Raw Water Pump: | CNP/NYP/GRUNDFOS (Optional) |
| Membrane Size: | 4040 | Membrane Elements: | DOW/Hydranautics/Troy/Vontron (optional) |
| Control Valve: | Manual/Automatic | Control Valve Brand: | FLECK/RUNXIN |
| Tank Material: | SS/FRP (Optional) | Pipe Material: | U-PVC, Stainless Steel (Optional) |
| High Light: | 250lph Ro Water Purifier,Industrial Automatic Ro Water Desalination System,460V Ro Water Treatment Plant |
||
Industrial 250lph Ro Water Treatment Plant Reverse Osmosis System Water Purifier
Product Introduction of RO Water Treatment System
Reverse osmosis is the most advanced and effective desalting technology. The principle is that under the higher pressure more than the dissolved solution osmotic pressure. Only follow water molecules through the reverse osmosis membrane. Then the solute and solvent separated, thereby getting the purified water. The fine particles, colloid, organic matter, bacteria, virus and 99%the dissolved salt can be removed by the water quality stability etc. already widely used in electronic, electrical, pharmaceutical, food and other fields.
Advantages of RO water treatment system:
Technical Features:
1. American ultra-low pressure roll-type composite reverse osmosis membrane with high desalination rate and low operating pressure, excellent water quality, low operating cost and long service life;
2. High-efficiency, low-noise, high-quality high-pressure pumps;
3. The online product water conductivity meter can monitor the water quality at any time;
4. The product water and concentrated water are equipped with flow meters to monitor the water output and recovery rate of the system;
5. Pressure gauges before and after the fine filter, and pressure gauges before and after the reverse osmosis membrane can continuously monitor the pressure difference between the reverse osmosis membrane and the fine filter, prompting when to clean or replace;
6. The high pressure switch protects the reverse osmosis membrane from damage due to excessive pressure;
7. The low-pressure switch protects the high-pressure pump from damage due to water supply stop;
8. The stainless steel regulating valve adjusts the water output and the system recovery rate at any time;
9. The standard program automatic control system can reduce the membrane fouling speed, prolong the service life of the membrane, and ensure the stable and reliable water quality of the system effluent.
Process flow of RO Water Treatment System
Raw water → Raw water tank → Raw water pump → Multi-media filter (quartz sand filter) → Activated carbon filter → Soft water processor → Precision filter → High pressure pump → Primary reverse osmosis (RO) device → Purified water tank → High pressure pump → Two Stage reverse osmosis → ultraviolet sterilization device → water point.

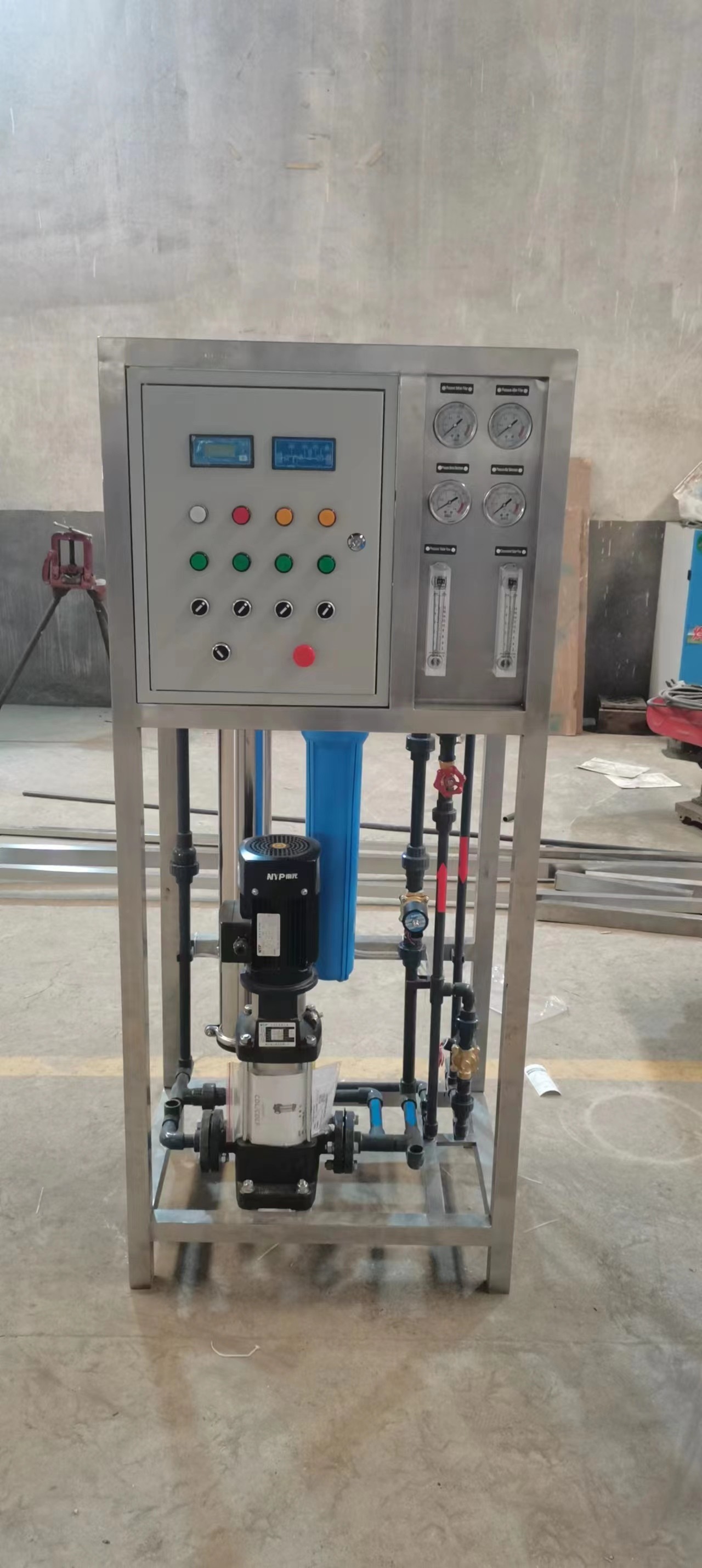

Photos of Reverse Osmosis Water Treatment System
FAQ:
1. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)
Model 4040 is designed by 0.25m3/h
Model 8040 is designed by 1-1.2m3/h
2. What is the material of mechanical filter?
Carbon steel, stainless steel, fiberglass
3.What are the multi-way control valves?
Manual control valve, automatic control valve
Multi - way control valve is divided into: filter valve and softening valve
Automatic control valve is divided into: time type and flow type.
Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean source, etc.
