| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-500L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Tank Material: | SS/FRP (optional) | Warranty: | 1 Year |
|---|---|---|---|
| Capacity: | 500L/H | Recovery Rate: | 50% |
| Desalination Rate: | ≥99.5% | Membrane Size: | 4040 |
| Raw Water Pump: | CNP/NYP/GRUNDFOS (optional) | Power: | 1.5KW |
| Power Supply: | 220V/380V/460V-50Hz Can Be Customized | MOQ: | 1 Unit |
| High Light: | Drinking RO Water Purification Machine,One Stage Reverse Osmosis System,500LPH RO Water Purification Equipment |
||

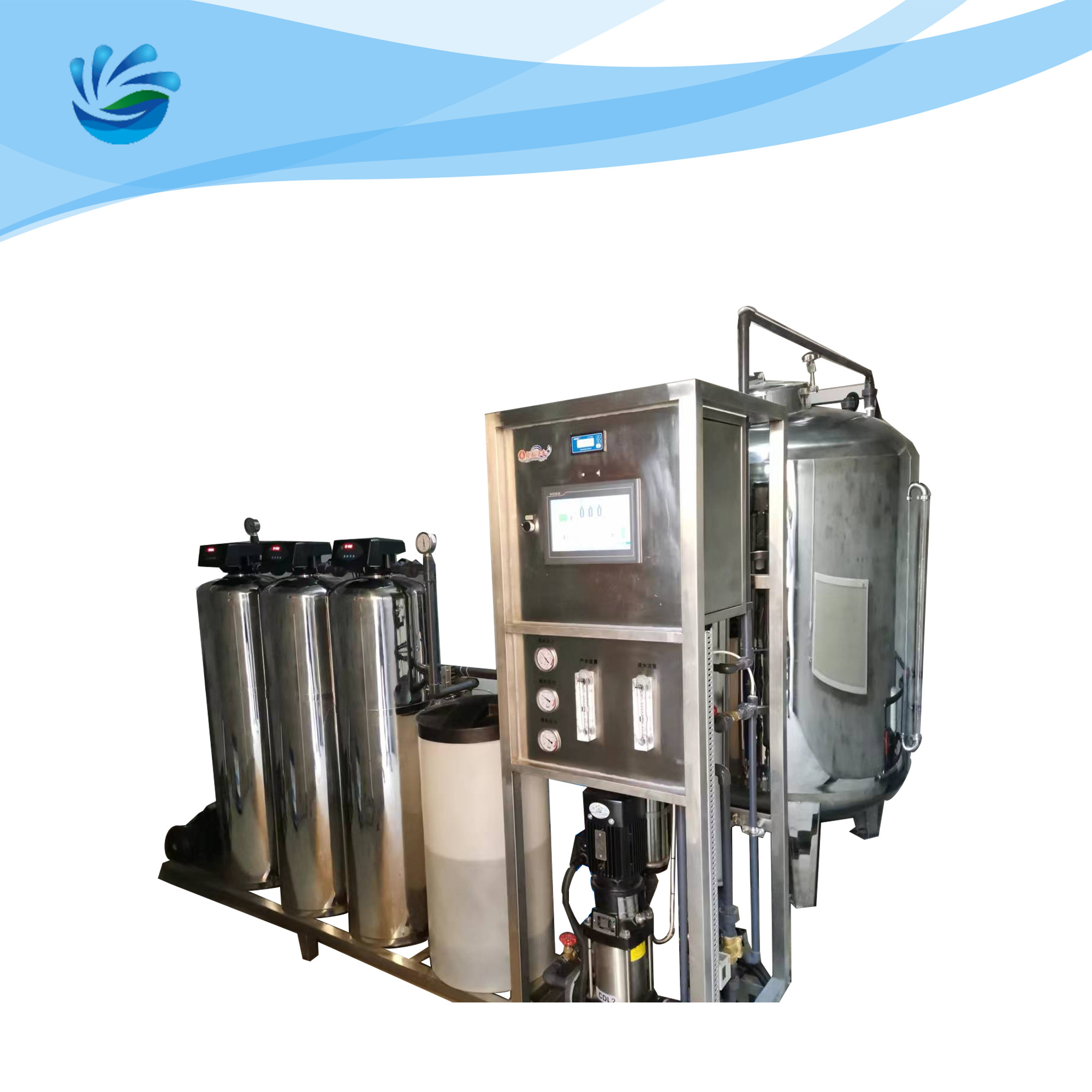

Ro Water Purification Machine One Stage Reverse Osmosis System For Drinking
What is Drinking Water RO Systems?
It is a membrane separation operation that uses a pressure difference as a driving force to separate a solvent from a solution. Apply pressure to the feed liquid on one side of the membrane. When the pressure exceeds its osmotic pressure, the solvent will reverse osmosis against the direction of natural osmosis. Thereby, the permeated solvent, ie permeate, is obtained on the low pressure side of the membrane; the concentrated solution, ie the concentrated solution, is obtained on the high pressure side. If reverse osmosis is used to treat seawater, fresh water is obtained on the low pressure side of the membrane, and brine is obtained on the high pressure side.
Technical specifications of Drinking Water RO Systems
| Model | JFRO-500L |
| Host Size | can be customized |
| Power | 1.5KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 50% |
| Designed Water Inlet | 1000L/h |
| Outlet Flow | 500L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304/Carbon Steel (Optional) |
| Membrane Size40 | 4040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 2 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | FRP/SS(optional) |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
Process flow of Drinking Water RO Systems
Source water tank → source water booster pump → multi-media filter → active carbon filter → resin softening device → precision filter → first RO reverse osmosis pure water system → second RO reverse osmosis pure water system → water-gas mixer → ozone sterilizer → stainless steel pure water tank → automatic filling line
Drinking water RO system membrane advantages:
1. Cross-flow operation process, strong anti-pollution ability, good regeneration performance and long service life.
2. The separation precision is high, and the permeated liquid is clear and transparent, which greatly reduces the load of the subsequent refining process.
3. Achieve high multiple concentration of fermentation broth and improve product yield.
4. While improving the product yield, the bacteria in the fermentation broth can be recovered, bringing more profit points and environmental protection benefits to the enterprise.
5. There is no need for filter aids in the treatment process, and there is no retention of active ingredients in the fermentation broth.
6. Realize clean production, reduce the amount of acid, alkali and water washing, and greatly improve the biodegradability of wastewater.
7. There is no phase change in the system operation, low energy consumption and lower production cost.
FAQ:
1. What is the shell film material and specification of ro water treatment system?
Material of membrane case: stainless steel and fiberglass (FRP)
Specification of membrane shell: four inch membrane shell 4040 (one core to four core)
8 inch membrane case 8040 (one to seven cores)
Water inlet: end water inlet, side water inlet
2. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)
Model 4040 is designed by 0.25m3/h
Model 8040 is designed by 1-1.2m3/h
3. What is the material of mechanical filter?
Carbon steel, stainless steel, fiberglass
