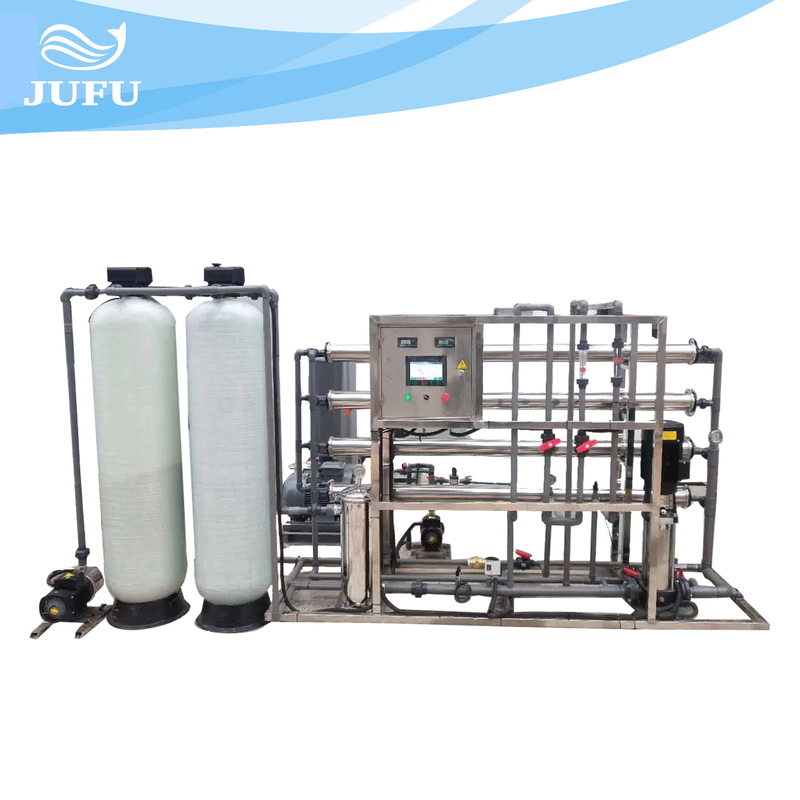

1000LPH Drinking Water RO System Single Stage Reverse Osmosis FRP

Drinking Water RO System Single Stage Reverse Osmosis FRP 1000LPH

Drinkging water RO system preprocessing method:

(1) Physical method
Physical methods include ① precipitation method or air flotation separation method, ② sand filtration, pre-coating (filter aid) filtration, filter cartridge filtration, fine filtration, etc., ③ activated carbon adsorption method, ④ cooling or heating.
(2) Chemical method
Chemical methods include ① oxidation method: use ozone, air, oxygen, chlorine and other oxidants for oxidation, ② reduction method, ③ pH value adjustment method
(3) Photochemical method
The photochemical pretreatment method mainly refers to ultraviolet irradiation.

Technical specifications of Drinking Water RO System

Drinking Water RO System preprocessing requirements:

1. The reverse osmosis pretreatment must be able to remove most of the impurities in the raw water to meet the water inlet requirements;
2. Reverse osmosis pretreatment must consider changes in water quality to prevent fluctuations in raw water quality from affecting the stable operation of the entire system;
3. The reverse osmosis pretreatment process must be able to operate efficiently and stably, while simplifying the process as much as possible to reduce investment and operating costs

Drinking Water RO System process flow:

Source water tank → source water booster pump → multi-media filter → active carbon filter → resin softening device → precision filter → first RO reverse osmosis pure water system → second RO reverse osmosis pure water system → water-gas mixer → ozone sterilizer → stainless steel pure water tank → automatic filling line

Drinking Water RO System maintenance:

A. Long-term uninterrupted operation can inhibit the growth of bacteria, and can also dissolve the pollutants or loose on the membrane.
B. Recycle of concentrated water. The advantage is that the lateral flow rate is increased, so that the pollutants on the membrane surface can be washed away. The disadvantage is that the capacity of the RO feed pump is increased, and the salt content of the RO membrane water is also increased by 10%.
C. Low-pressure flushing after each operation stop. The advantage is that contaminants and concentrated water are flushed out of the membrane elements.
D. Regular low-pressure flushing and regular disinfection during long-term outages. Standing water can cause serious microbial contamination problems when an RO system is out of service for an extended period of time, especially in warmer climates. First, use the reverse osmosis product water to flush out the concentrated water in the system, and flush it regularly to keep the stagnant water on the surface of the membrane element flushed out to prevent biological growth.
E. Regular disinfection to control the growth of organisms on the membrane surface

FAQ:

1. What is the shell film material and specification of ro water treatment system?

Material of membrane case: stainless steel and fiberglass (FRP)

Specification of membrane shell: four inch membrane shell 4040 (one core to four core)

8 inch membrane case 8040 (one to seven cores)

Water inlet: end water inlet, side water inlet

2. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)

Model 4040 is designed by 0.25m3/h

Model 8040 is designed by 1-1.2m3/h

3. What is the material of mechanical filter?

Carbon steel, stainless steel, fiberglass
