| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-6T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Tank Material: | SS/FRP (optional) | Warranty: | 1 Year |
|---|---|---|---|
| Capacity: | 6t/H | Recovery: | 60% |
| Desalination Rate: | ≥99.5% | MOQ: | 1 Unit |
| RO Frame: | SUS304 | Operating Pressure: | 0.8-1.2MPa |
| High Light: | 6TPH Drinking Water RO System,Drinking Water Ro Treatment Plant,Drinking Water RO System OEM |
||
6T Drinking Water RO System Direct Drinking Water Ro Treatment Plant
Definition of Drinking Water RO System
Reverse osmosis technology is to apply a pressure greater than osmotic pressure to the solution, so that water is separated from the solution through a special semi-permeable membrane. Because this process is the opposite of osmosis, it is called reverse osmosis.
Technical specifications of Drinking Water RO System
|
|||||||||||||||||||||||||||||||||||||||||||
Drinking Water RO System Components
1. Preprocessing
2. Reverse osmosis
3. Post-processing
4. Cleaning
5. Electrical control
Process flow of Drinking Water RO System
Source water tank → source water booster pump → multi-media filter → active carbon filter → resin softening device → precision filter → first RO reverse osmosis pure water system → second RO reverse osmosis pure water system → water-gas mixer → ozone sterilizer → stainless steel pure water tank → automatic filling line
Characteristics of Drinking Water RO System
1. Cross-flow operation process, strong anti-pollution ability, good regeneration performance and long service life.
2. The separation precision is high, and the permeated liquid is clear and transparent, which greatly reduces the load of the subsequent refining process.
3. Achieve high multiple concentration of fermentation broth and improve product yield.
4. While improving the product yield, the bacteria in the fermentation broth can be recovered, bringing more profit points and environmental protection benefits to the enterprise.
5. There is no need for filter aids in the treatment process, and there is no retention of active ingredients in the fermentation broth.
6. Realize clean production, reduce the amount of acid, alkali and water washing, and greatly improve the biodegradability of wastewater.
7. There is no phase change in the system operation, low energy consumption and lower production cost.

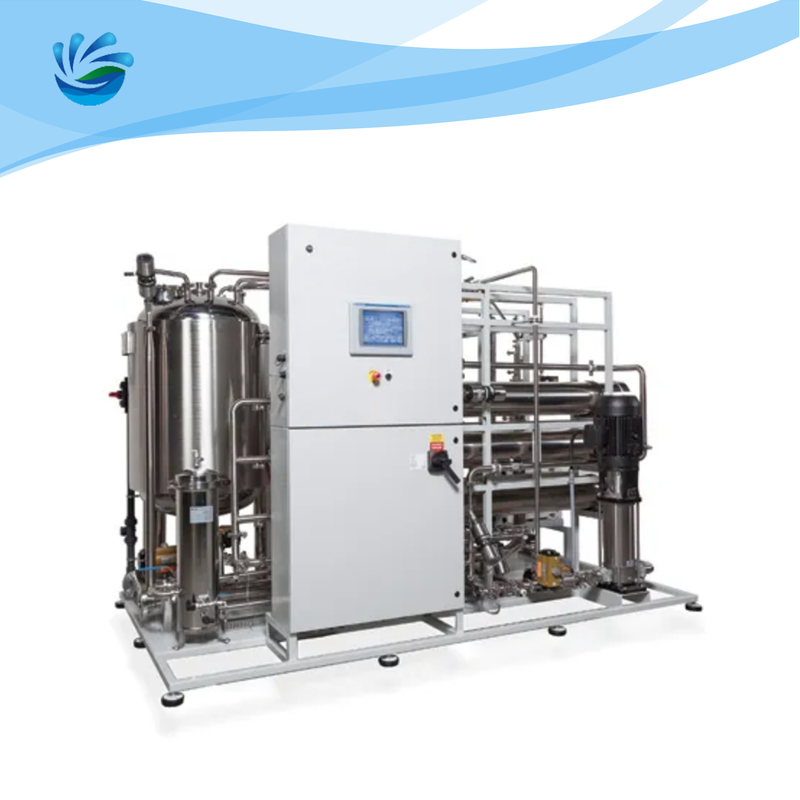

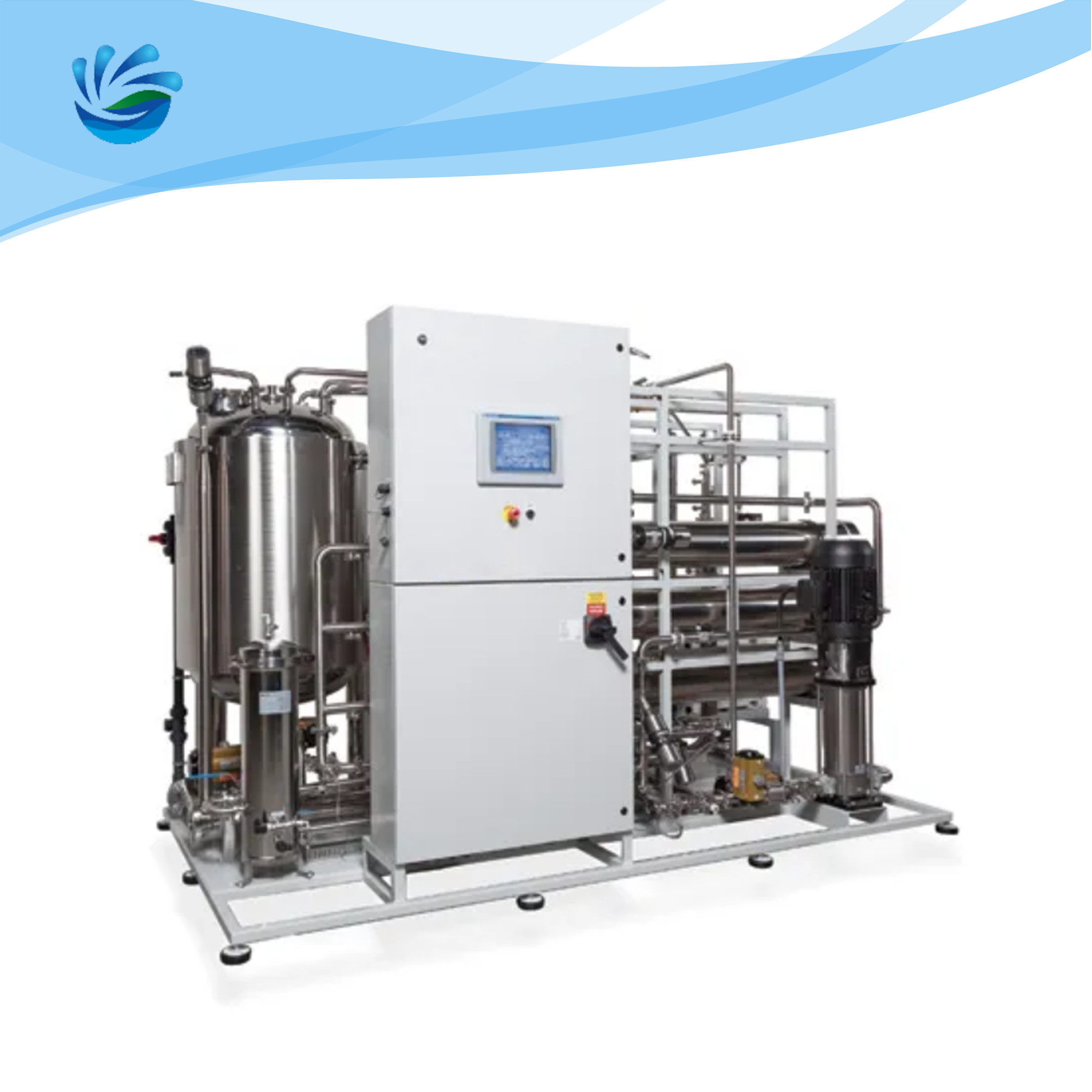

Photos of Drinking Water RO System
FAQ:
1. What is the shell film material and specification of ro water treatment system?
Material of membrane case: stainless steel and fiberglass (FRP)
Specification of membrane shell: four inch membrane shell 4040 (one core to four core)
8 inch membrane case 8040 (one to seven cores)
Water inlet: end water inlet, side water inlet
2. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)
Model 4040 is designed by 0.25m3/h
Model 8040 is designed by 1-1.2m3/h
3. What is the material of mechanical filter?
Carbon steel, stainless steel, fiberglass
