| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFUF-15T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Rack Material: | SUS304/Carbon Steel (optional) | Pipe Material: | U-PVC/Stainless Steel (optional) |
|---|---|---|---|
| UF Membrane: | PVC/PAN/PVDF(optional) | Warranty: | 1 Year |
| Operating Pressure: | 0.1-0.3MPa | MOQ: | 1 Unit |
| Capacity: | 15T Per Hour | After-sales Service Provided: | Online Support |
| High Light: | Ultrafiltration Water Treatment Plant 15TPH,PVDF Ultra Filtration Plant,Ultrafiltration Water Treatment Equipment |
||
Ultrafiltration Water Treatment System Ultra Filtration Plant
Ultrafiltration water treatment system is a semi-permeable membrane in solution separation technology of purification, separation or concentration. Industrial water ultrafiltration systems can be used for pre-treatment and post-treatment and have automatic water collection and backwash capabilities, thus reducing the frequency of cleaning and disinfection of RO systems and being more stable than multi-media filters.
The principle of ultrafiltration water treatment system is one of membrane separation technologies driven by pressure. For the purpose of separation of large and small molecules, the membrane aperture is between 20 and 1000A°. Hollow fiber ultrafilter (membrane) has the advantages of high filling density and small occupation area.
Technical specifications of Ultrafiltration Water Treatment System
| UF System | |
| Model | JFUF-15T |
| Host Size | can be customized |
| Operating Pressure | 0.1-0.3MPa |
| Recovery Rate | 85% |
| Rack Material | SUS304/Carbon Steel (Optional) |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
| Ultra-filtration Membrane | PVC/PAN/PVDF (Optional) |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Outlet Flow | 15T/h |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
Workflow of Ultrafiltration Water Treatment System
Raw water + original water tank + original water pump + sand filter + carbon filter + softener (optional)+ safety filter + high pressure pump + UF(ultrafiltration) system + mineral water tank + ULTRAVIOLET sterilizer (ozone generator)+ water supply point
Direction of electrical control system:
1 PLC(programmable logic controller): according to the need to design the program.
Air switch: protect electrical system
3 automatic controller, RO film can automatically wash.
Ultrafiltration Water Treatment System Components:
There are several consumables that you need to replace regularly. (1,000 miles per hour)
A. Quartz sand: replaced approximately every 15 months. 100kg/bag
B. Activated carbon: Replace it approximately every 15 months. 25kg/bag
C. Resin: Replaced approximately every 15 months. 25 l/bag
D. Polypropylene cartridge: replace approximately every month, 20 "x 5um
E. Ultrafiltration membranes: replace them approximately every year
We recommend that you buy 1-2 years of consumption PP filter element together with the machine. Because these PP filter elements need to be replaced every month, to avoid the breeding of bacteria on its surface.
Ultrafiltration Water Treatment System has the following outstanding:
A. Advanced ultrafiltration membrane elements
B. High system recovery rate
C. There is no phase transition
D. Low energy consumption, short production cycle and low equipment operation cost
E. Small footprint, simple operation and maintenance, low labor intensity
F. Site hygiene is clean
G. The control system can be designed according to the specific requirements of users

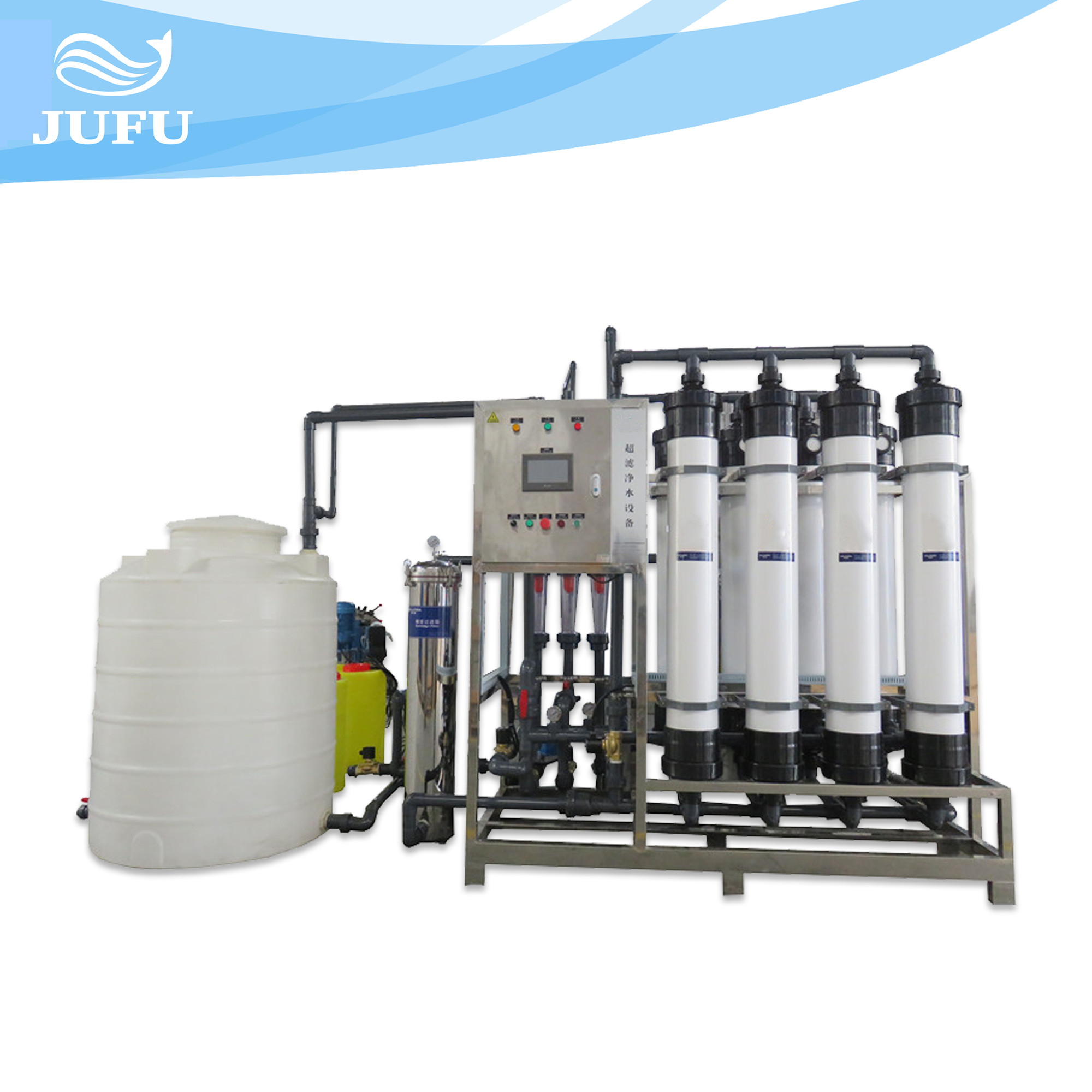

Photos of Ultrafiltration Water Treatment System
FAQ:
1. What is the material of ultrafiltration membrane?
Polyacrylonitrile (PAN), polyethersulfone (PES), polyvinyl chloride (PVC), polysulfone (PS), polyvinylidene fluoride (PVDF)
2. What are the types of ultrafiltration membranes?
Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane
3. What is the operation mode of ultrafiltration membrane?
Operation mode: internal pressure type, external pressure type
