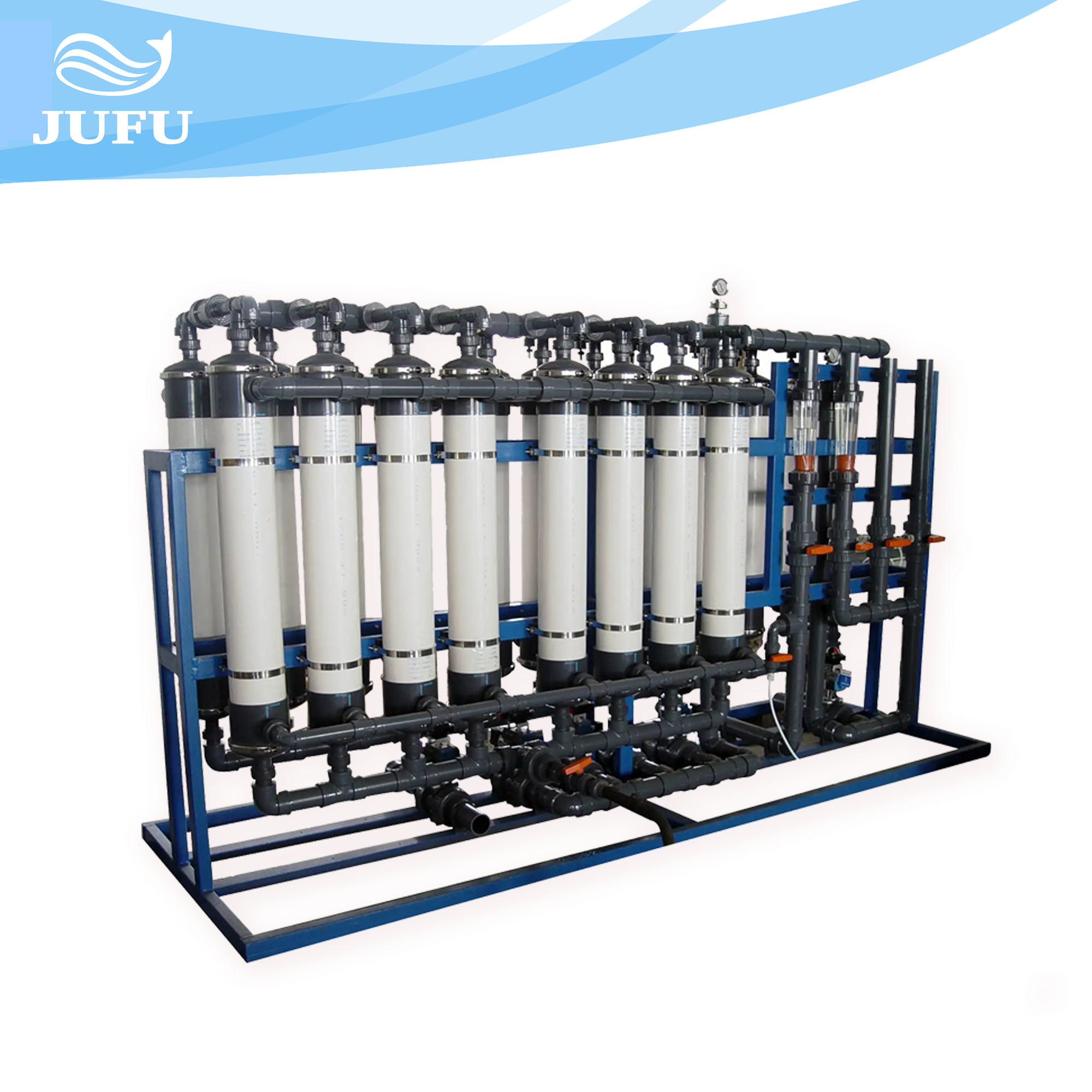

30TPH Ultrafiltration Water Treatment System Water Purifier Plant

30TPH Ultrafiltration Water Treatment System Water Purifier Plant

The mechanism of ultrafiltration water treatment system refers to the comprehensive effect of membrane surface mechanical screening, membrane pore block and membrane surface and membrane pore adsorption, mainly sieve. In the field of water treatment, it can be used to remove colloids, particles, bacteria, viruses, heat sources and macromolecular organic matter in water to purify water quality. A semi-permeable membrane is a thin layer of material capable of separating materials when a driving force is applied to the membrane.

What is the basic principle of Ultrafiltration Water Treatment System?

Ultrafiltration water treatment equipment system is a process of cross-flow and tangential flow. The liquid to be filtered flows along the membrane surface, forming fluid shear on the filtration membrane, making it difficult for pollutants to form on the membrane surface. The sample to be filtered is pressurized by the pump and then input into the membrane module. Due to the pressure difference between the inside and outside of the membrane, part of the liquid penetrates through the filtration membrane into the smaller hole, that is, through the liquid, while the virus or other large molecules in the sample are intercepted into the larger hole, that is, the reflux liquid.

Technical specifications of Ultrafiltration Water Treatment System

Process flow of Ultrafiltration Water Treatment System

Excellent points of Ultrafiltration Water Treatment System

1, Ultra-filtration membrane elements are the world's highest quality organic membrane elements, it can achieve retention performance and membrane throughput

2, The system has a high recovery rate with excellent product performance, which can achieve efficient separation, purification and high-fold concentration.

3, The treatment process has no phase change, no adverse effect on the constituents of the material, and the separation, purification and concentration process is always at room temperature, especially suitable for the treatment of heat-sensitive substances, completely avoiding the disadvantage of high temperature on the destruction of bio-active substances, effectively retaining the bio-active substances and nutrients in the original material system.

4, The system has low energy consumption, short production lead time, and low operating cost compared with traditional equipment, which can effectively reduce production cost and improve efficiency.

5, The system has advanced design, high degree of integration, small size with compact structure, easy operation and maintenance,low labor intensity.

6, The control system can be customized according to user's requirements, combined with advanced control software, on-site monitoring of key process operating features, to avoid manual mishandling, multi-faceted to ensure long-term stable operation of the system.

Membrane characteristics of Ultrafiltration Water Treatment System

(1) High interception rate :99.9999%,

(2) Maximum inlet pressure: 0.2mpa,

(3) MWCO:6000 Dalton, 10000 Dalton, 100000 Dalton, 200,000 Dalton,

(4) Application: removal of pyrogens and endotoxins in pharmaceutical industry.

Filtering can be from the outside in or the inside out, depending on your choice.

Photos of Ultrafiltration Water Treatment System

FAQ:

1. What are the types of ultrafiltration membranes?

Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane

2. What is the operation mode of ultrafiltration membrane?

Operation mode: internal pressure type, external pressure type

3. What is the shell material of the ultrafiltration membrane?

Shell material: ABS, PVC, PMMA, stainless steel
