| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFUF-60T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Certification: | ISO9001 | Model: | JFUF-60T |
|---|---|---|---|
| Type: | UF System | Rack Material: | SUS/Carbon Steel |
| Warranty: | 1 Year | Host Size: | Can Be Customized |
| Capacity: | 60T Per Hour | Operating Pressure: | 0.1-0.3MPa |
| High Light: | Ultrafiltration Water Treatment System 60TPH,UF Membrane Treatment Plant 60TPH,Ultrafiltration Water Treatment System |
||

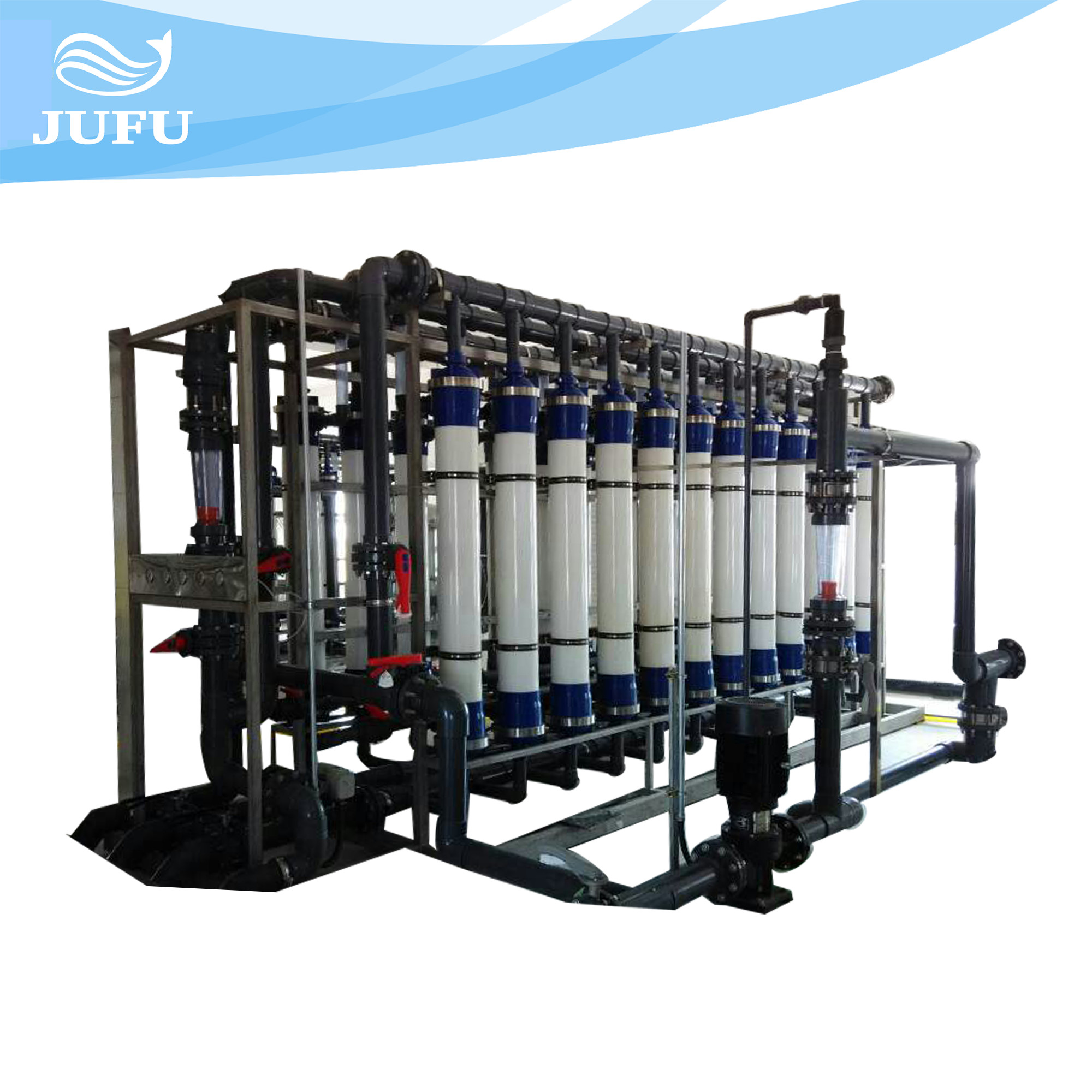

Ultrafiltration Water Treatment System 60TPH UF Membrane Treatment Plant
Characteristics and application fields of Ultrafiltration Water Treatment System
The series of ultrafiltration elements equipped with modified polypropylene hollow fiber membrane with high strength and toughness are used for continuous filament, high flux and anti-pollution properties. Flux can be recovered through recoil without chemical dispersion washing during operation. The hydraulic load of each component is uniform and there is no dead Angle, so it is easier to discharge pollutants when backwashing and chemical cleaning. Adapt to all kinds of water quality, the water is clear and transparent, SDI stability ≤3, better than the reverse osmosis system inlet requirements. Compact equipment, small footprint, modular design for easy expansion, automatic operation, maintenance free work.
After filtration and biochemical treatment, the urban sewage reaches the standard for reuse of mixed water, industrial wastewater is deeply treated for reuse, tap water, groundwater and surface water are sterilized, turbid and purified, large-scale reverse osmosis system is pre-treated, seawater desalination is pre-treated, and industrial cooling water is purified and reused.
Technical specifications of Ultrafiltration Water Treatment System
|
UF System |
|
|
Model |
JFUF-60T |
|
Host Size |
can be customized |
|
Operating Pressure |
0.1-0.3MPa |
|
Recovery Rate |
85% |
|
Rack Material |
SUS304/Carbon Steel (Optional) |
|
Pipe Material |
U-PVC/ Stainless steel (Optional) |
|
Ultra-filtration Membrane |
PVC/PAN/PVDF (Optional) |
|
Raw Water Pump |
CNP/NYP/GRUNDFOS (Optional) |
|
Tank Material |
SS/FRP(Optional) |
|
Outlet Flow |
60t/h |
|
Power Supply |
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
What is Ultrafiltration Water Treatment System?
Ultrafiltration water treatment system is mainly the use of polysulfone, microporous polyethersulfone ultrafiltration membrane (molecular weight cut thousands of Dalton) filter impurities in the effluent, can remove more than 98% of the organic matter. Ultrafiltration membrane is a kind of microporous filtration membrane with uniform pore size and rated pore size ranging from 0.001-0.02 micron.
The Working Principle of the Ultrafiltration Water Treatment System
At room temperature with a certain pressure and flow, the use of asymmetric microporous structure and semi-permeable membrane medium, relying on the pressure difference on both sides of the membrane as a driving force, filtration in cross-flow mode, so that the solvent and small molecules through, macromolecular substances and micro particles such as proteins, water-soluble polymers, bacteria, etc. Thus to achieve separation, classification, purification, concentration of a new membrane separation technology.
Flow chart of Ultrafiltration Water Treatment System
Raw water + original water tank + original water pump + sand filter + carbon filter + security filter + UF system + pure water tank + UV sterilizer (ozone generation)+ precision filter + water supply point
Ultrafiltration Water Treatment System steps:
1. Sand filter: use 0.5-1 mm sand medium. The filter can be as small as 200 microns in size. Some large suspended solids such as suspended solids, rust, mud, impurities, etc. can be trapped by the medium bed. And removed from the water. steps
2, activated carbon filter: can absorb some organic matter, dissolved air, smell and color substances. steps
3, softener (optional): the use of cation exchange resin to remove calcium, magnesium and other soft water.
4, micron filter: use 5-20 micron precipitate cartridge filter/bag filter, remove the suspended solid through the pretreatment. So the RO entrance is more secure.
5. Ultrafiltration system (ultrafiltration membrane intercepts most ions. Demineralization/desalination, etc. The output will be pure water.
6, ultraviolet sterilizer (ozone generator): used to kill bacteria in water, safe to drink.
Photos of Ultrafiltration Water Treatment System
FAQ:
1. What are the types of ultrafiltration membranes?
Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane
2. What is the operation mode of ultrafiltration membrane?
Operation mode: internal pressure type, external pressure type
3. What is the shell material of the ultrafiltration membrane?
Shell material: ABS, PVC, PMMA, stainless steel
