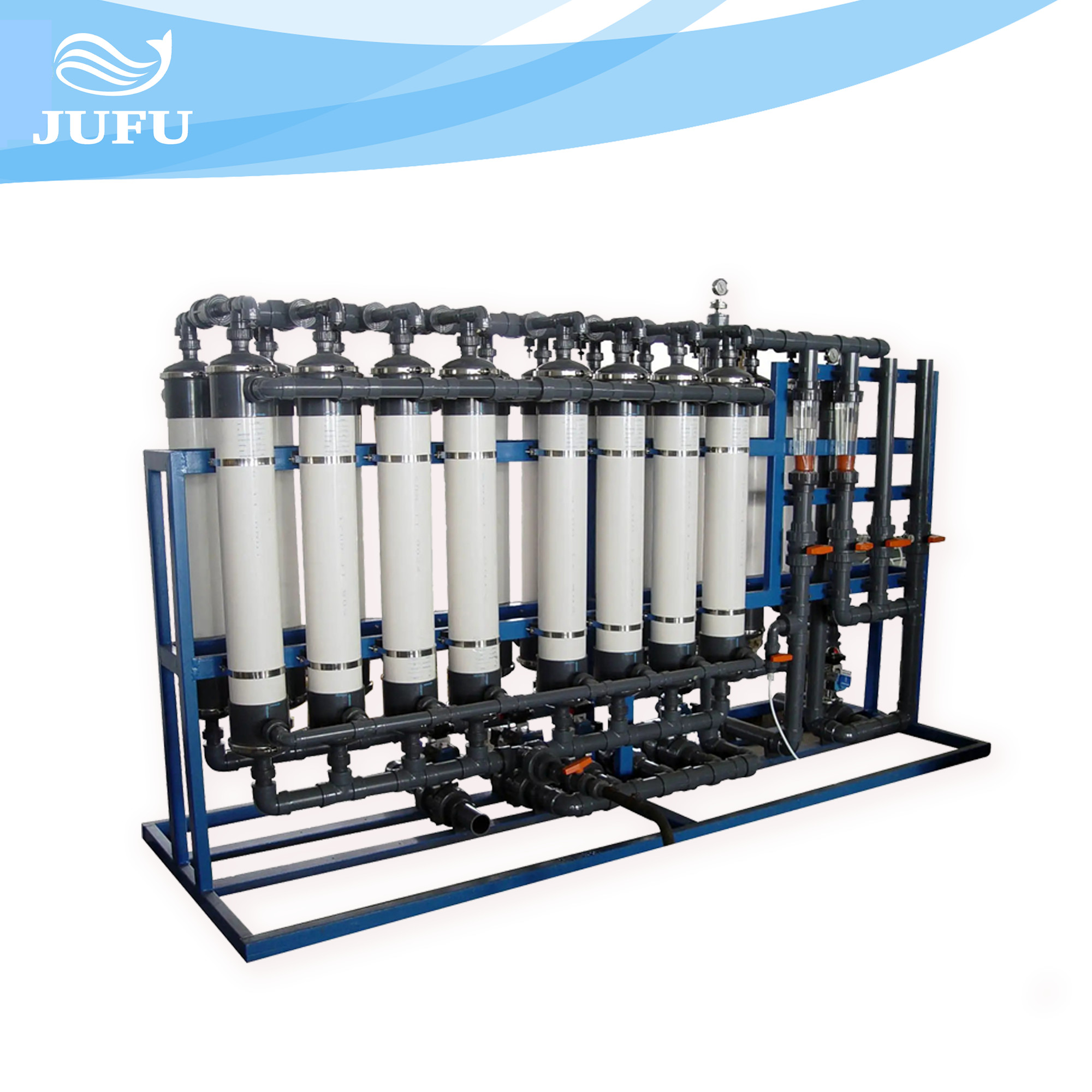

30TPH Ultrafiltration Water Treatment System UF Purifier Plant

30TPH Ultrafiltration Water Treatment System UF Purifier Plant

Ultrafiltration is a hollow fiber filtration technology, with three stage pretreatment filtration to remove impurities in tap water; Ultrafiltration micropores less than 0.01 micron, can thoroughly filter bacteria, rust, colloid and other harmful substances in the water, retain the original trace elements and minerals in the water. Suspended solids and high molecular weight solutes are retained in so-called residues, while water and low molecular weight solutes pass through the membrane as permeates. This separation method is used in industry and research to purify and concentrate macromolecule (103-106 Da) solutions, especially protein solutions.

How does an ultrafiltration membrane works?

Ultrafiltration membrane is an asymmetric semi-permeable membrane made of macromolecular material. As a means of separation without phase change in solution, it can remove particles with a molecular weight in the range of 1500-100000 Daltons, and can effectively remove organic matter, bacteria, Viruses, colloids and non-ionic suspended solids.

Technical specification of Ultrafiltration Water Treatment System

Workflow of Ultrafiltration Water Treatment System

Raw water → raw water pump → quartz sand filter → softener → activated carbon filter → security filter → ultrafiltration device → ultraviolet sterilizer (ozone generator)→ pure water tank → water supply point

Advantages of Ultrafiltration Water Treatment System

1, Ultra-filtration membrane elements are the world's highest quality organic membrane elements, it can achieve retention performance and membrane throughput
2, The system has a high recovery rate with excellent product performance, which can achieve efficient separation, purification and high-fold concentration.
3, The treatment process has no phase change, no adverse effect on the constituents of the material, and the separation, purification and concentration process is always at room temperature, especially suitable for the treatment of heat-sensitive substances, completely avoiding the disadvantage of high temperature on the destruction of bio-active substances, effectively retaining the bio-active substances and nutrients in the original material system.
4, The system has low energy consumption, short production lead time, and low operating cost compared with traditional equipment, which can effectively reduce production cost and improve efficiency.
5, The system has advanced design, high degree of integration, small size with compact structure, easy operation and maintenance,low labor intensity.
6, The control system can be customized according to user's requirements, combined with advanced control software, on-site monitoring of key process operating features, to avoid manual mishandling, multi-faceted to ensure long-term stable operation of the system.

Ultrafiltration Water Treatment System scope of application:

1. Clarification and concentration of dairy products, fruit juices, vegetable juices, etc.
2. Extraction of active ingredients from animals and plants (aloe, mangosteen, tea, etc.).
3. Extraction and concentration of soybean protein, oligosaccharides, isoflavones, etc.
4. Purification and concentration of fermentation broth such as antibiotics, amino acids, and Vc.
5. Purification and separation of active ingredients in traditional Chinese medicine (Bupleurum, Salvia, Scutellaria, etc.) injection.
6. Polysaccharides (Ganoderma lucidum, Grifola frondosa, mushrooms, etc.) are purified and concentrated.
7. Desalting and concentration of fluorescent whitening agent.

Ultrafiltration membrane characteristics

(1) High interception rate: 99.9999%
(2) Maximum inlet pressure: 0.2Mpa
(3) MWCO: 6000 Daltons, 10000 Daltons, 100000 Daltons, 200000 Daltons
(4) Application: Removal of pyrogen and endotoxin in pharmaceutical industry

Filtering can be outside-in or inside-out, depending on your choice.
