| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFUF-20T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Rack Material: | SUS/Carbon Steel | Certification: | ISO9001 |
|---|---|---|---|
| Capacity: | 20t Per Hour | MOQ: | 1 Unit |
| Warranty: | 1 Year | Host Size: | Can Be Customized |
| Recovery Rate: | 85% | Tank Material: | SS/FRP (optional) |
| High Light: | 20TPH Ultra Filtration Plant,20TPH ultra filtration water treatment,ultra filtration equipment 20t per hour |
||
20TPH Ultrafiltration Water Treatment System Ultra Filtration Plant UF Water Purifier
Description of Ultrafiltration Water Treatment System
Ultrafiltration system is a part of the water treatment system based on the customer's water quality and is also a purification, separation or concentration function of semi-permeable membrane in solution separation technology. In the field of water treatment, it can be used to remove colloid, particles, bacteria, viruses, heat and macromolecular organic matter in water, so that water is purified.
What is the principle of Ultrafiltration Water Treatment System
Ultrafiltration, also known as ultrafiltration, is used to trap colloidal sized particles in water, while water and low molecular weight solutes are allowed to penetrate the membrane. The mechanism of ultrafiltration refers to the comprehensive effect of mechanical screening on membrane surface, membrane pore block and membrane surface and membrane pore adsorption, mainly sieve.
Technical Specifications of Ultrafiltration Water Treatment System
|
UF System |
|
|
Model |
JFUF-20T |
|
Host Size |
can be customized |
|
Operating Pressure |
0.1-0.3MPa |
|
Recovery Rate |
85% |
|
Rack Material |
SUS304/Carbon Steel (Optional) |
|
Pipe Material |
U-PVC/ Stainless steel (Optional) |
|
Ultra-filtration Membrane |
PVC/PAN/PVDF (Optional) |
|
Raw Water Pump |
CNP/NYP/GRUNDFOS (Optional) |
|
Tank Material |
SS/FRP(Optional) |
|
Outlet Flow |
20t/h |
|
Power Supply |
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
Process flow of Ultrafiltration Water Treatment System
Raw water→raw water pump→sand filter→carbon filter→water softener→security filter→high pressure pump→ultrafiltration system→pure water tank
Application of Ultrafiltration Water Treatment System
In the field of wastewater treatment, ultrafiltration technology used in the treatment of leaching water in electroplating process is one of the successful examples. In the production process of metal products such as cars and furniture, after coating is deposited on the metal surface by electrophoresis, it is necessary to wash off the electroplating solution sucked on the product with clean water. The washing wastewater containing 1 ~ 2% of the coating is obtained by washing, and the water is separated by ultrafiltration device. After the concentration of the coating, the water can be reused for electric coating, and the water can also be directly used for cleaning, which can realize the recycling of water.
Ultrafiltration technology can also be used for textile mill wastewater treatment. There is polyvinyl alcohol (PVA) in the slurry of textile factory, which is recovered by ultrafiltration device, recycled water and used, and the concentrated PVA can be re-sizing.
Characteristics of Ultrafiltration Water Treatment System
(1) Ultra-high interception rate :99.9999%
(2) Maximum inlet pressure: 0.2mpa
(3) MWCO:6000 Dalton, 10000 Dalton, 100000 Dalton, 200,000 Dalton
(4) Application: removal of pyrogens and endotoxins in pharmaceutical industry

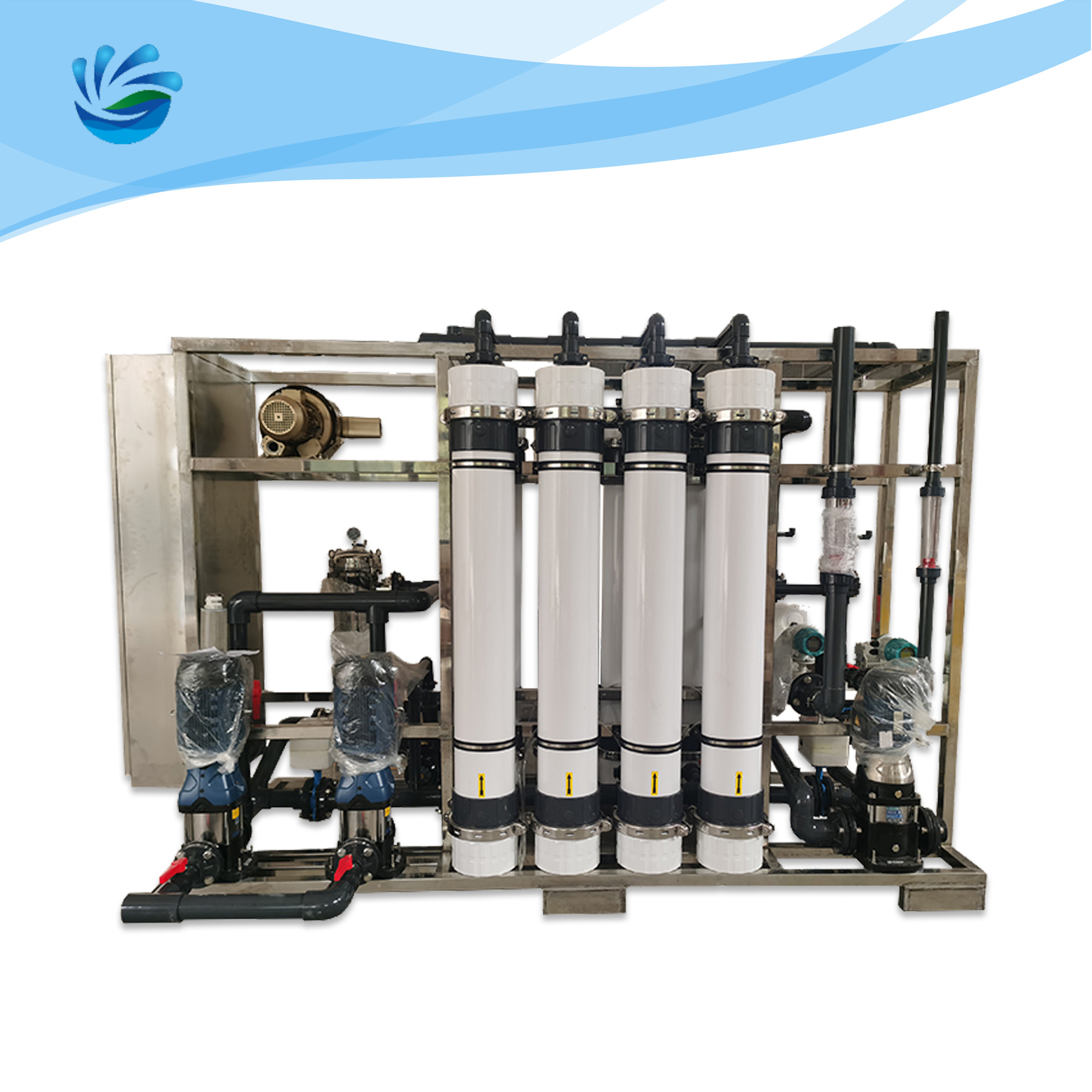

Photo display of Ultrafiltration Water Treatment System
FAQ:
1. What is the operation mode of ultrafiltration membrane?
Operation mode: internal pressure type, external pressure type
2. What is the shell material of the ultrafiltration membrane?
Shell material: ABS, PVC, PMMA, stainless steel
3.Main manufacturers and products of ultrafiltration membrane:
| Brand | DOW | Norit | AQUCELL | Litree | Motech | Motian | Other |
| Place of origin | USA | Netherlands | Wuhan | Hainan | Tianjin | Shandong | Like KOCH, SUEZ etc. |
| The main type | SFP series |
X-flow series |
AQUF |
LH series |
CMF series |
UF1,UF2 series |
