| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFUF-50T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Rack Material: | SUS/Carbon Steel | Warranty: | 1 Year |
|---|---|---|---|
| Capacity: | 50t/h | Pipe Material: | U-PVC/Stainless Steel (optional) |
| MOQ: | 1 Unit | Tank Material: | SS/FRP (optional) |
| Power Supply: | 220V/380V/460V-50Hz Can Be Customized | Recovery Rate: | 85% |
| High Light: | Water Reuse Ultrafiltration Water Treatment System,uf water filter system 50TPH,Ultrafiltration Water Treatment System UF Membrane |
||
Water Reuse Ultrafiltration Water Treatment Equipment UF Membrane 50TPH
Ultrafiltration Water Treatment System Description
UF system is the purification process of removing pollutants from raw water. Its purpose is to achieve the effect of water purification by pre-filter, reverse osmosis system, ultrafiltration system, high quality water processor, water purifier and so on, and water for different purposes. Water purification system can remove sand particles, organic suspended particles, parasites, giardia basiliensis, cryptosporidium, bacteria, algae, viruses and fungi, minerals such as calcium, silicon dioxide, magnesium and some toxic metals such as lead, copper and chromium.
The working principle of Ultrafiltration Water Treatment System
At room temperature with a certain pressure and flow, the use of asymmetric microporous structure and semi-permeable membrane medium, relying on the pressure difference on both sides of the membrane as a driving force, filtration in cross-flow mode, so that the solvent and small molecules through, macromolecular substances and micro particles such as proteins, water-soluble polymers, bacteria, etc. Thus to achieve separation, classification, purification, concentration of a new membrane separation technology.
Specifications of Ultrafiltration Water Treatment System
|
UF System |
|
|
Model |
JFUF-50T |
|
Host Size |
can be customized |
|
Operating Pressure |
0.1-0.3MPa |
|
Recovery Rate |
85% |
|
Rack Material |
SUS304/Carbon Steel (Optional) |
|
Pipe Material |
U-PVC/ Stainless steel (Optional) |
|
Ultra-filtration Membrane |
PVC/PAN/PVDF (Optional) |
|
Raw Water Pump |
CNP/NYP/GRUNDFOS (Optional) |
|
Tank Material |
SS/FRP(Optional) |
|
Outlet Flow |
50t/h |
|
Power Supply |
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
Typical process flow of Ultrafiltration Water Treatment System
Raw liquid - storage tank - pressure pump - precision filter - hollow ultrafiltration equipment - storage tank - backwash tank - backwash pump.
Characteristics and application fields of Ultrafiltration Water Treatment System
Characteristics:The series of ultrafiltration elements equipped with modified polypropylene hollow fiber membrane with high strength and toughness are used for continuous filament, high flux and anti-pollution properties. Flux can be recovered through recoil without chemical dispersion washing during operation. The hydraulic load of each component is uniform and there is no dead Angle, so it is easier to discharge pollutants when backwashing and chemical cleaning. Adapt to all kinds of water quality, the water is clear and transparent, SDI stability ≤3, better than the reverse osmosis system inlet requirements. Compact equipment, small footprint, modular design for easy expansion, automatic operation, maintenance free work.
Ultrafiltration Water Treatment System application fields:
After filtration and biochemical treatment, the urban sewage reaches the standard for reuse of mixed water, industrial wastewater is deeply treated for reuse, tap water, groundwater and surface water are sterilized, turbid and purified, large-scale reverse osmosis system is pre-treated, seawater desalination is pre-treated, and industrial cooling water is purified and reused.

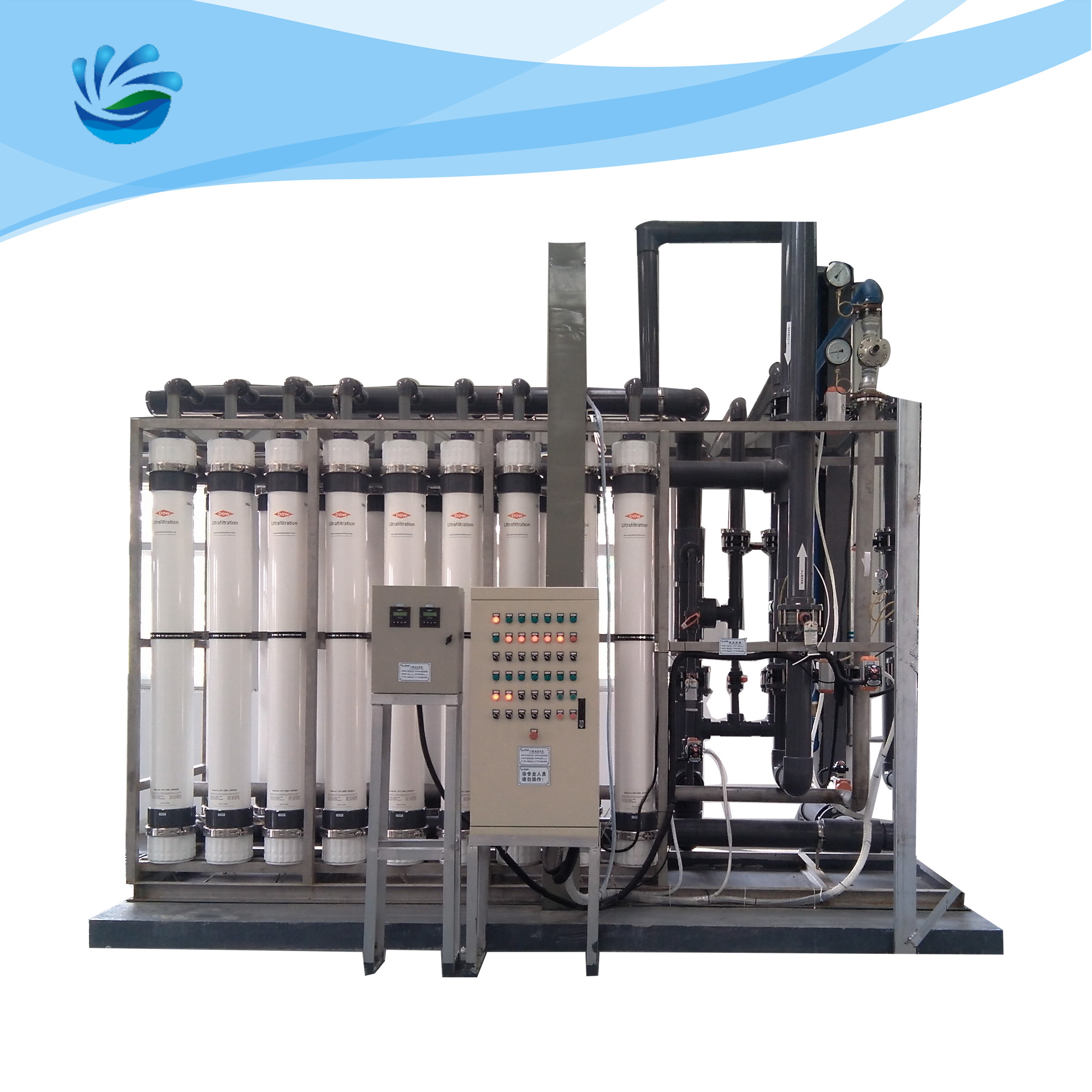

Photos and details of Ultrafiltration Water Treatment System
FAQ:
1. What are the types of ultrafiltration membranes?
Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane
2. What is the operation mode of ultrafiltration membrane?
Operation mode: internal pressure type, external pressure type
3. What is the shell material of the ultrafiltration membrane?
Shell material: ABS, PVC, PMMA, stainless steel
