| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFUF-2000L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Warranty: | 12 Months Warranty And Lifetime Service | Capacity: | 2000L/H |
|---|---|---|---|
| Host Size: | Can Be Customized | UF Membrane: | PVC/PAN/PVDF(optional) |
| Pipe Material: | U-PVC/Stainless Steel (optional) | Recovery Rate: | 85% |
| High Light: | Ultrafiltration Water Treatment System 2TPH,UF Membrane Ultra Filtration Plant,2000LPH Ultrafiltration Water Treatment System |
||

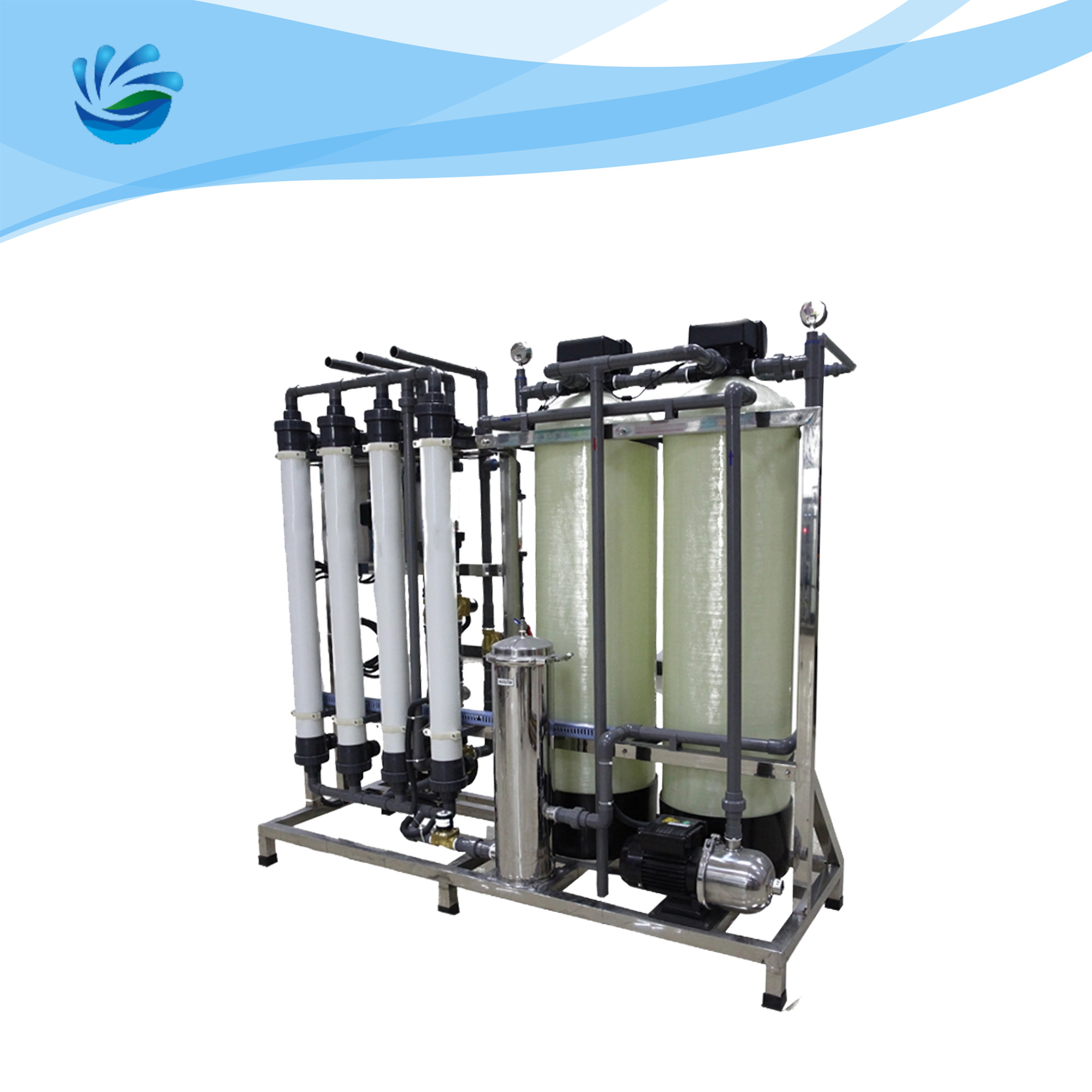

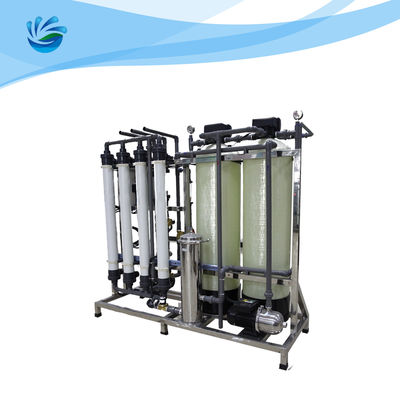

2TPH Ultrafiltration Water Treatment System UF Membrane Ultra Filtration Plant
Introduction of Ultrafiltration Water Treatment System
Ultrafiltration originated in 1748. Schmidt used a cotton glue membrane or a lubricating membrane to separate the solution. When a certain pressure was applied, the solution (water) passed through the membrane, while proteins, colloids and other substances were trapped, and the filtration accuracy was far more than Filter paper, so he proposed the term ultrafiltration. In 1896, Martin produced the first artificial ultrafiltration membrane. In the 1960s, the concept of molecular weight was proposed, which was the beginning of modern ultrafiltration.
What are the advantages of Ultrafiltration Water Treatment System?
1) Ultrafiltration (UF) system occupies a small area and is easy to operate
2) High automation of ultrafiltration system
3) Different molecular substances can be classified and processed
4) Ultrafiltration mineral water treatment is suitable for different water quality and has a wide range of applications
Technical specifications of Ultrafiltration Water Treatment System
|
UF System |
|
|
Model |
JFUF-2000L |
|
Host Size |
can be customized |
|
Operating Pressure |
0.1-0.3MPa |
|
Recovery Rate |
85% |
|
Rack Material |
SUS304/Carbon Steel (Optional) |
|
Pipe Material |
U-PVC/ Stainless steel (Optional) |
|
Ultra-filtration Membrane |
PVC/PAN/PVDF (Optional) |
|
Raw Water Pump |
CNP/NYP/GRUNDFOS (Optional) |
|
Tank Material |
SS/FRP(Optional) |
|
Outlet Flow |
2000L/h |
|
Power Supply |
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
Process flow of Ultrafiltration Water Treatment System
Raw water → original water tank (supplied by the buyer)→ raw water pump → disc filter → activated carbon filter →5μm security filter → ultrafiltration device → pure water tank (supplied by the buyer)→ water supply point
Application of Ultrafiltration Water Treatment System
1) the drinking water
2) Clarification and sterilization of mineral water
3) Water treatment for pharmaceuticals
4) Isolation and refinement of enzymes
5) Concentration and refinement of biological products
6) Concentration and separation of juice
7) Concentration and refinement of milking
8) Pretreatment of large water treatment equipment
9) Terminal treatment of ultra-pure water for electronic industry
10) Injection water treatment of ultra-low permeability Wells in oil fields
11) Treatment of industrial wastewater and recovery of available water
FAQ:
1. What are the types of ultrafiltration membranes?
Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane
2. What is the operation mode of ultrafiltration membrane?
Operation mode: internal pressure type, external pressure type
3. What is the shell material of the ultrafiltration membrane?
Shell material: ABS, PVC, PMMA, stainless steel
