| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFUF-40T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Certification: | ISO9001 | Rack Material: | SUS/Carbon Steel |
|---|---|---|---|
| Recovery Rate: | 85% | Warranty: | 1 Year |
| MOQ: | 1 Unit | Country Of Origin: | China |
| Capacity: | 40T Per Hour | Power Supply: | 220V/380V/460V-50Hz Can Be Customized |
| Pipe Material: | U-PVC/Stainless Steel (optional) | ||
| High Light: | 40TPH Ultrafiltration Water Treatment System,Carbon Steel Ultrafiltration Water Treatment System,380V Ultrafiltration Water Purifier |
||
Ultrafiltration System For Large Capacity Water Treatment Equipment 40TPH
UF is a pressure-driven membrane filtration technology used to treat various types of water and wastewater to remove suspended solids and solutes.
Membrane filtration has four filtration ranges. This enables the target particles to be removed and the target particles to remain in the liquid. Filtration ranges are microfiltration, ultrafiltration, nanofiltration and reverse osmosis. What makes the filtration range different is the selectivity of the membrane, also known as rejection. UF separates high molecular weight suspended solids and solutes in the 0.01 to 0.1 micron range. A micron is one millionth of a meter. Among other things, UF can be used to remove bacteria, viruses, colloids, proteins, pyrogens and pathogens. This technology is used in several industries to treat a variety of water and wastewater.
Technical specifications of Ultrafiltration Water Treatment System
|
UF System |
|
|
Model |
JFUF-40T |
|
Host Size |
can be customized |
|
Operating Pressure |
0.1-0.3MPa |
|
Recovery Rate |
85% |
|
Rack Material |
SUS304/Carbon Steel (Optional) |
|
Pipe Material |
U-PVC/ Stainless steel (Optional) |
|
Ultra-filtration Membrane |
PVC/PAN/PVDF (Optional) |
|
Raw Water Pump |
CNP/NYP/GRUNDFOS (Optional) |
|
Tank Material |
SS/FRP(Optional) |
|
Outlet Flow |
40t/h |
|
Power Supply |
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
Workflow of Ultrafiltration Water Treatment System
Raw liquid - storage tank - pressure pump - precision filter - hollow ultrafiltration equipment - storage tank - backwash tank - backwash pump.
How does the ultrafiltration process work?
Ultrafiltration is a simple pressure-driven filtration technology. This is an eco-friendly technology that does not add any chemicals during processing.
Ultrafiltration is a simple pressure-driven technology that filters water and wastewater without the use of chemicals. Chemicals are used for membrane cleaning only. Therefore, it is a safe and reliable solution for a more environmentally friendly filtration process.
Simply put, pressure drives the water purification process by forcing liquid through the surface of a semipermeable membrane. The feed stream enters the membrane and the feed pump generates pressure. This splits the feed stream into two new streams called permeate and retentate. Permeate is composed of water molecules and dissolved solutes that can pass through a semipermeable membrane barrier. At the same time, high molecular weight suspended solids and solutes are retained by the membrane barrier. Controlling the selectivity is the membrane pore size, ie the size of the particles that are retained.
These membranes can operate at low pressures, making them an energy-efficient, low-cost solution.

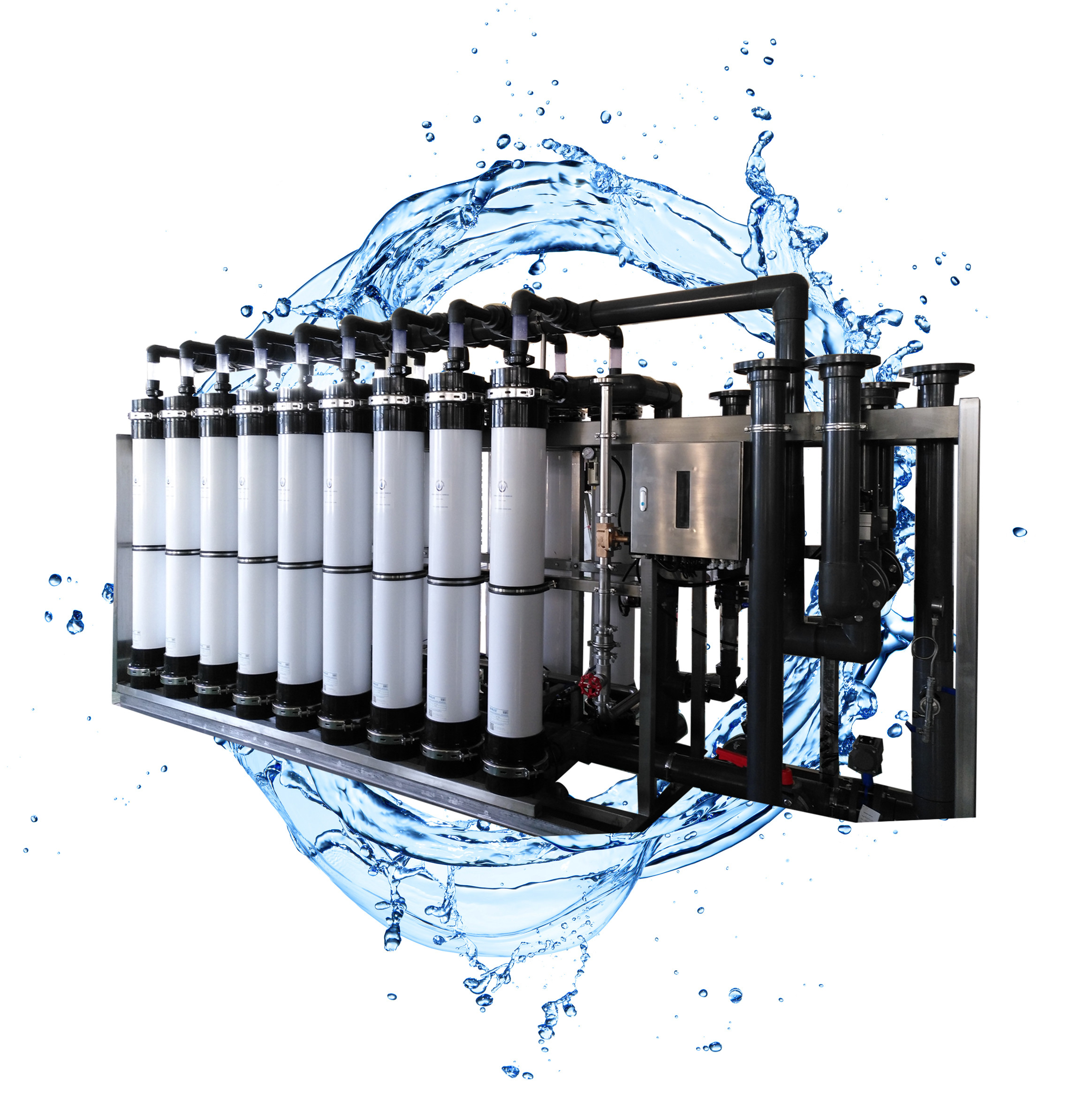

Photos of Ultrafiltration Water Treatment System
FAQ:
1. What is the material of ultrafiltration membrane?
Polyacrylonitrile (PAN), polyethersulfone (PES), polyvinyl chloride (PVC), polysulfone (PS), polyvinylidene fluoride (PVDF)
2. What are the types of ultrafiltration membranes?
Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane
3. What is the operation mode of ultrafiltration membrane?
Operation mode: internal pressure type, external pressure type
