| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFUF-40T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Certification: | ISO9001 | Rack Material: | SUS/Carbon Steel |
|---|---|---|---|
| Recovery Rate: | 85% | Warranty: | 1 Year |
| MOQ: | 1 Unit | Country Of Origin: | China |
| Capacity: | 40T Per Hour | Power Supply: | 220V/380V/460V-50Hz Can Be Customized |
| Pipe Material: | U-PVC/Stainless Steel (optional) | ||
| High Light: | 40TPH Ultrafiltration Water Treatment Equipment,UF Purification System Water Treatment Machine,220V Water Purification Equipment |
||

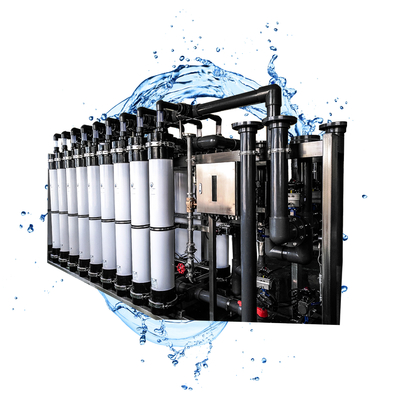

40TPH Ultrafiltration Water Treatment Equipment UF Purification System
Ultrafiltration technology is highly valued in environmental pollution control due to its simple operation, low energy consumption and high separation efficiency. It has been widely researched and applied in textile printing and dyeing, machinery, petrochemical, papermaking, food, medicine and other industries, as well as in the treatment and resource utilization of domestic sewage.
Technical specifications of Ultrafiltration Water Treatment System
|
UF System |
|
|
Model |
JFUF-40T |
|
Host Size |
can be customized |
|
Operating Pressure |
0.1-0.3MPa |
|
Recovery Rate |
85% |
|
Rack Material |
SUS304/Carbon Steel (Optional) |
|
Pipe Material |
U-PVC/ Stainless steel (Optional) |
|
Ultra-filtration Membrane |
PVC/PAN/PVDF (Optional) |
|
Raw Water Pump |
CNP/NYP/GRUNDFOS (Optional) |
|
Tank Material |
SS/FRP(Optional) |
|
Outlet Flow |
40t/h |
|
Power Supply |
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
Workflow of Ultrafiltration Water Treatment System
Raw liquid - storage tank - pressure pump - precision filter - hollow ultrafiltration equipment - storage tank - backwash tank - backwash pump.
The principle of ultrafiltration is not complicated. During the ultrafiltration process, as the retained impurities accumulate continuously on the membrane surface, a phenomenon of concentration polarization will occur. When the solute concentration on the membrane surface reaches a certain limit, a gel layer will be formed, resulting in a sharp decrease in the water permeability of the membrane. This makes the application of ultrafiltration limited to a certain extent. For this reason, it is necessary to conduct research through experiments to determine the optimal process and operating conditions, to minimize the influence of concentration polarization, and to make ultrafiltration a reliable reverse osmosis pretreatment method.
Ultrafiltration is a membrane separation technology (UItrafil-tration referred to as UF). Solutions can be purified, separated or concentrated. Ultrafiltration is between microfiltration and nanofiltration, and there is no obvious dividing line between the three. In general, the pore size of ultrafiltration membranes is between 1–20 nm and the operating pressure is 0.1–0.5 Mpa. It is mainly used to intercept and remove macromolecular substances such as suspended solids, colloids, particles, bacteria and viruses in water. Ultrafiltration membranes can be divided into organic membranes and inorganic membranes according to membrane materials. According to the appearance of the membrane, it can be divided into: flat type, tubular type, capillary type, hollow fiber and porous type. At present, domestic ultrafiltration water purifiers are mostly hollow membranes.

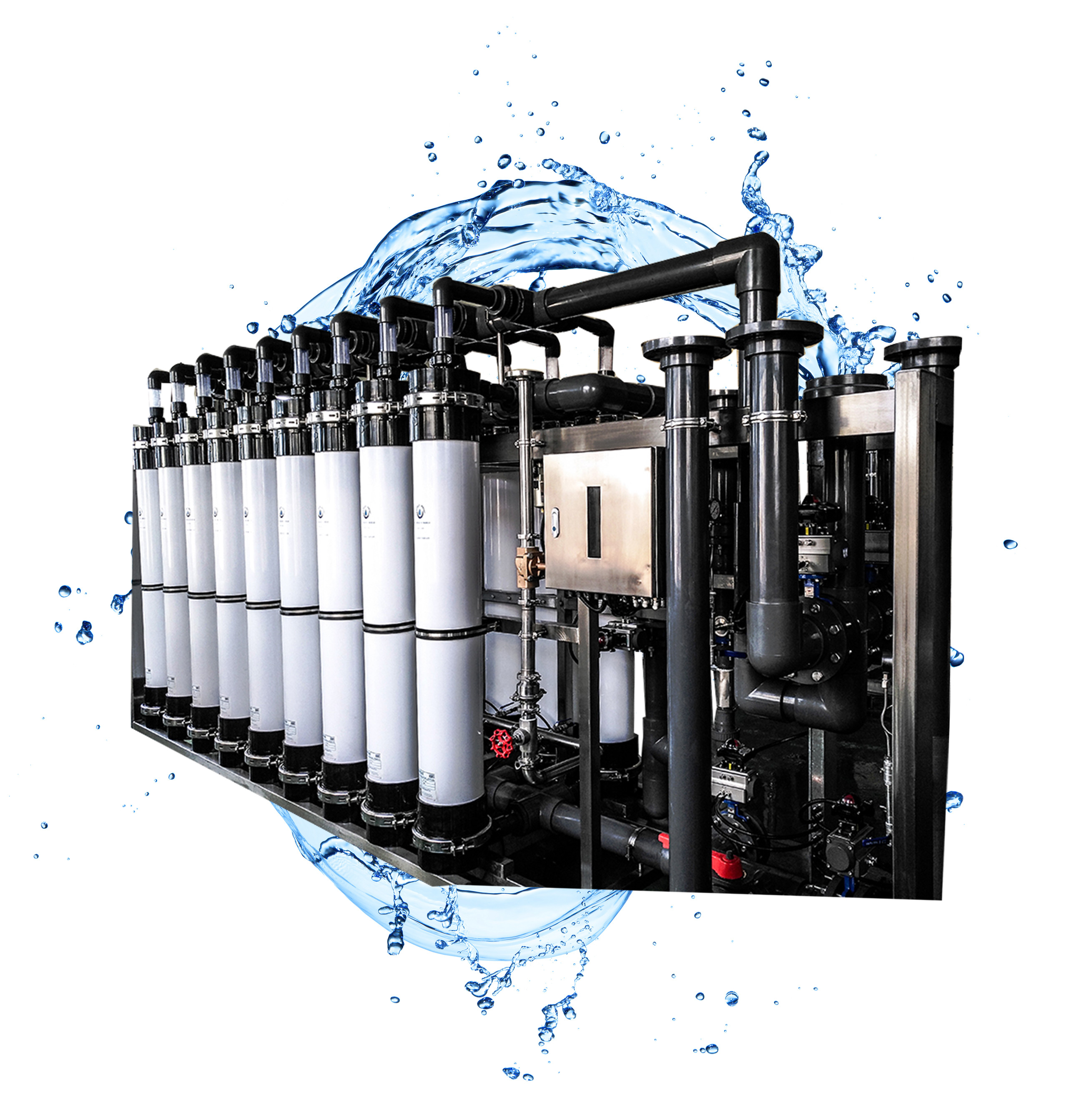

Photos of Ultrafiltration Water Treatment System
FAQ:
1. What is the material of ultrafiltration membrane?
Polyacrylonitrile (PAN), polyethersulfone (PES), polyvinyl chloride (PVC), polysulfone (PS), polyvinylidene fluoride (PVDF)
2. What are the types of ultrafiltration membranes?
Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane
3. What is the operation mode of ultrafiltration membrane?
Operation mode: internal pressure type, external pressure type
