| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001/CE |
| Model Number: | JFUF-4T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Warranty: | 12 Months Warranty And Lifetime Service | Capacity: | 4000L/H |
|---|---|---|---|
| Host Size: | Can Be Customized | UF Membrane: | PVC/PAN/PVDF(optional) |
| Pipe Material: | U-PVC/Stainless Steel (optional) | Recovery Rate: | 85% |
| Type: | Ultra-filtration | Function: | Water Purification Machine |
| High Light: | 4TPH Ultrafiltration Water Treatment Plant,Ultrafiltration Water Treatment System Plant,UPVC Ultra Filtration Plant |
||

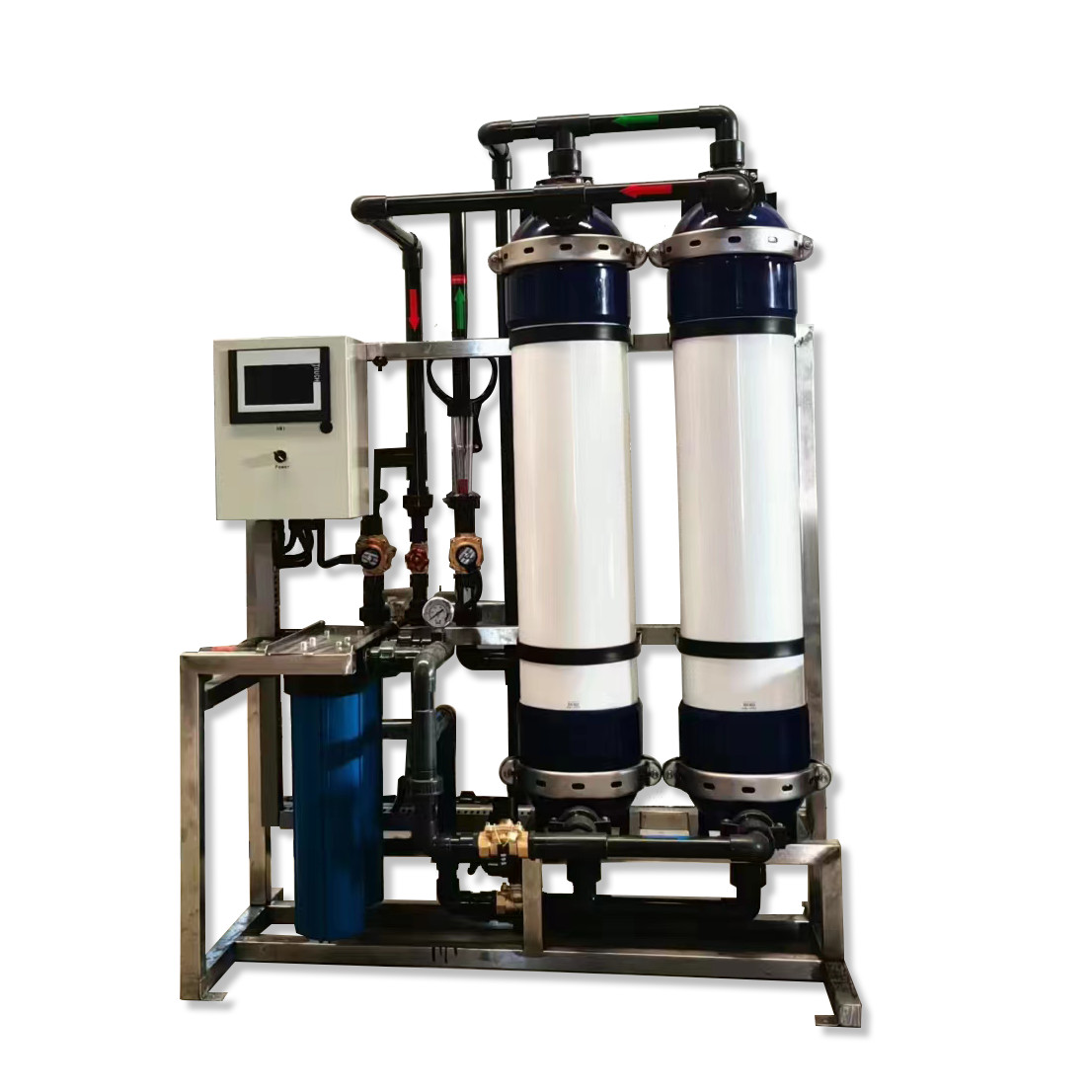

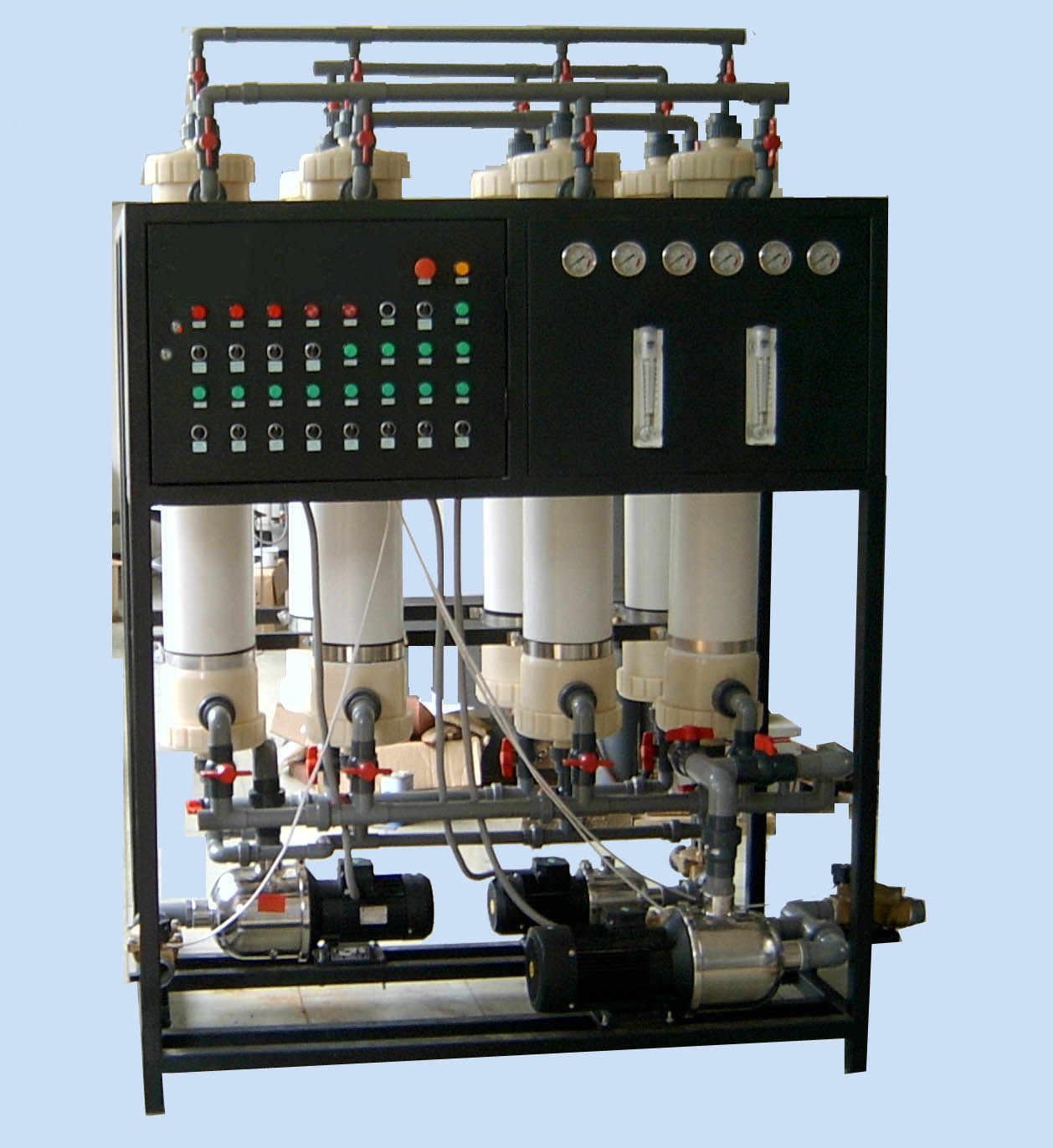

4TPH TPH Ultrafiltration Water Treatment Plant Ultra Filtration Plant
Ultrafiltration is one of membrane separation techniques driven by pressure. For the purpose of separating large and small molecules, the pore size of the membrane is between 20-1000A°. Hollow fiber ultrafilter (membrane) has the advantages of high filling density per unit container and small footprint.
Ultrafiltration is a pressurized membrane separation technology, that is, under a certain pressure, the small molecules of solute and solvent through a specific aperture of the membrane, while the large molecules of solute can not penetrate, left on one side of the membrane, so that the macromolecular material has been partially purified. Ultrafiltration is one of membrane separation techniques driven by pressure. For the purpose of separating large and small molecules
Technical specifications of Ultrafiltration Water Treatment System
|
UF System |
|
|
Model |
JFUF-4000L |
|
Host Size |
can be customized |
|
Operating Pressure |
0.1-0.3MPa |
|
Recovery Rate |
85% |
|
Rack Material |
SUS304/Carbon Steel (Optional) |
|
Pipe Material |
U-PVC/ Stainless steel (Optional) |
|
Ultra-filtration Membrane |
PVC/PAN/PVDF (Optional) |
|
Raw Water Pump |
CNP/NYP/GRUNDFOS (Optional) |
|
Tank Material |
SS/FRP(Optional) |
|
Outlet Flow |
4000L/h |
|
Power Supply |
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
Process flow of Ultrafiltration Water Treatment System
Raw water → original water tank (supplied by the buyer)→ raw water pump → disc filter → activated carbon filter →5μm security filter → ultrafiltration device → pure water tank (supplied by the buyer)→ water supply point
Application of Ultrafiltration Water Treatment System
1) the drinking water
2) Clarification and sterilization of mineral water
3) Water treatment for pharmaceuticals
4) Isolation and refinement of enzymes
5) Concentration and refinement of biological products
6) Concentration and separation of juice
7) Concentration and refinement of milking
8) Pretreatment of large water treatment equipment
9) Terminal treatment of ultra-pure water for electronic industry
10) Injection water treatment of ultra-low permeability Wells in oil fields
11) Treatment of industrial wastewater and recovery of available water
FAQ:
1. What are the types of ultrafiltration membranes?
Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane
2. What is the operation mode of ultrafiltration membrane?
Operation mode: internal pressure type, external pressure type
3. What is the shell material of the ultrafiltration membrane?
Shell material: ABS, PVC, PMMA, stainless steel
