| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFUF-4T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Membran Material: | PVC/PAN/PVDF(optional) | Certification: | ISO9001 |
|---|---|---|---|
| Host Size: | Can Be Customized | Recovery Rate: | 85% |
| Warranty: | 1 Year | Rack Material: | SUS/Carbon Steel |
| Pipe Material: | U-PVC/Stainless Steel (optional) | Capacity: | 4T Per Hour |
| High Light: | PVDF Membrane UF Water Filter System,Ultrafiltration Water Purification System Plant,SUS Ultrafiltration Water Treatment System |
||
Ultrafiltration Water Purification System UF Water Treatment UF PVC PVDF Membrane
What is Ultrafiltration Water Treatment System?
Ultrafiltration technology is a relatively mature technology in water purification equipment. It is widely used in water treatment equipment. Ultrafiltration technology is a membrane separation process. pass
External pressure for water filtration. Some colloids and substances with relatively high molecular weight contained in water will be filtered out and separated, so as to obtain the purification effect of water.
When the water passes through the ultrafiltration membrane, most of the colloidal silicon contained in the water can be removed, and a large amount of organic matter can be removed at the same time.
What is the principle of Ultrafiltration Water Treatment System?
In the process of ultrafiltration, aqueous solution under pressure, flow through the membrane surface, less than the membrane hole of the solvent (water) and small molecules of solute permeable membrane, become purification liquid (filtration liquid), than the membrane hole and solute group are trapped, with water discharge, become concentrated liquid.
Technical Specifications of Ultrafiltration Water Treatment System
|
UF System |
|
|
Model |
JFUF-4T |
|
Host Size |
can be customized |
|
Operating Pressure |
0.1-0.3MPa |
|
Recovery Rate |
85% |
|
Rack Material |
SUS304/Carbon Steel (Optional) |
|
Pipe Material |
U-PVC/ Stainless steel (Optional) |
|
Ultra-filtration Membrane |
PVC/PAN/PVDF (Optional) |
|
Raw Water Pump |
CNP/NYP/GRUNDFOS (Optional) |
|
Tank Material |
SS/FRP(Optional) |
|
Outlet Flow |
4t/h |
|
Power Supply |
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
Process flow of Ultrafiltration Water Treatment System
Raw water + original water tank + original water pump + sand filter + carbon filter + security filter + UF system + pure water tank + UV sterilizer (ozone generation)+ precision filter + water supply point
The application of ultrafiltration system in pharmaceutical and biological chemical production, often need to separate and purify the heat-sensitive substances, ultrafiltration technology shows its outstanding advantages. Using ultrafiltration to separate and concentrate biological active substances (such as enzymes, viruses, nucleic acids, special proteins, etc.) is quite suitable for drugs (such as alkaloids, hormones, etc.) extracted from plants and driven by the extraction of macromolecules or solid substances, in many cases can be separated by ultrafiltration, so as to improve the quality of products.
Characteristics of Ultrafiltration Water Treatment System
(1) Ultra-high interception rate :99.9999%
(2) Maximum inlet pressure: 0.2mpa
(3) MWCO:6000 Dalton, 10000 Dalton, 100000 Dalton, 200,000 Dalton
(4) Application: removal of pyrogens and endotoxins in pharmaceutical industry

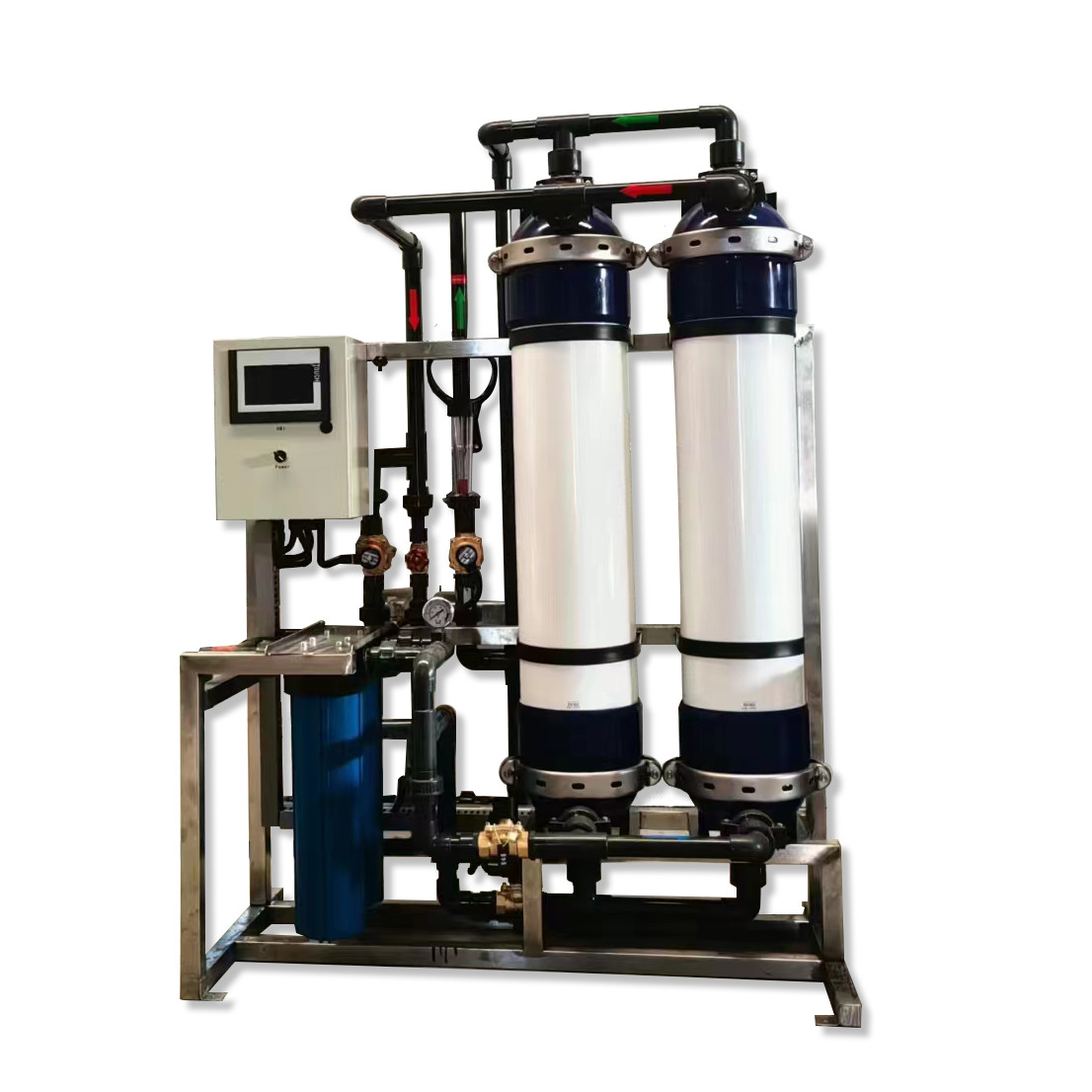

Photos display of Ultrafiltration Water Treatment System
FAQ:
1. What are the types of ultrafiltration membranes?
Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane
2. What is the operation mode of ultrafiltration membrane?
Operation mode: internal pressure type, external pressure type
3. What is the shell material of the ultrafiltration membrane?
Shell material: ABS, PVC, PMMA, stainless steel
