| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFUF-6T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacity: | 6T Per Hour | Membran Material: | PVC/PAN/PVDF(optional) |
|---|---|---|---|
| Host Size: | Can Be Customized | Certification: | ISO9001 |
| Warranty: | 1 Year | Pipe Material: | U-PVC/Stainless Steel (optional) |
| High Light: | Industrial Water Treatment Ultrafiltration Equipment,River Ultrafiltration Water Treatment System,380V Uf System Water Treatment Machine |
||
Industrial Water Treatment Of Uf System Equipment For River
What is Ultrafiltration Water Treatment System?
Ultrafiltration (UF) is a variety of membrane filtration in which forces like pressure or concentration gradients lead to a separation through a semipermeable membrane. Suspended solids andsolutes of high molecular weight are retained in the so-called retentate, while water and low molecular weight solutes pass through the membrane in the permeate. This separation process is used in industry and research for purifying and concentrating macromolecular (103 - 106 Da) solutions, especially protein solutions.
What is the principle of Ultrafiltration Water Treatment System?
In the process of ultrafiltration, aqueous solution under pressure, flow through the membrane surface, less than the membrane hole of the solvent (water) and small molecules of solute permeable membrane, become purification liquid (filtration liquid), than the membrane hole and solute group are trapped, with water discharge, become concentrated liquid.
Technical Specifications of Ultrafiltration Water Treatment System
|
UF System |
|
|
Model |
JFUF-6T |
|
Host Size |
can be customized |
|
Rack Material |
SUS304/Carbon Steel (Optional) |
|
Pipe Material |
U-PVC/ Stainless steel (Optional) |
|
Ultra-filtration Membrane |
PVC/PAN/PVDF (Optional) |
|
Raw Water Pump |
CNP/NYP/GRUNDFOS (Optional) |
|
Tank Material |
SS/FRP(Optional) |
|
Outlet Flow |
6t/h |
|
Power Supply |
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
Process flow of Ultrafiltration Water Treatment System
Raw water + original water tank + original water pump + sand filter + carbon filter + security filter + UF system + pure water tank + UV sterilizer (ozone generation)+ precision filter + water supply point
The application of ultrafiltration system in pharmaceutical and biological chemical production, often need to separate and purify the heat-sensitive substances, ultrafiltration technology shows its outstanding advantages. Using ultrafiltration to separate and concentrate biological active substances (such as enzymes, viruses, nucleic acids, special proteins, etc.) is quite suitable for drugs (such as alkaloids, hormones, etc.) extracted from plants and driven by the extraction of macromolecules or solid substances, in many cases can be separated by ultrafiltration, so as to improve the quality of products.
Characteristics of Ultrafiltration Water Treatment System
(1) Ultra-high interception rate :99.9999%
(2) Maximum inlet pressure: 0.2mpa
(3) MWCO:6000 Dalton, 10000 Dalton, 100000 Dalton, 200,000 Dalton
(4) Application: removal of pyrogens and endotoxins in pharmaceutical industry

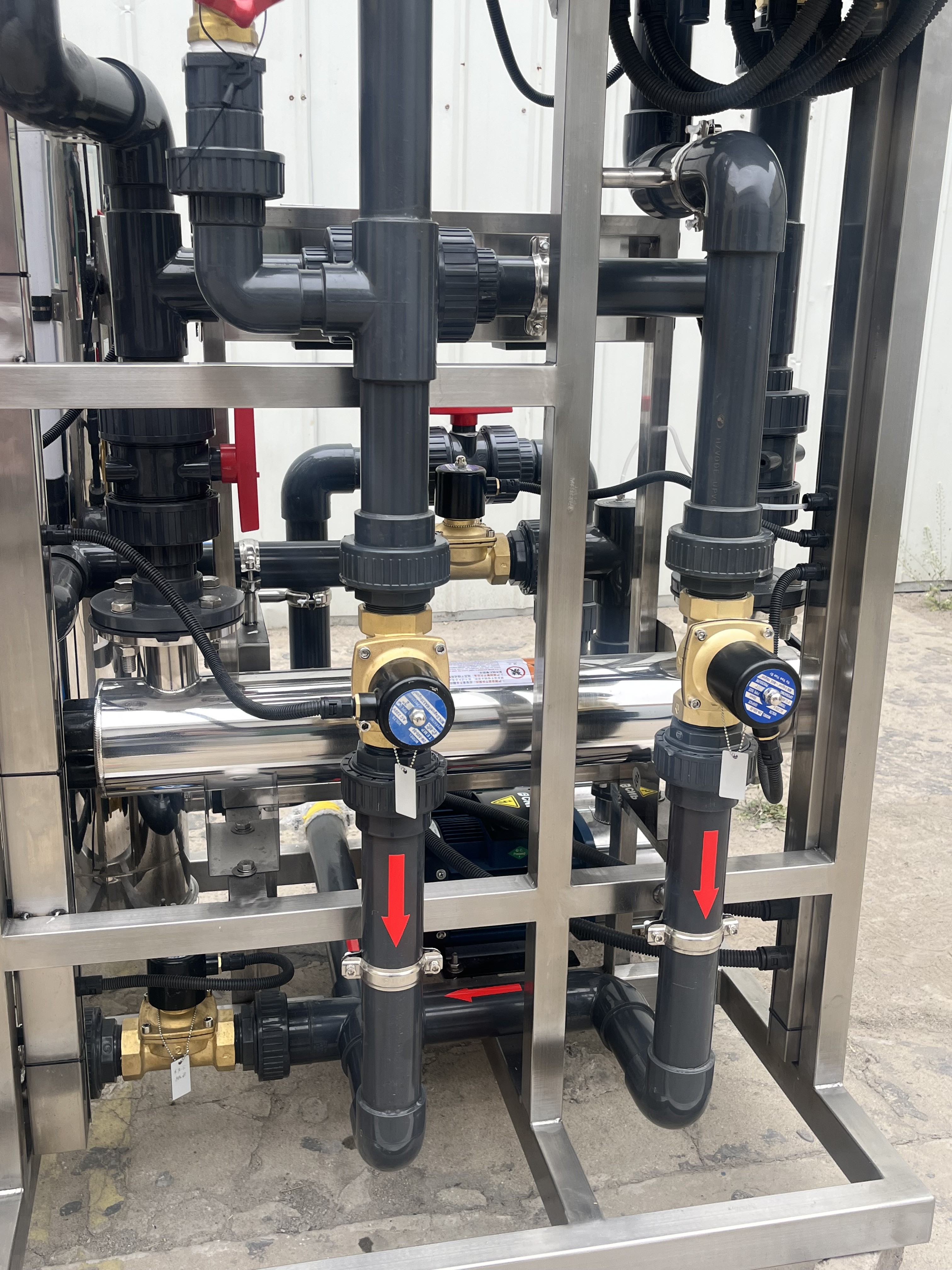

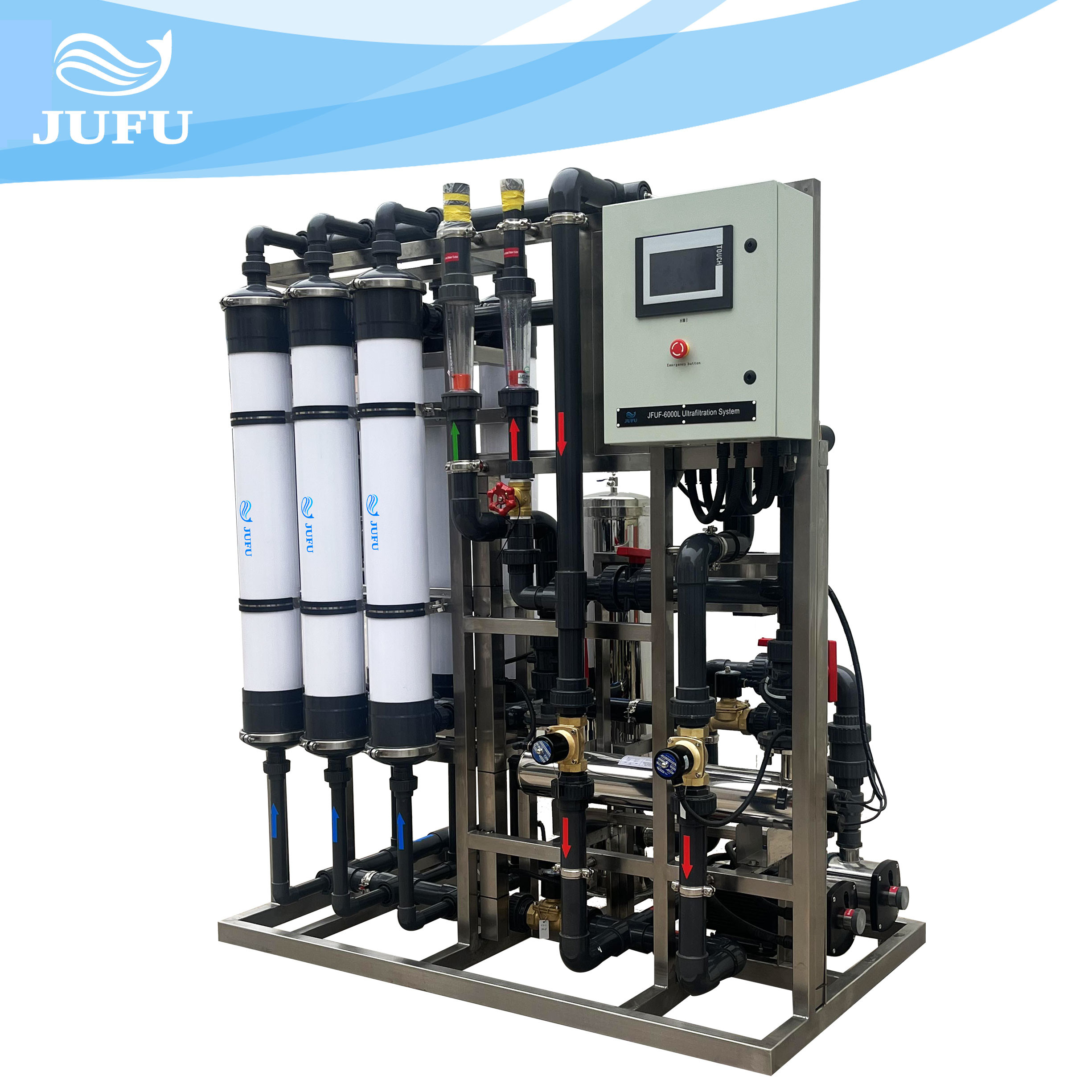

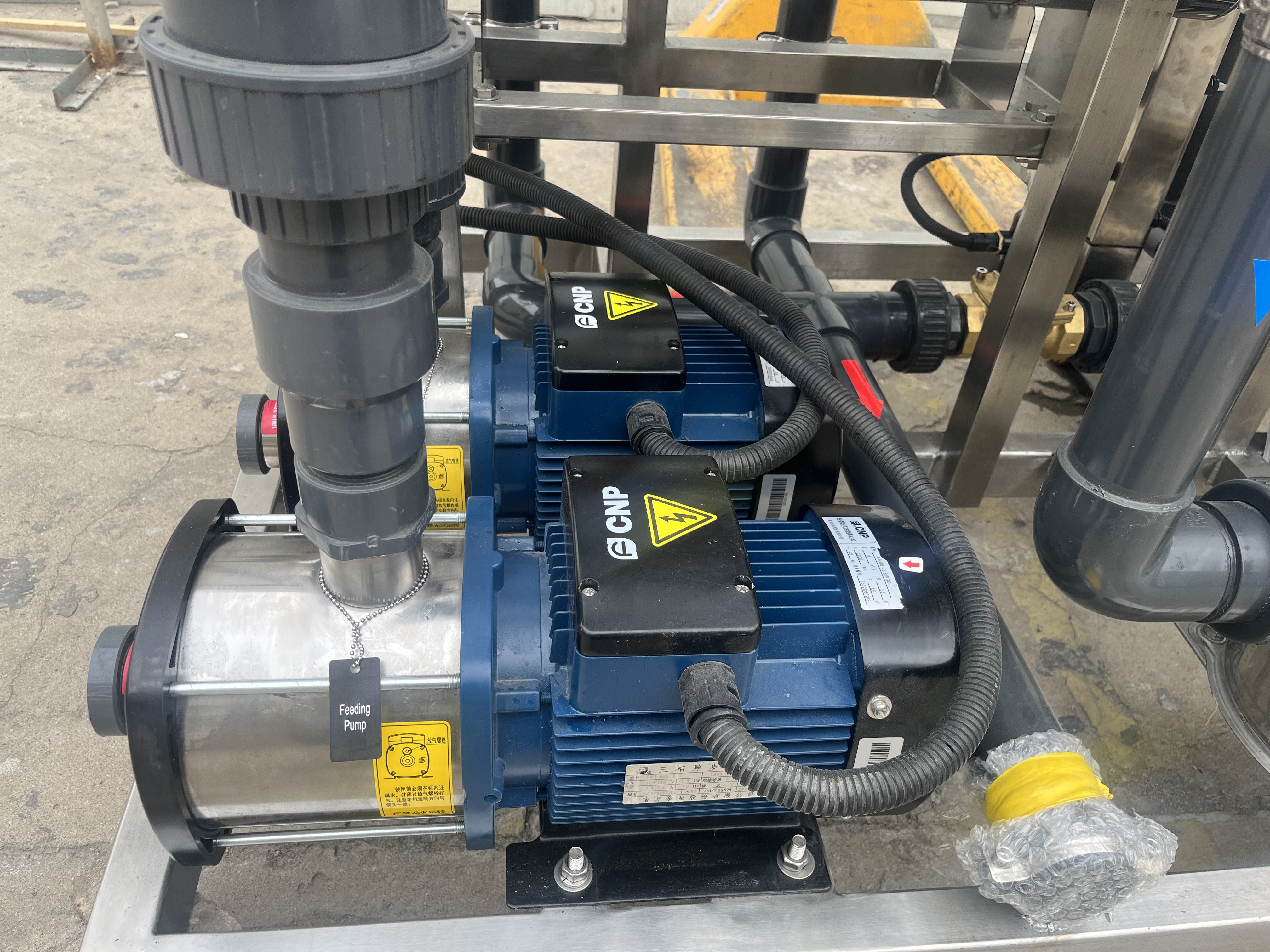

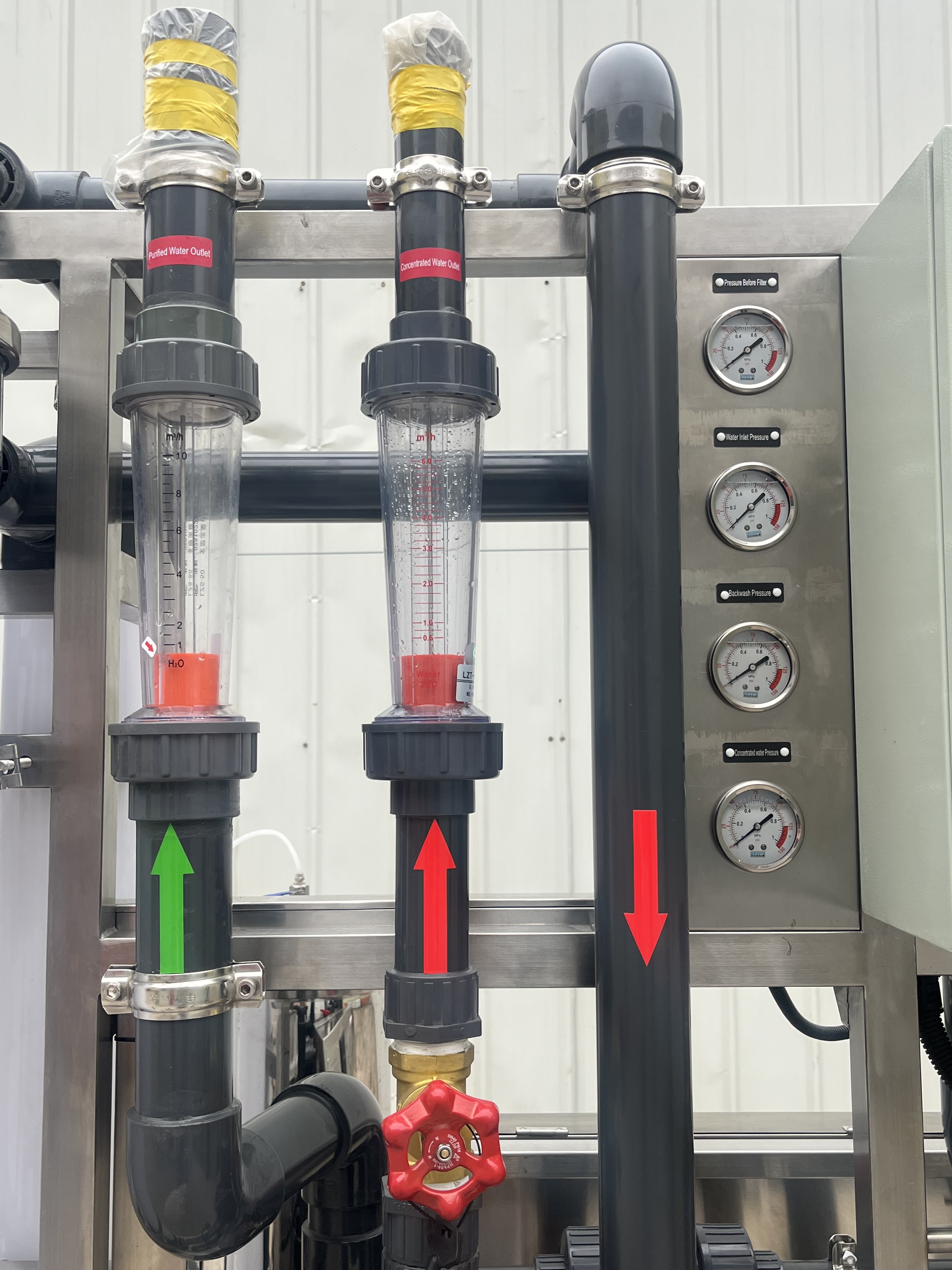

Photos display of Ultrafiltration Water Treatment System
FAQ:
1. What are the types of ultrafiltration membranes?
Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane
2. What is the operation mode of ultrafiltration membrane?
Operation mode: internal pressure type, external pressure type
3. What is the shell material of the ultrafiltration membrane?
Shell material: ABS, PVC, PMMA, stainless steel
