| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFUF-6T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacity: | 6T Per Hour | Membran Material: | PVC/PAN/PVDF(optional) |
|---|---|---|---|
| Host Size: | Can Be Customized | Certification: | ISO9001 |
| Warranty: | 1 Year | Pipe Material: | U-PVC/Stainless Steel (optional) |
| High Light: | UF Reverse Osmosis System,Water Treatment Plant Uf Filter System,Reverse Osmosis Ultrafiltration Machine |
||
Uf Ultra Filtration Reverse Osmosis System Water Treatment Plant Uf Filter System
What is Ultrafiltration Water Treatment System?
Ultrafiltration (UF) is a type of membrane filtration in which hydrostatic pressure forces a liquid against a semipermeable membrane. Suspended solids and solutes of high molecular weight are retained, while water and low molecular weight solutes pass through the membrane. A semipermeable membrane is a thin layer of material capable of separating substances when a driving force is applied across the membrane.
What is the principle of Ultrafiltration Water Treatment System?
In the process of ultrafiltration, aqueous solution under pressure, flow through the membrane surface, less than the membrane hole of the solvent (water) and small molecules of solute permeable membrane, become purification liquid (filtration liquid), than the membrane hole and solute group are trapped, with water discharge, become concentrated liquid.
Technical Specifications of Ultrafiltration Water Treatment System
|
UF System |
|
|
Model |
JFUF-6T |
|
Host Size |
can be customized |
|
Rack Material |
SUS304/Carbon Steel (Optional) |
|
Pipe Material |
U-PVC/ Stainless steel (Optional) |
|
Ultra-filtration Membrane |
PVC/PAN/PVDF (Optional) |
|
Raw Water Pump |
CNP/NYP/GRUNDFOS (Optional) |
|
Tank Material |
SS/FRP(Optional) |
|
Outlet Flow |
6t/h |
|
Power Supply |
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
Process flow of Ultrafiltration Water Treatment System
Raw water + original water tank + original water pump + sand filter + carbon filter + security filter + UF system + pure water tank + UV sterilizer (ozone generation)+ precision filter + water supply point
Ultrafiltration is a physical process that removes particles and dissolved substances from a liquid. This is done by forcing the fluid through an ultra-fine membrane. The membrane pores are so small that only water molecules can pass through them. In addition, the membrane blocks larger molecules such as proteins or polysaccharides, which are then removed from the liquid.Ultrafiltration is often used in the food industry to remove unwanted substances from liquids and solids like fruits, vegetables,milk, or cheese.
Characteristics of Ultrafiltration Water Treatment System
(1) Ultra-high interception rate :99.9999%
(2) Maximum inlet pressure: 0.2mpa
(3) MWCO:6000 Dalton, 10000 Dalton, 100000 Dalton, 200,000 Dalton
(4) Application: removal of pyrogens and endotoxins in pharmaceutical industry

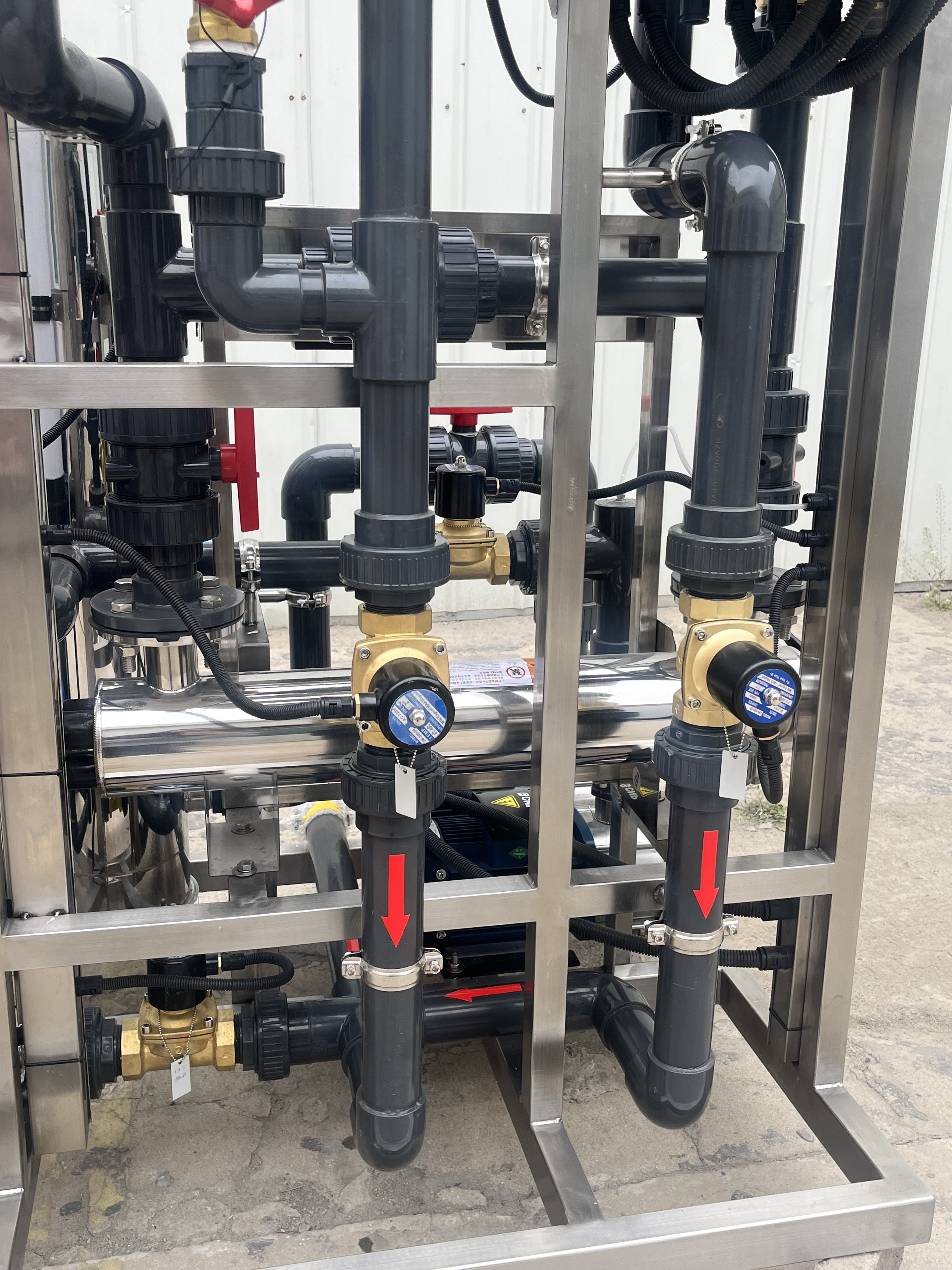

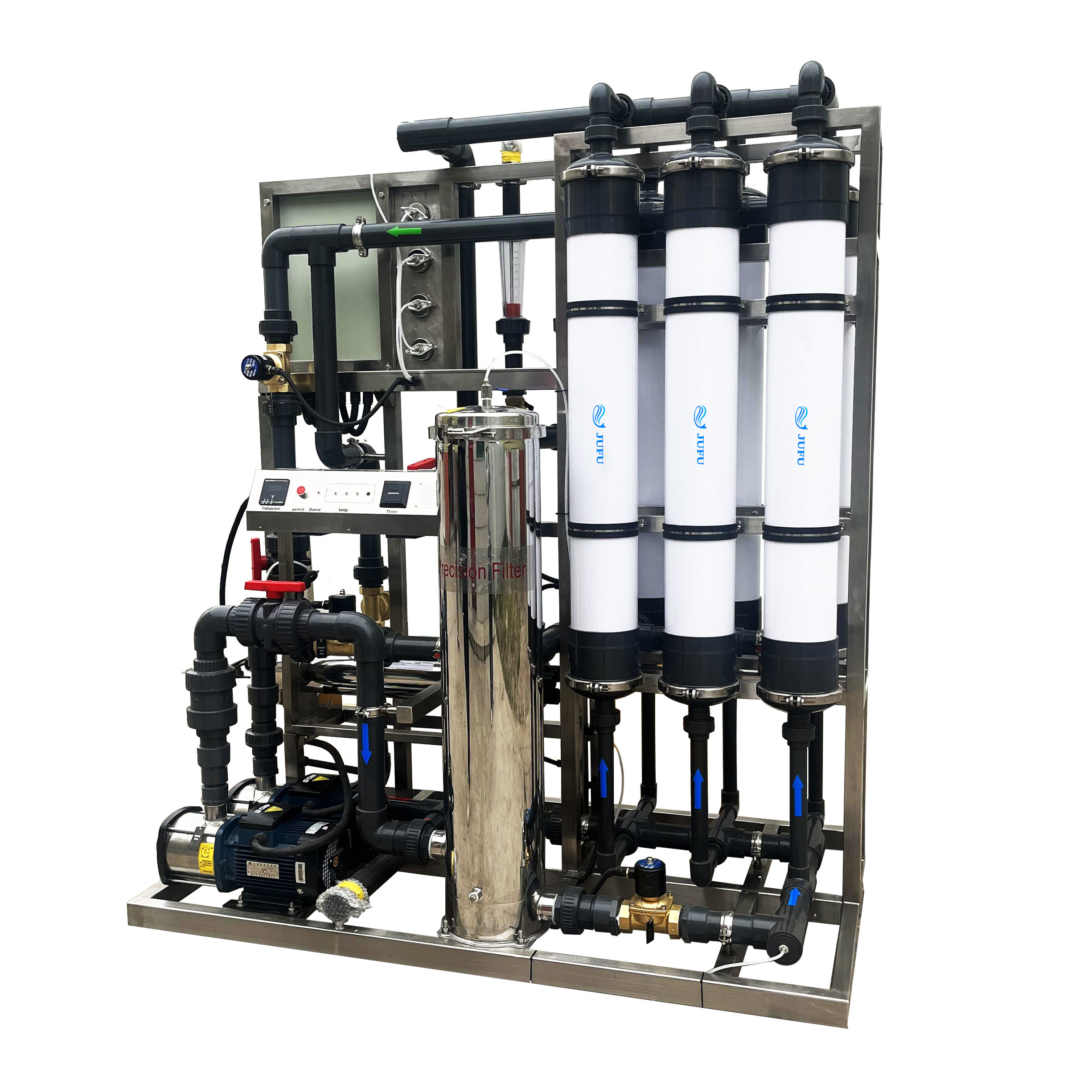

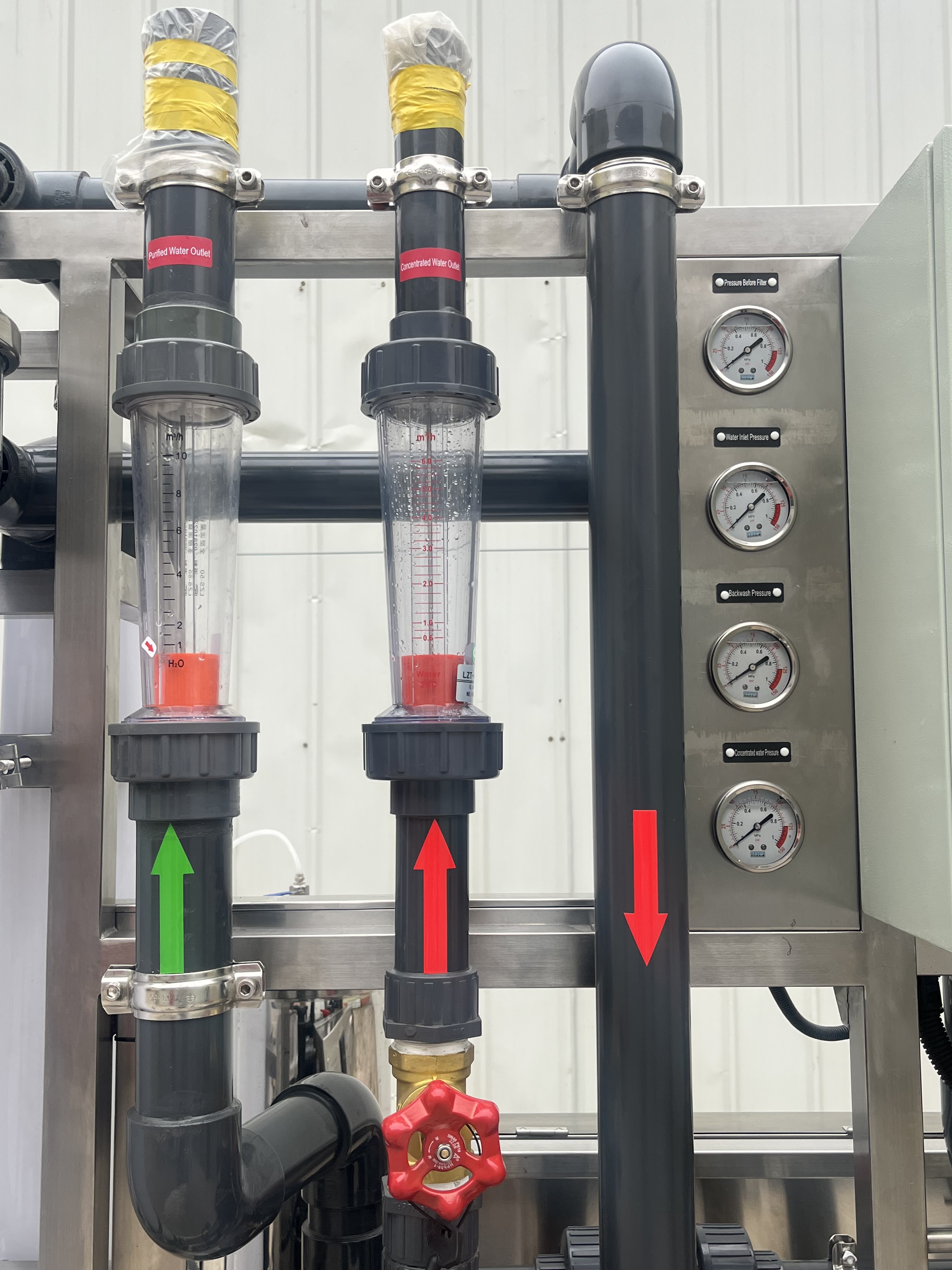

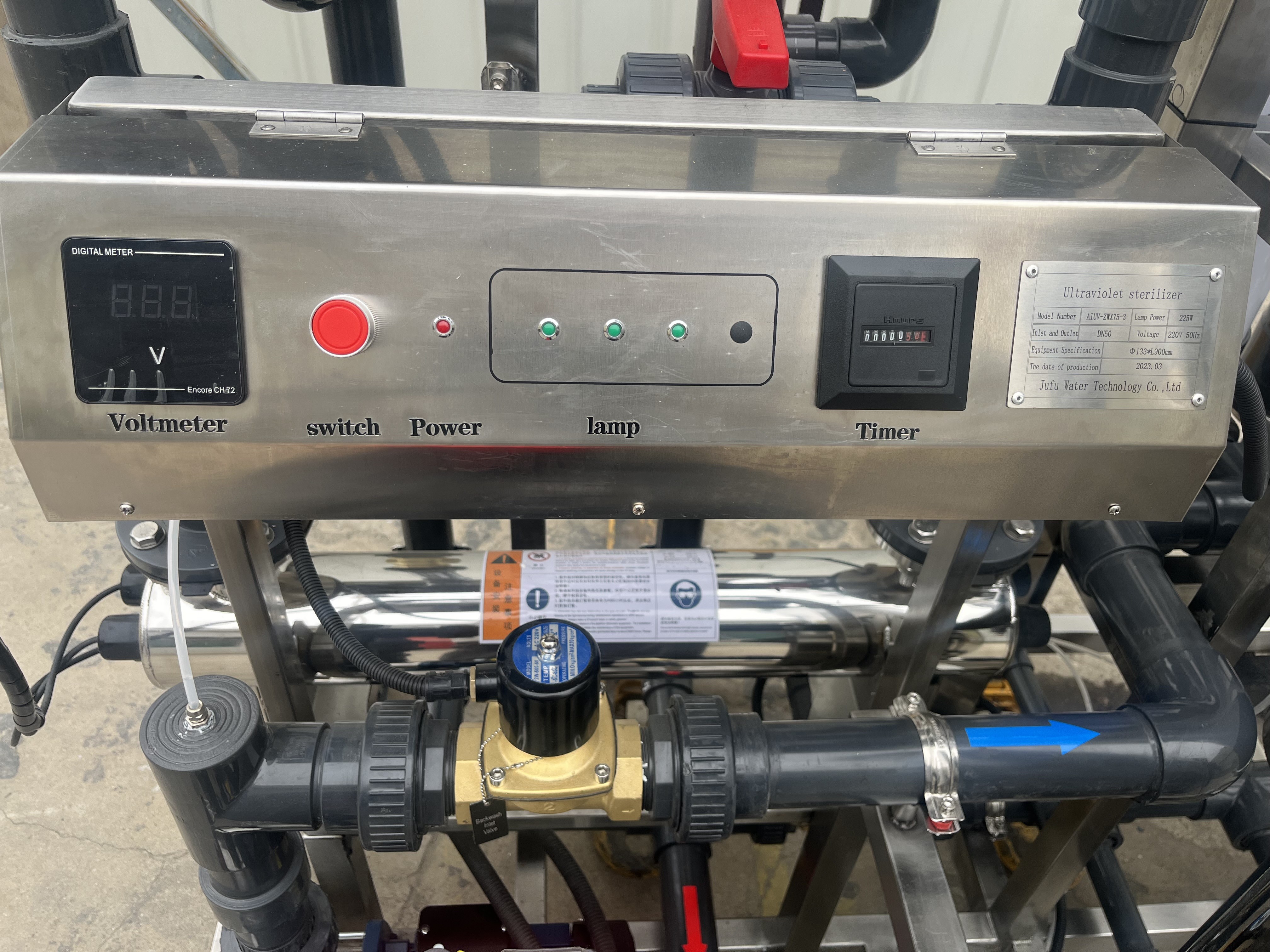

Photos display of Ultrafiltration Water Treatment System
FAQ:
1. What are the types of ultrafiltration membranes?
Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane
2. What is the operation mode of ultrafiltration membrane?
Operation mode: internal pressure type, external pressure type
3. What is the shell material of the ultrafiltration membrane?
Shell material: ABS, PVC, PMMA, stainless steel
