| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Model Number: | JFUF-6T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Certification: | ISO9001 | Capacity: | 6T Per Hour |
|---|---|---|---|
| Membran Material: | PVC/PAN/PVDF(optional) | Host Size: | Can Be Customized |
| Warranty: | 1 Year | Pipe Material: | U-PVC/Stainless Steel (optional) |
| High Light: | Desalinated Water Uf Membrane System,SUS304 Uf Membrane System,220V UF Water Treatment Machine |
||
Uf Water Treatment Plant Desalinated Water Uf Membrane System
What is Ultrafiltration Water Treatment System?
Ultrafiltration (UF) is a type of membrane filtration in which hydrostatic pressure forces a liquid against a semipermeable membrane. Suspended solids and solutes of high molecular weight are retained, while water and low molecular weight solutes pass through the membrane. A semipermeable membrane is a thin layer of material capable of separating substances when a driving force is applied across the membrane.
What is the principle of Ultrafiltration Water Treatment System?
In the process of ultrafiltration, aqueous solution under pressure, flow through the membrane surface, less than the membrane hole of the solvent (water) and small molecules of solute permeable membrane, become purification liquid (filtration liquid), than the membrane hole and solute group are trapped, with water discharge, become concentrated liquid.
Technical Specifications of Ultrafiltration Water Treatment System
|
UF System |
|
|
Model |
JFUF-6T |
|
Host Size |
can be customized |
|
Rack Material |
SUS304/Carbon Steel (Optional) |
|
Pipe Material |
U-PVC/ Stainless steel (Optional) |
|
Ultra-filtration Membrane |
PVC/PAN/PVDF (Optional) |
|
Raw Water Pump |
CNP/NYP/GRUNDFOS (Optional) |
|
Tank Material |
SS/FRP(Optional) |
|
Outlet Flow |
6t/h |
|
Power Supply |
220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
Process flow of Ultrafiltration Water Treatment System
Raw water + original water tank + original water pump + sand filter + carbon filter + security filter + UF system + pure water tank + UV sterilizer (ozone generation)+ precision filter + water supply point
The products are widely used in rural areas, living quarters, factories and mining enterprises, food, medicine, textile, coating, brewing, wine, agriculture, chemical industry, beverage, domestic water, electronics, electric power and other industries. For example: preparation of space water, purified water and distilled water; Liquor blending; Preliminary preparation of water for medicine, electronics and other industries; Concentration, separation, purification and water distribution preparation of chemical process; Desalting of boiler make-up water; Desalination of brackish water; Water for paper making, electroplating, printing and dyeing and other industries. And can provide solutions for the construction of purified water production equipment factory according to customer needs.
Characteristics of Ultrafiltration Water Treatment System
(1) Ultra-high interception rate :99.9999%
(2) Maximum inlet pressure: 0.2mpa
(3) MWCO:6000 Dalton, 10000 Dalton, 100000 Dalton, 200,000 Dalton
(4) Application: removal of pyrogens and endotoxins in pharmaceutical industry

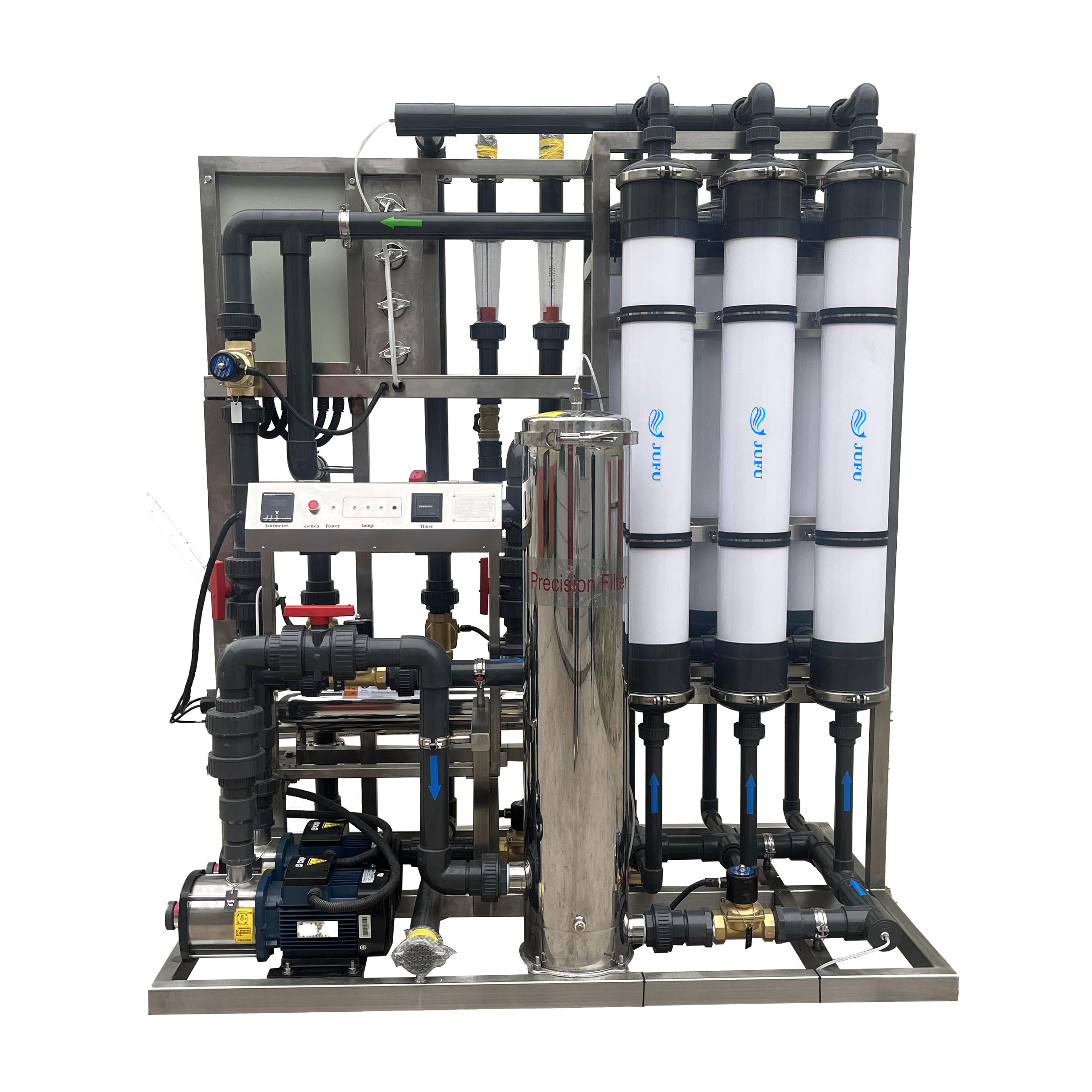

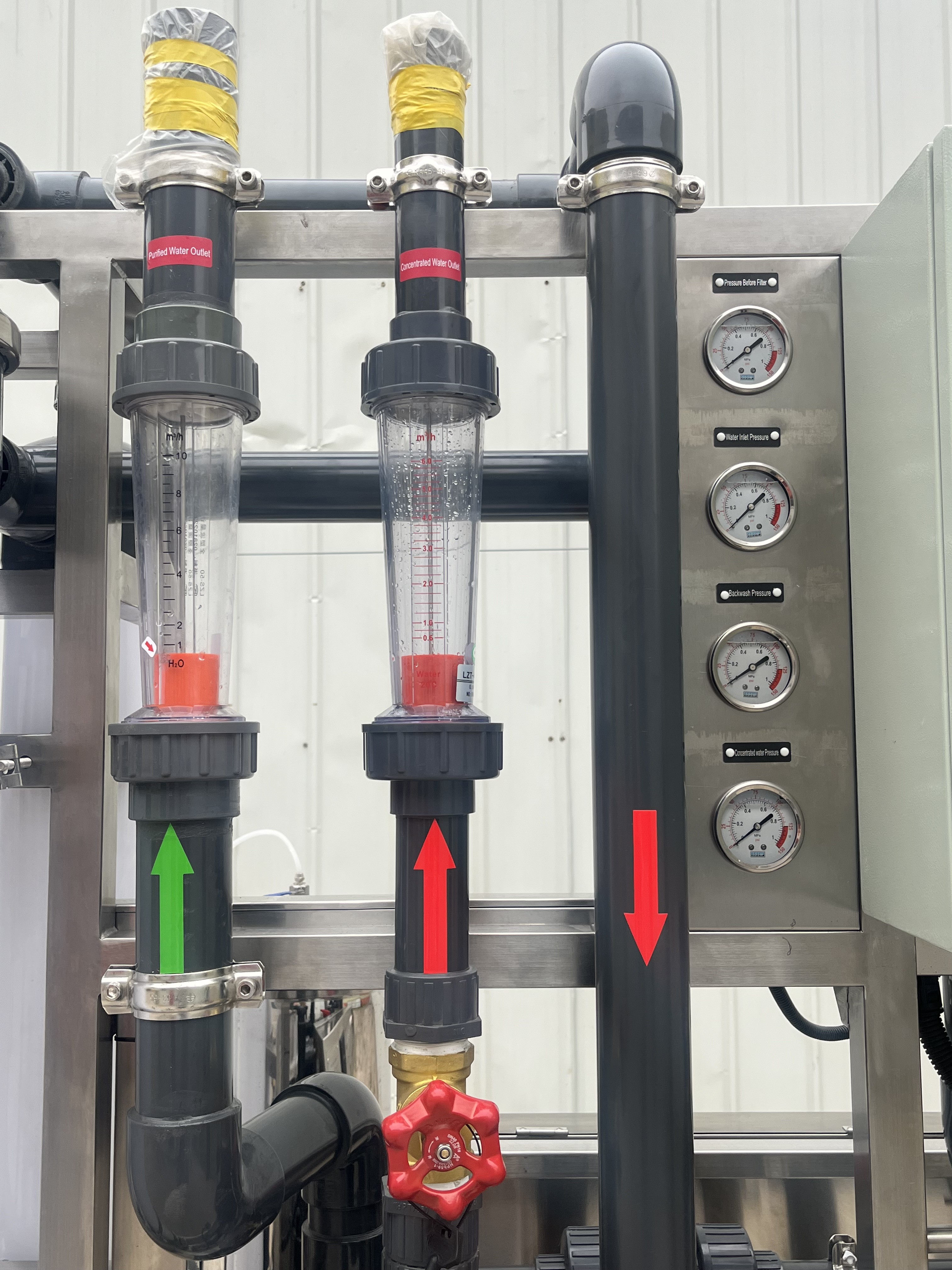

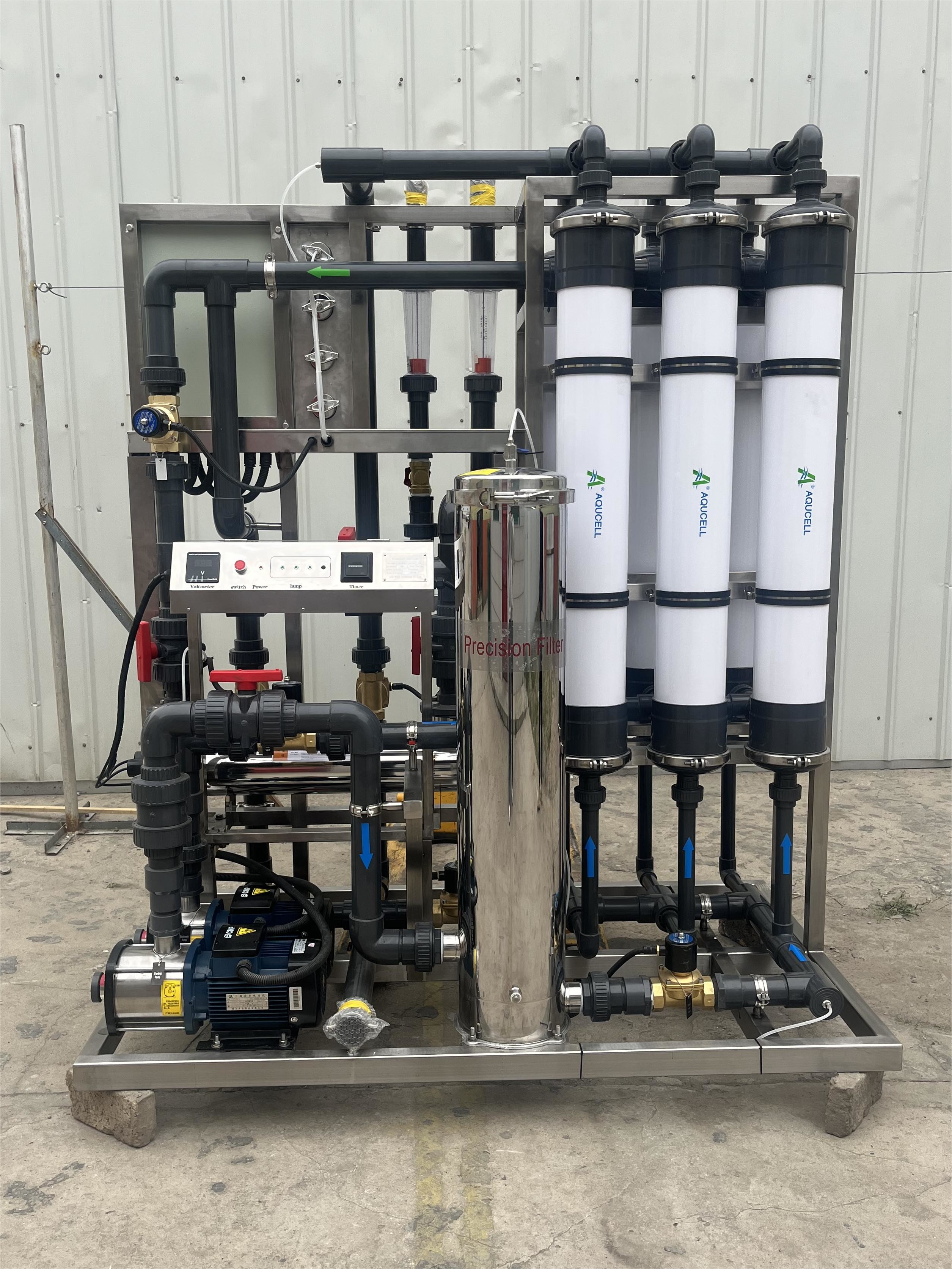

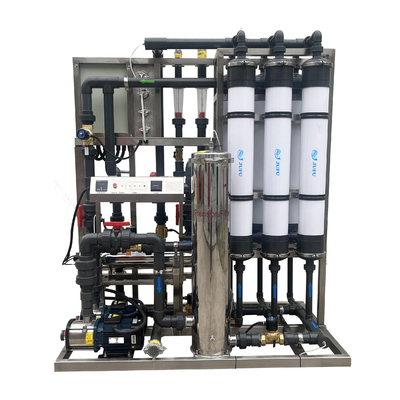

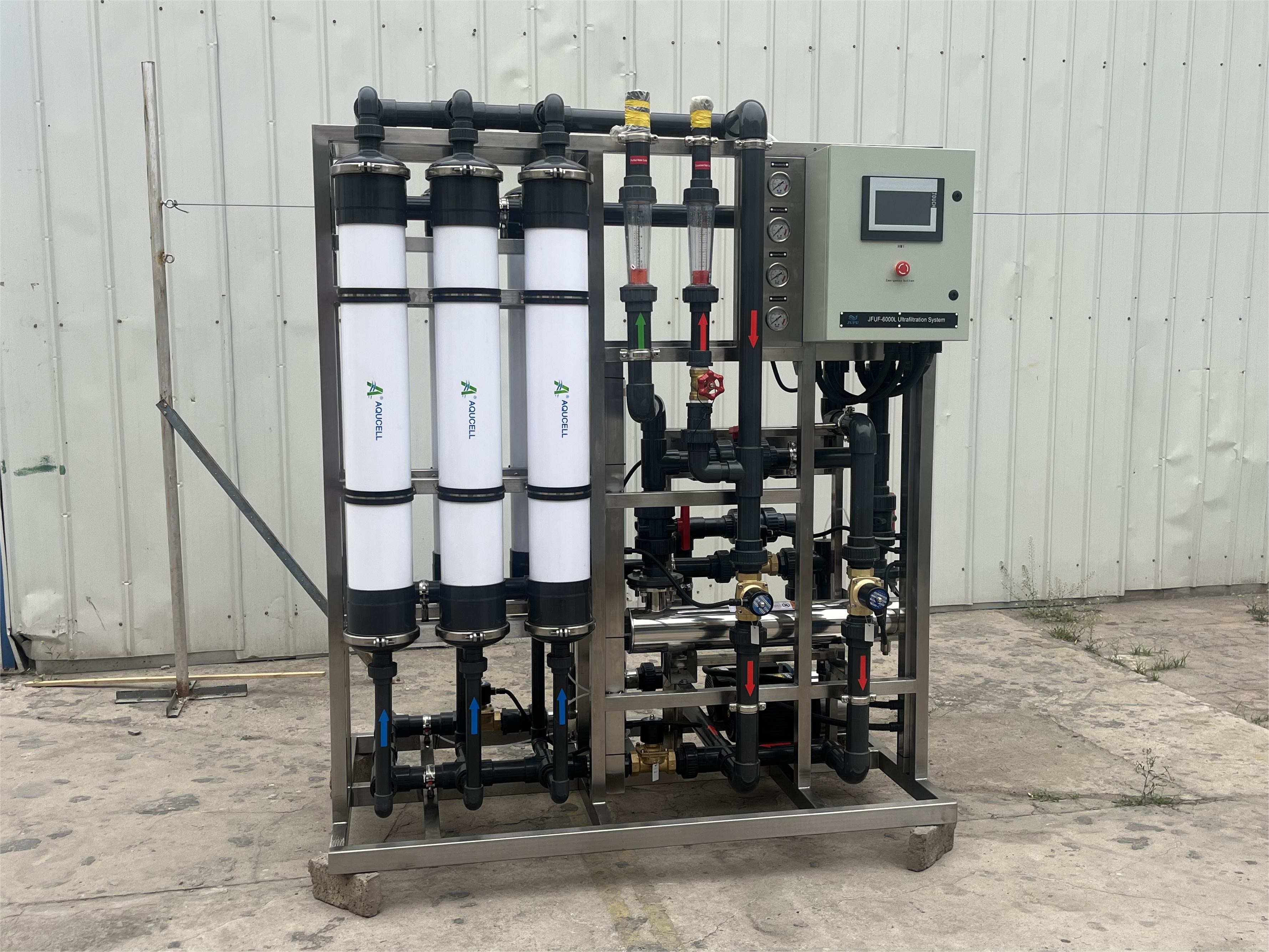

Photos display of Ultrafiltration Water Treatment System
FAQ:
1. What are the types of ultrafiltration membranes?
Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane
2. What is the operation mode of ultrafiltration membrane?
Operation mode: internal pressure type, external pressure type
3. What is the shell material of the ultrafiltration membrane?
Shell material: ABS, PVC, PMMA, stainless steel
